Overview

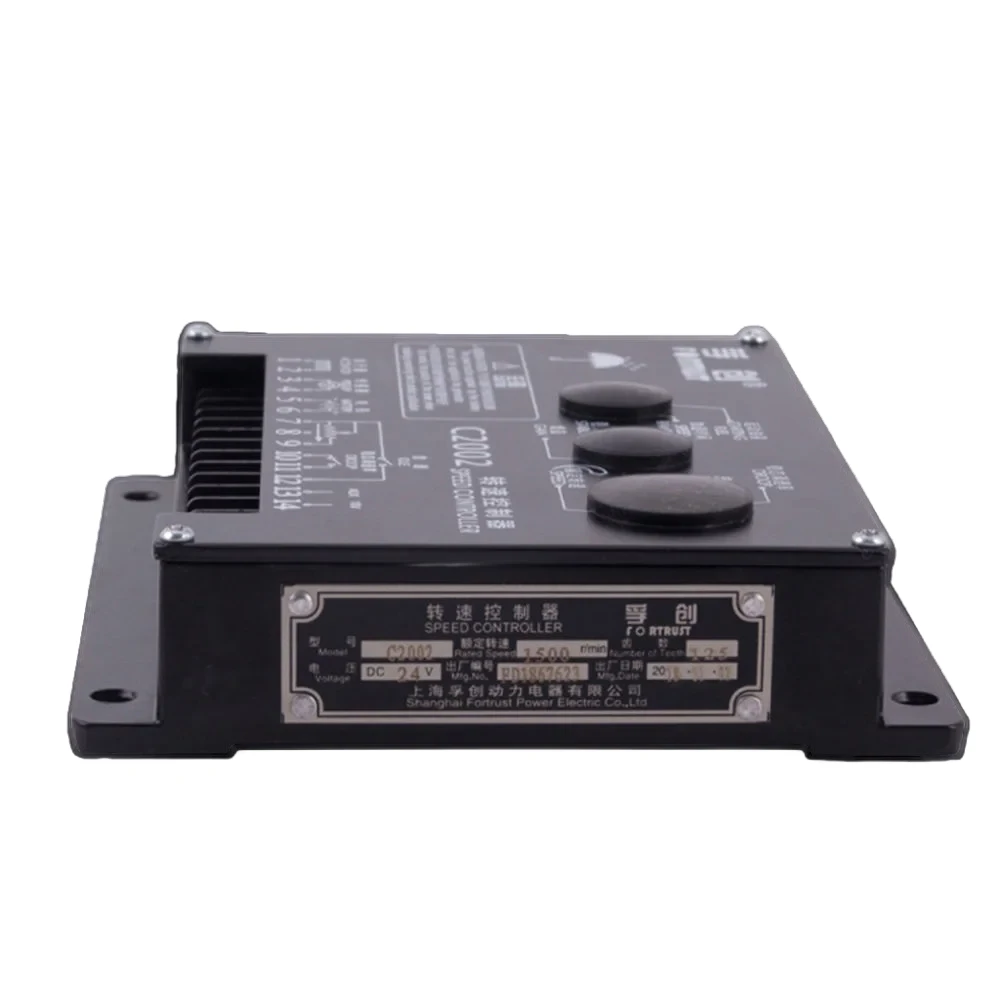

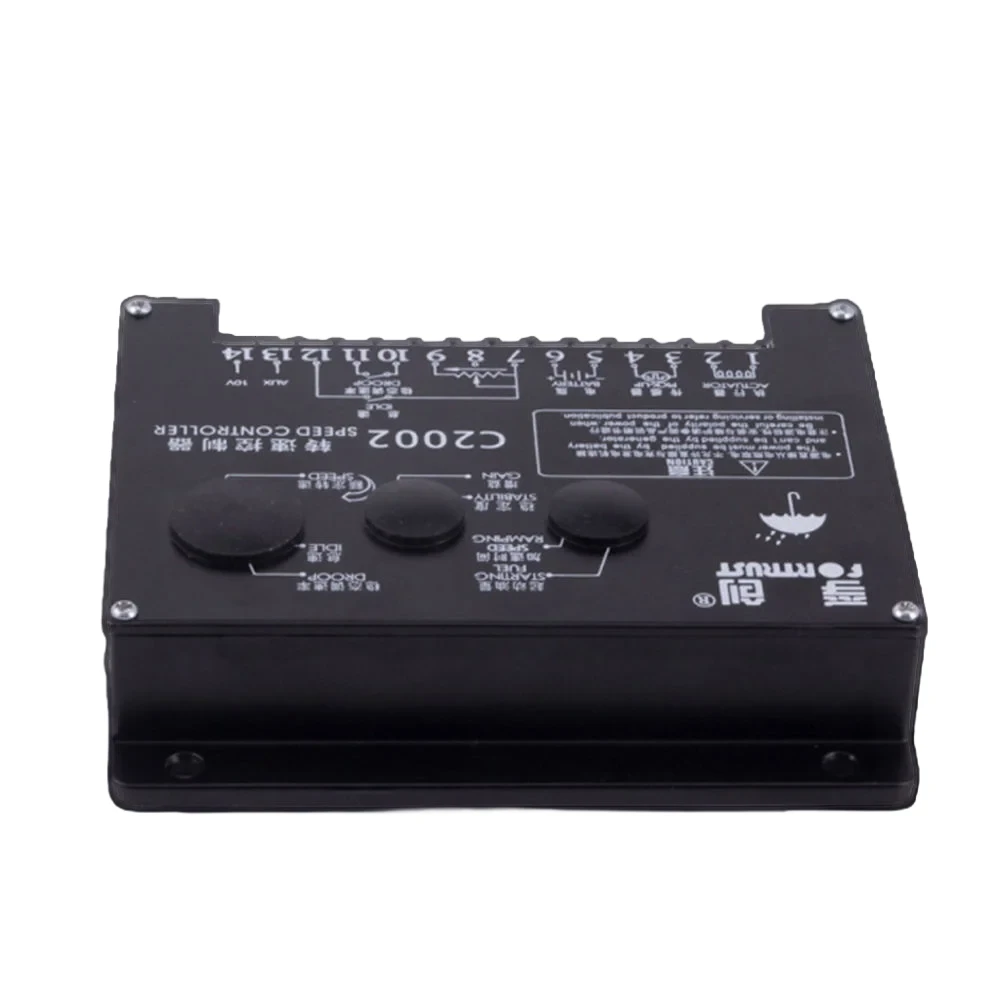

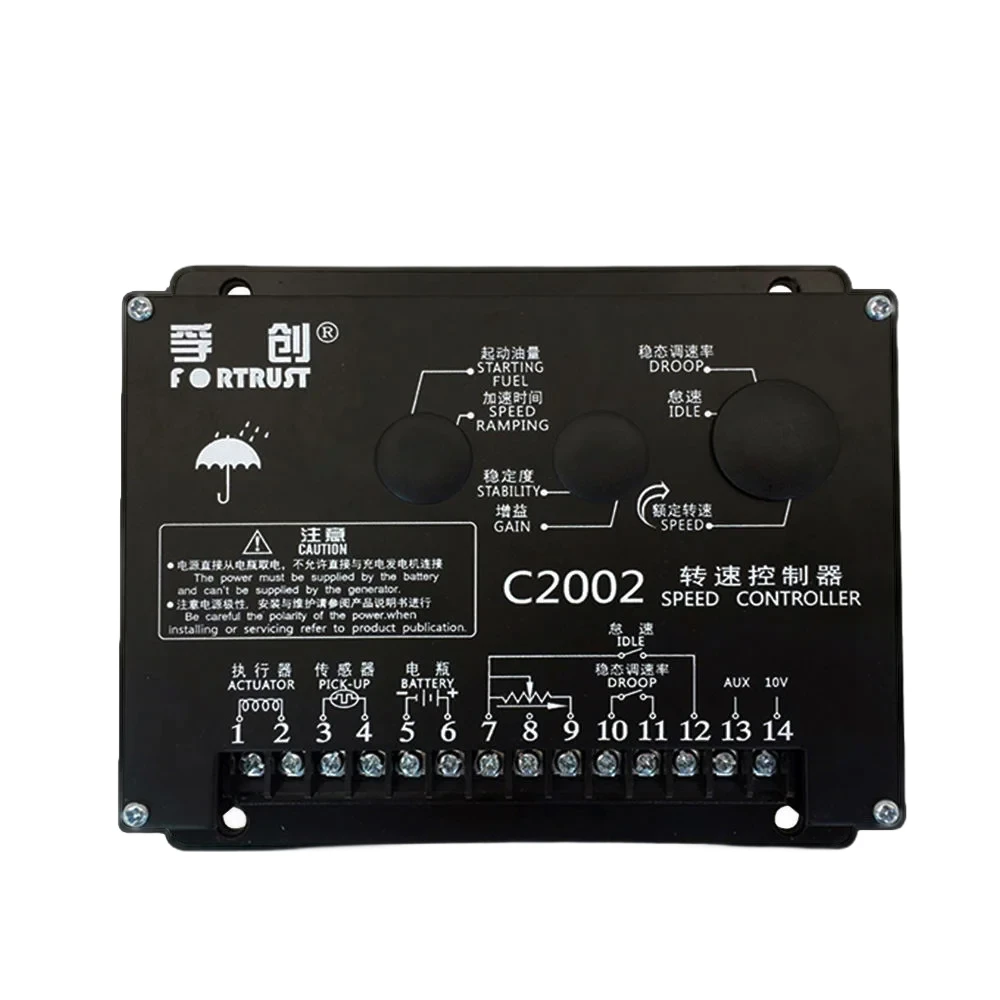

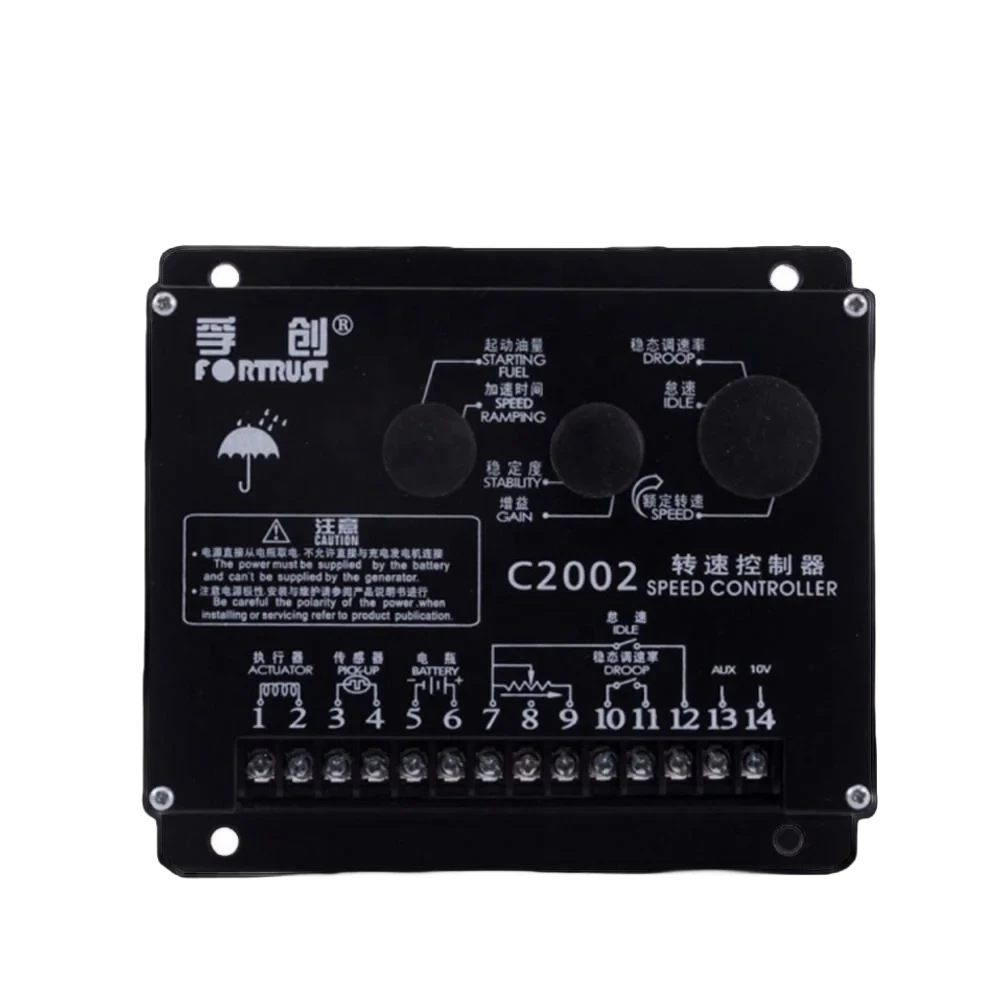

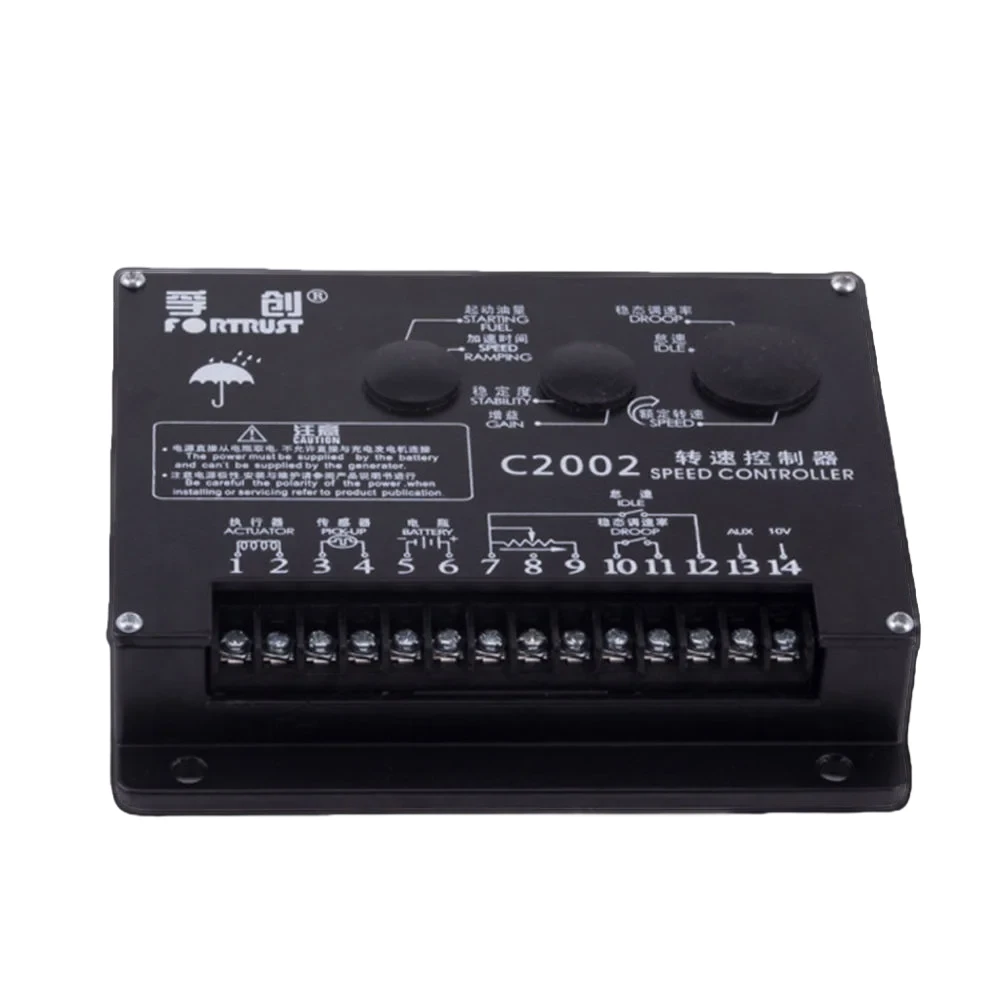

The C2002 is a Fortrust (孚创) EFC-series electronic speed governor for small-to-mid diesel gensets. It modulates the EFC actuator to maintain precise RPM and includes a soft-start ramp to reduce black-smoke emissions on crank.
Key Features
- 10A Continuous Output — High-current actuator drive for GAC ADC, Barber-Colman, and Woodward proportional actuators up to 10 lb-ft torque
- Overspeed Protection — Adjustable 1500Hz–7.5kHz threshold with 1.5-second delay and automatic fuel cutoff relay output
- Isochronous Speed Control — ±0.25% steady-state stability maintains constant engine RPM from no-load to full-load for precise generator frequency
- Magnetic Pickup Input — 600–9500Hz differential MPU sensing with noise rejection for reliable tachometer signal in electrically noisy generator enclosures
- Soft-Start Ramp — Programmable speed ramp eliminates startup smoke, reduces actuator current surge, and provides smooth engine acceleration
- 12/24V Dual Voltage — Auto-sensing 8–32V DC supply with reverse polarity protection for universal generator application
Technical Specifications
| Parameter | Value |
|---|---|
| ———– | ——- |
| Model | C2002 |
| Brand | Fortrust (孚创) |
| Type | Electronic Speed Governor (EFC) |
| Speed Stability | ±0.25% |
| Speed Sensor Input | 2–120 V RMS |
| Actuator Output | Max 1 A |
| Control Mode | Droop adjustable (1–5%) |
| Power Consumption | <0.1 A (excluding actuator) |
| Supply Voltage | DC24V (18–32V) or DC12V (9–16V) |
| Application | Cummins diesel genset (EFC) |
Compatibility
Compatible with Cummins NTA855, 6CT, 6BT, 4BT series engines using EFC actuators. Also works with Fortrust governor systems.
Why Choose ZenixPower
- Soft-Start Ramp — Reduces black-smoke on engine crank
- Reverse Polarity Protected — Survives accidental battery reversal
- Conformal Coating — Humidity and fungus resistant
Competitors GAC ESD5500E — world’s most popular universal governor | KUTAI EG3000 — value alternative | Fortrust C2002 — budget-friendly
Specification Comparison
| Parameter | C2002 | GAC ESD5500E | KUTAI EG3000 | Cummins 3037359 |
|---|---|---|---|---|
| Brand | Fortrust (China) | GAC (USA) | KUTAI (Taiwan) | Fortrust (China) |
| Function | Electronic Speed Governor (EFC) | Electronic + Overspeed | Closed-loop Electronic | Electronic + Soft-Start |
| DC Supply | — | 12/24V DC | 12/24V DC | 12/24V DC |
| Actuator Output | Max 1 A | 10A continuous | 0.5–15A | 10A max |
| Speed Stability | ±0.25% | ±0.25% | ±0.5% | ±0.25% |
| Speed Range | — | 600–9500 Hz | 600–9500 Hz | 500–9000 Hz |
| Overspeed Protection | Built-in | Built-in | Optional | Built-in |
| Paralleling | No | Optional | No | No |
| Price | Contact Us | $280–450 | $180–300 | $120–220 |
