Overview

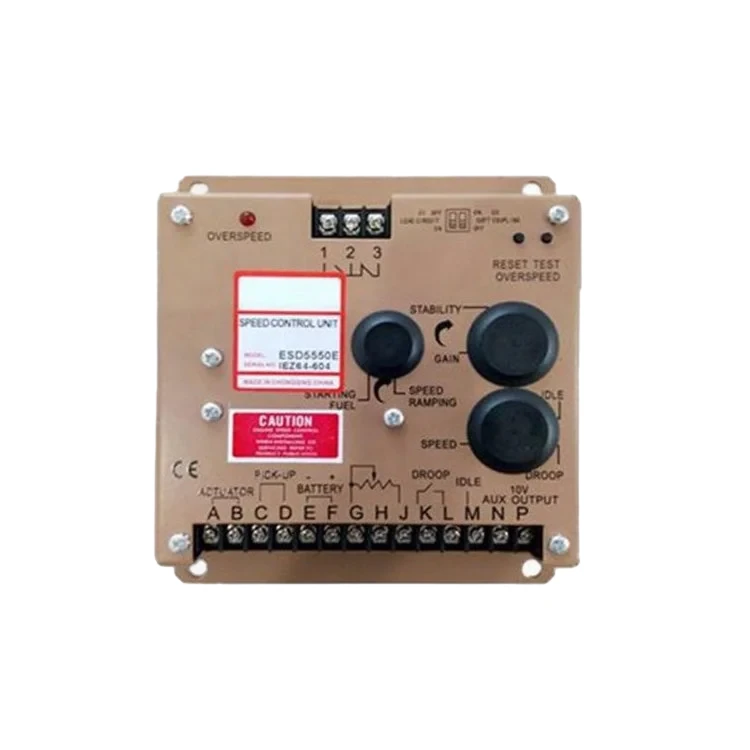

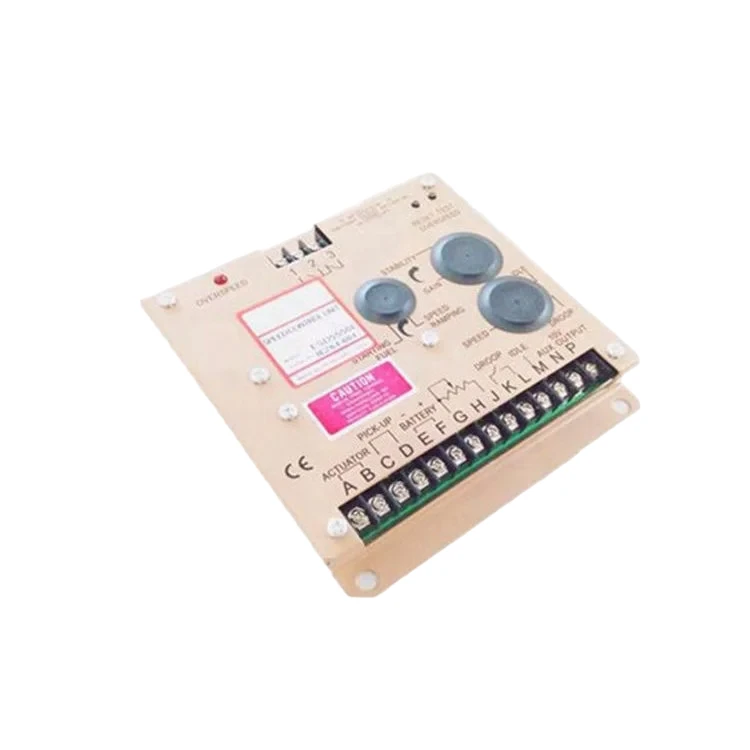

The ESD5550E is a GAC ESD5500-series electronic closed-loop speed governor (enhanced variant of ESD5500E) delivering up to 10 A continuous actuator current. Designed for Cummins EFC actuators with built-in overspeed protection and advanced PID control for demanding diesel/gas engine applications.
Key Features
- 10A Continuous Output — High-current actuator drive for GAC ADC, Barber-Colman, and Woodward proportional actuators up to 10 lb-ft torque
- Overspeed Protection — Adjustable 1500Hz–7.5kHz threshold with 1.5-second delay and automatic fuel cutoff relay output
- Isochronous Speed Control — ±0.25% steady-state stability maintains constant engine RPM from no-load to full-load for precise generator frequency
- Magnetic Pickup Input — 600–9500Hz differential MPU sensing with noise rejection for reliable tachometer signal in electrically noisy generator enclosures
- Soft-Start Ramp — Programmable speed ramp eliminates startup smoke, reduces actuator current surge, and provides smooth engine acceleration
- 12/24V Dual Voltage — Auto-sensing 8–32V DC supply with reverse polarity protection for universal generator application
Technical Specifications
| Parameter | Value |
|---|---|
| ———– | ——- |
| Model | ESD5550E |
| Brand | GAC |
| Type | Electronic Closed-Loop Speed Governor (EFC Optimised, with Overspeed) |
| Control Mode | Isochronous / Droop adjustable (1–5%) |
| Speed Stability | ±0.25% |
| Speed Range | 1K–7.5K Hz continuous |
| Speed Signal Range | 0.5–120 V RMS |
| Actuator Output | Min 2.5 A; Max 10 A continuous |
| Power Consumption | 50 mA + actuator current |
| Supply Voltage | 12 / 24 V DC ±20% (reverse-polarity protected) |
| Idle Adjust | 160±20 Hz ~ 95% of rated speed |
| Droop Adjust | Min 15Hz±6Hz / Max 400Hz±75Hz per 1A |
| Start Fuel Adjust | 160±20 Hz ~ 70% of rated speed |
| Ramp Time | 1.5–20 Sec |
| Overspeed Protection | 1500Hz–7.5kHz, 1.5Sec delay |
| Application | GAC Speed Governor ESD5550E |
Compatibility
Compatible with GAC, Fortrust, KUTAI, and Cummins EFC governor systems.
Why Choose ZenixPower
- 10 A Continuous — Drives large proportional actuators
- Overspeed Protection — Engine safety shutdown on overspeed
- EFC Optimised — Correct tuning for Cummins EFC actuators
- PID Tuning — Independent Gain, Stability, Speed Ramp
- Reverse Polarity Protected — Survives accidental battery reversal
- Drop-In Upgrade — Same footprint as GAC ESD / Fortrust ESG / Cummins EFC
Competitors GAC ESD5500E — world’s most popular universal governor | KUTAI EG3000 — value alternative | Fortrust C2002 — budget-friendly
Specification Comparison
| Parameter | ESD5550E | GAC ESD5500E | KUTAI EG3000 | Fortrust C2002 |
|---|---|---|---|---|
| Brand | GAC (USA) | GAC (USA) | KUTAI (Taiwan) | Fortrust (China) |
| Function | Electronic Closed-Loop Speed Governor (EFC Optimised, with Overspeed) | Electronic + Overspeed | Closed-loop Electronic | Electronic + Soft-Start |
| DC Supply | — | 12/24V DC | 12/24V DC | 12/24V DC |
| Actuator Output | Min 2.5 A; Max 10 A continuous | 10A continuous | 0.5–15A | 10A max |
| Speed Stability | ±0.25% | ±0.25% | ±0.5% | ±0.25% |
| Speed Range | 1K–7.5K Hz continuous | 600–9500 Hz | 600–9500 Hz | 500–9000 Hz |
| Overspeed Protection | Built-in | Built-in | Optional | Built-in |
| Paralleling | No | Optional | No | No |
| Price | Contact Us | $280–450 | $180–300 | $120–220 |
