Overview

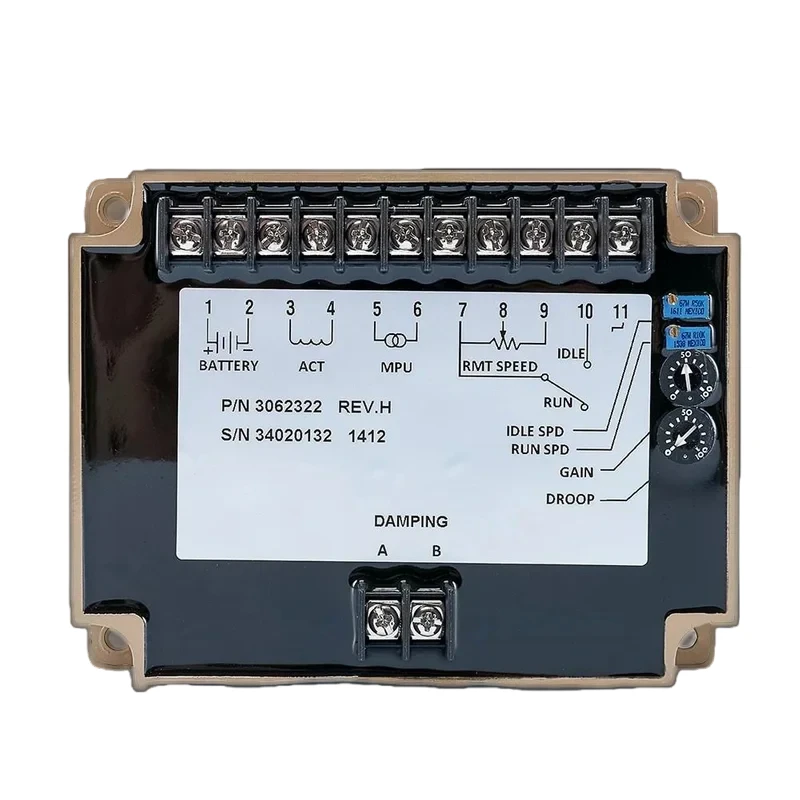

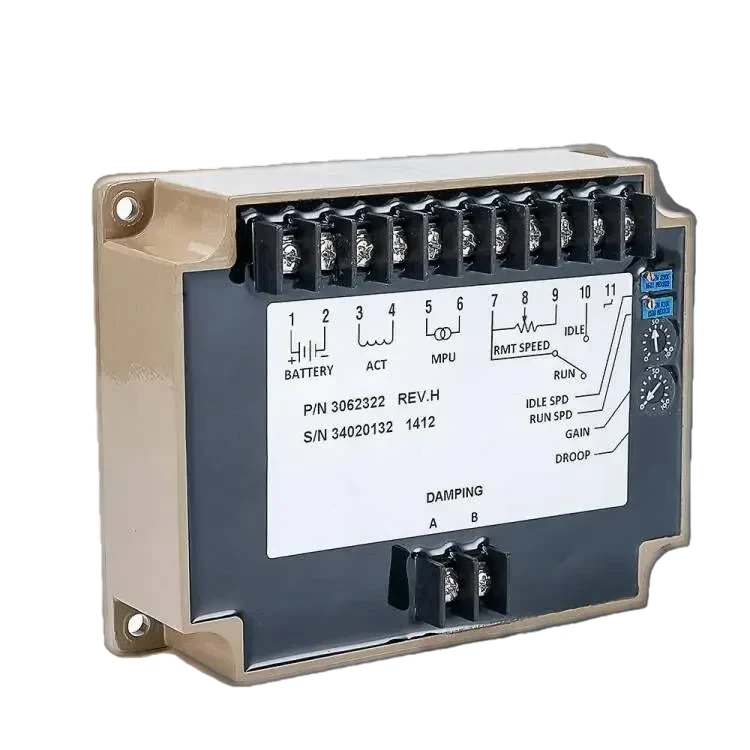

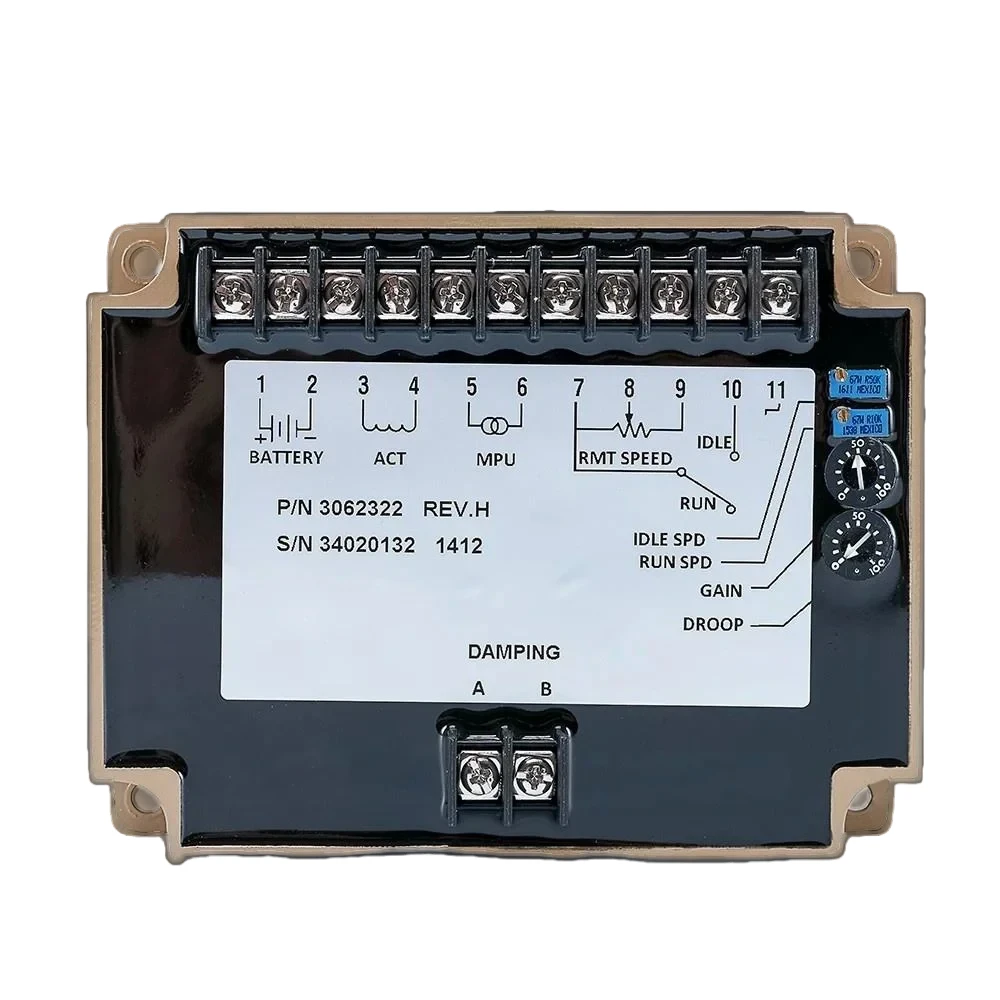

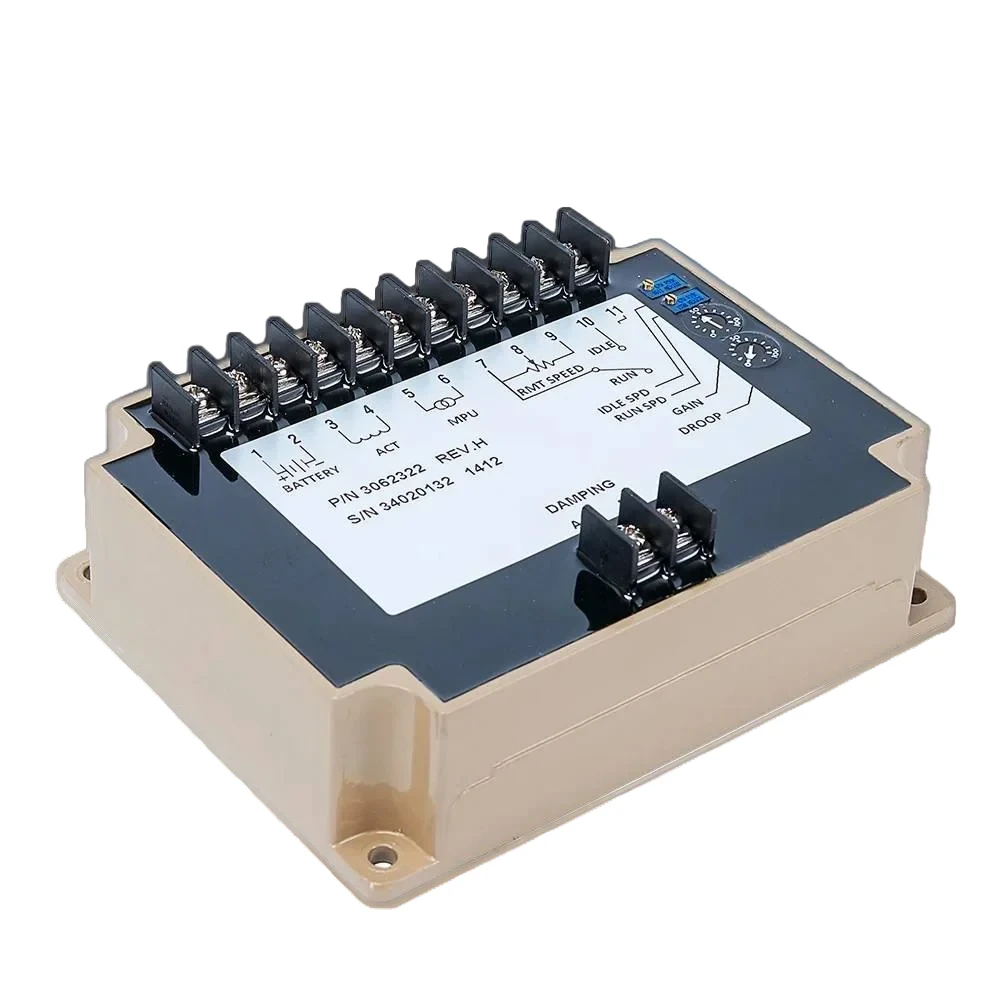

The 3062322 is a high-power Cummins EFC-series electronic speed governor for large diesel engines (KTA19, KTA38, KTA50, QSK60). It drives high-current EFC actuators and is built for prime power plants, marine, and heavy industrial applications. This is the high-current variant of 3044196, capable of driving 500kW+ engines.
Key Features
- High-Power Output — Drives actuators up to 15A continuous for large fuel injection pumps on Cummins KTA38, KTA50, and QSK series engines
- Magnetic Pickup Speed Sensing — 600–9500Hz MPU input range with differential noise rejection for reliable RPM measurement
- Overspeed Shutdown — Configurable RPM threshold (1500–7500Hz) with <1.5 second response for large engine protection
- Soft-Start Acceleration — Programmable ramp rate prevents fuel over-fueling and black smoke during cold engine starts
- 24V DC Primary — Optimized for heavy-duty 24V generator electrical systems with surge protection to 32V
- Direct OEM Replacement — Drop-in replacement for Cummins 3062322 high-power EFC electronic speed governor
Technical Specifications
| Parameter | Value |
|---|---|
| ———– | ——- |
| Model | 3062322 |
| Brand | Cummins EFC |
| Type | Electronic Speed Governor (EFC, High-Power) |
| Speed Stability | ±0.25% |
| Speed Sensor Input | 2–120 V RMS |
| Actuator Output | Min 1 A; Max 8 A |
| Control Mode | Droop adjustable (1–5%) |
| Power Consumption | 40 mA (excluding actuator) |
| Supply Voltage | 12V / 24V DC, Negative Ground |
| Application | Cummins KTA19/KTA38/KTA50/QSK60 (>500kW) |
Compatibility
Compatible with Cummins KTA19, KTA38, KTA50, QSK60 series large diesel engines using EFC actuators.
Why Choose ZenixPower
- 8 A Actuator Drive — Handles large EFC actuators for big-bore engines
- Reverse Polarity Protected — Survives accidental battery reversal
- Industrial Grade — Conformal coating for harsh environments
Competitors GAC ESD5330 — large engine specialist | GAC S6700E — advanced paralleling | KUTAI EG3000 — universal
Specification Comparison
| Parameter | 3062322 | GAC ESD5330 | GAC S6700E | KUTAI EG3000 |
|---|---|---|---|---|
| Brand | Cummins (USA) | GAC (USA) | GAC (USA) | KUTAI (Taiwan) |
| Function | Electronic Speed Governor (EFC, High-Power) | Large Engine Electronic | Advanced + Paralleling | Universal Closed-Loop |
| DC Supply | — | 24V DC | 24V DC | 12/24V DC |
| Actuator Output | Min 1 A; Max 8 A | 10A continuous | 2.5–10A | 0.5–15A |
| Speed Stability | ±0.25% | ±0.25% | ±0.25% | ±0.5% |
| Overspeed Protection | Built-in | Built-in (1.5s) | Built-in (1.5s) | Optional |
| Paralleling | No | Optional | Built-in load sharing | No |
| Self-Diagnostics | No | No | Built-in | No |
| Price | Contact Us | $350–550 | $500–800 | $180–300 |
