Overview

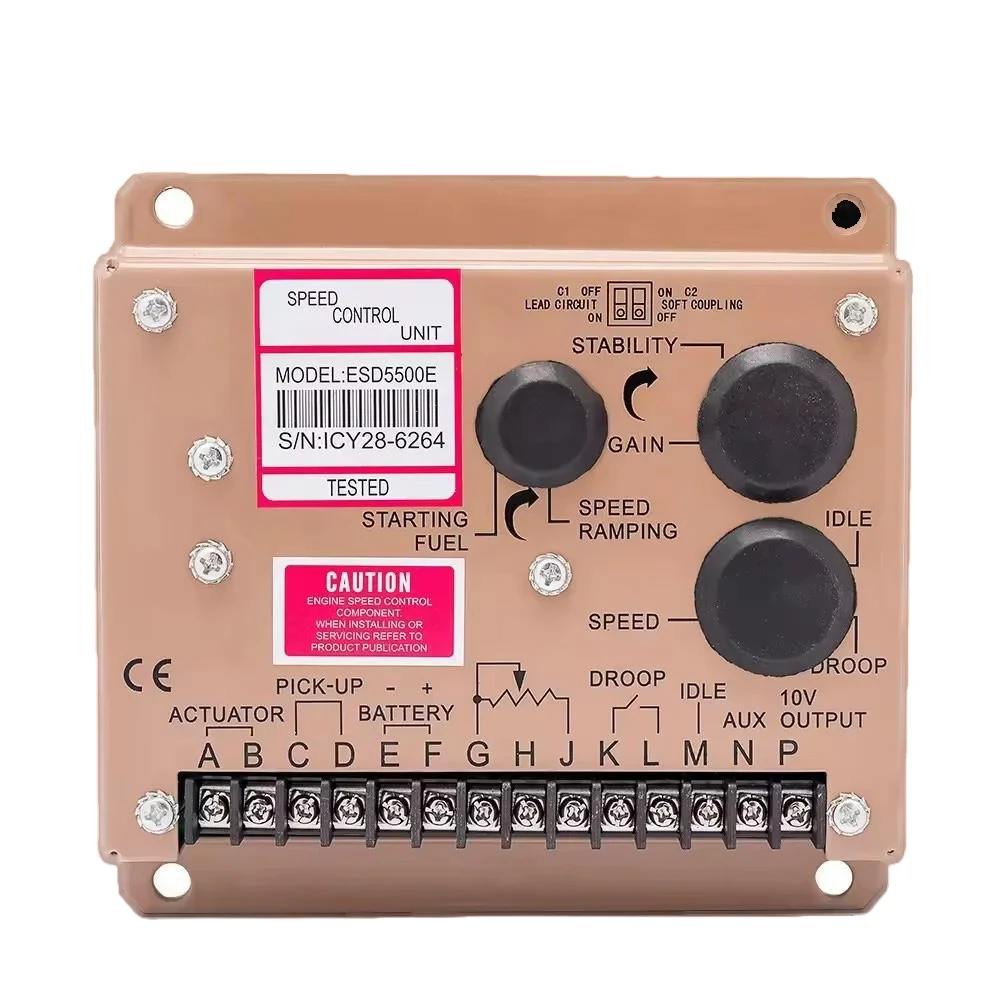

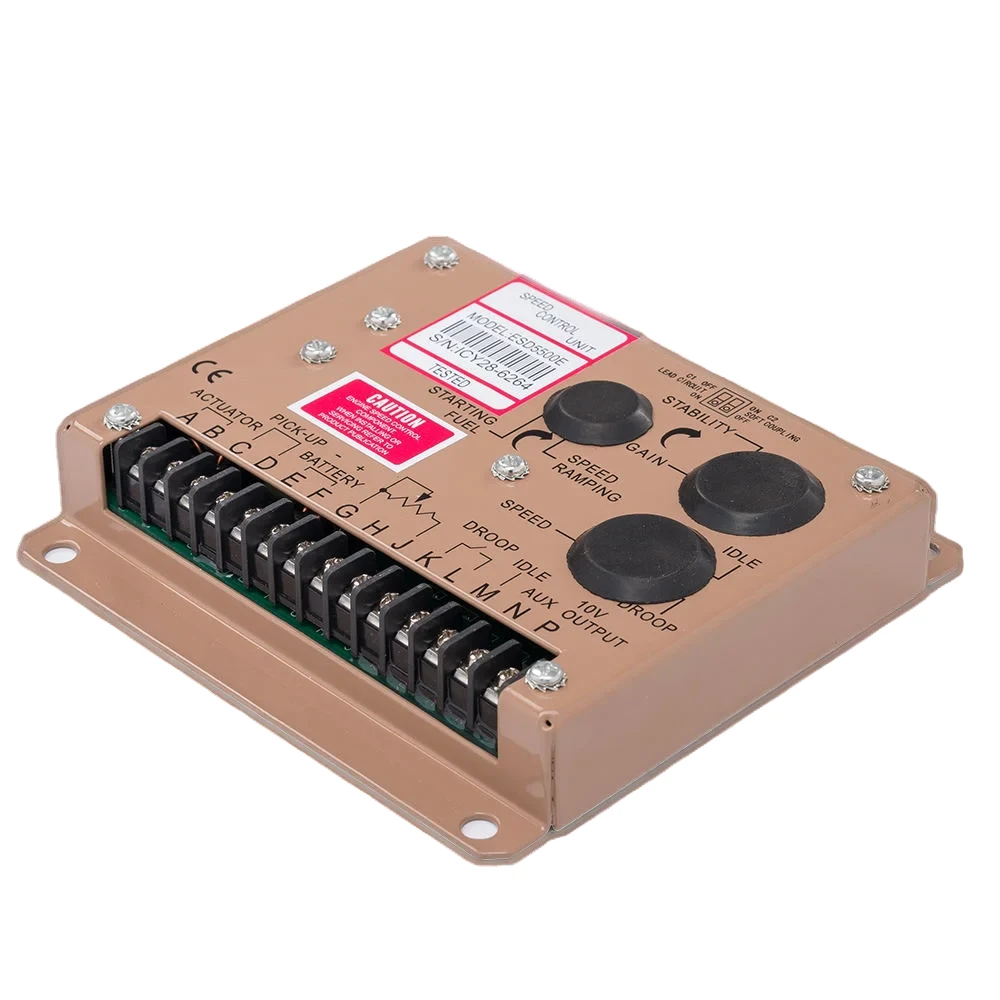

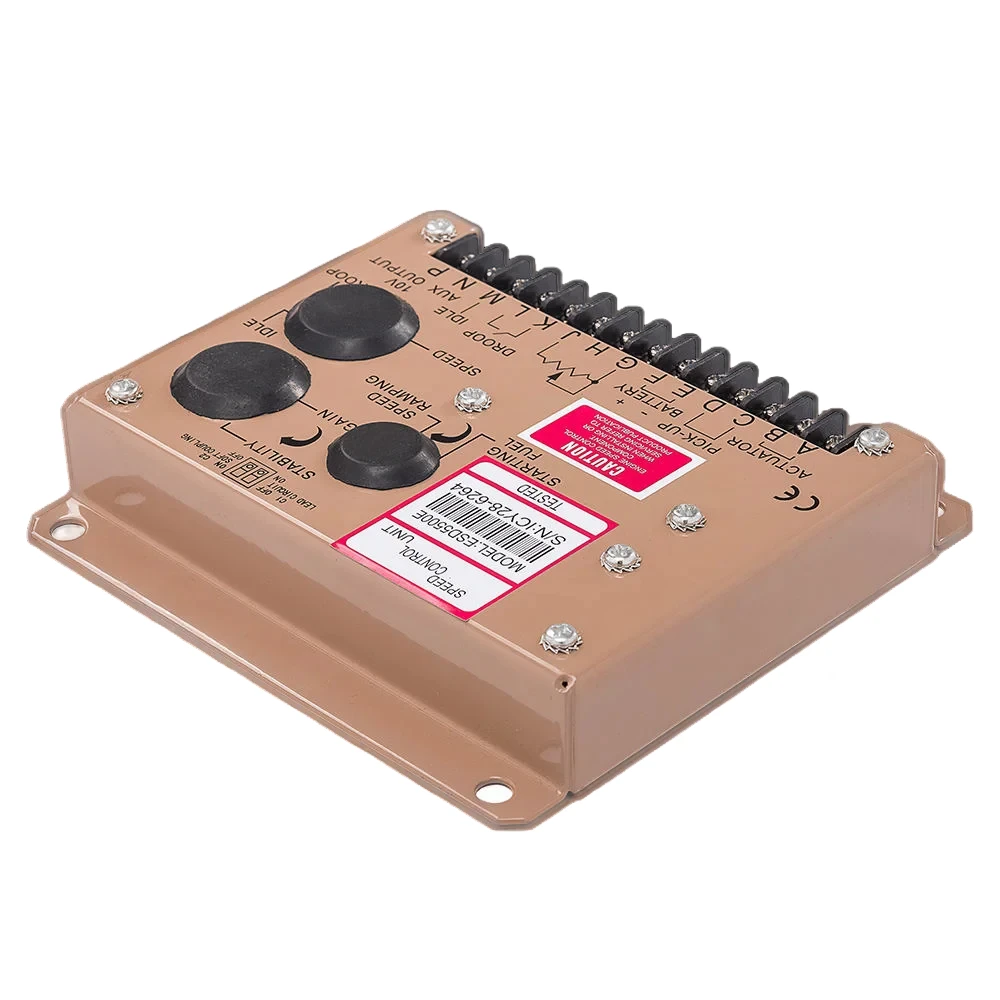

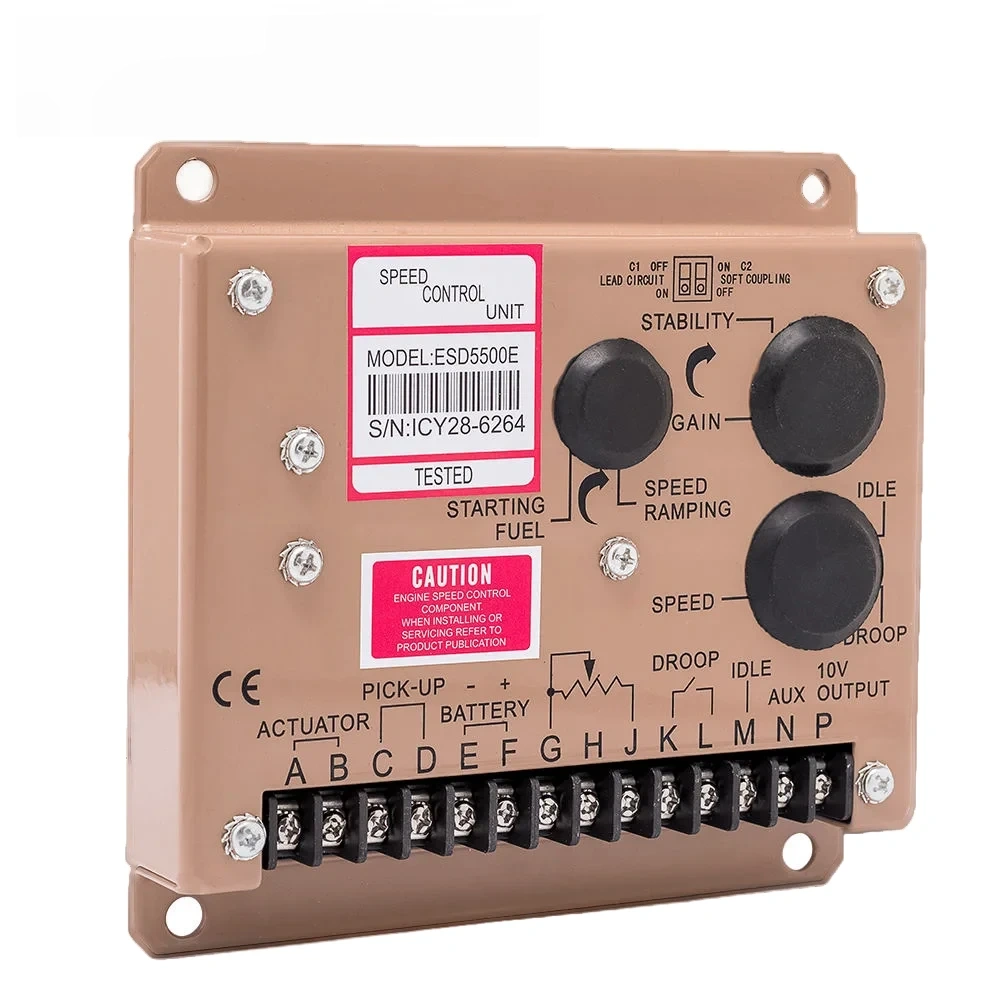

The ESD5500E is a GAC ESD5500-series electronic closed-loop speed governor delivering up to 10 A continuous actuator current for demanding diesel and gas engine applications. Based on ESD5111 with added Overspeed Protection that shuts down the engine when MPU frequency exceeds the set threshold.
Key Features
- 10A Continuous Output — High-current actuator drive for GAC ADC, Barber-Colman, and Woodward proportional actuators up to 10 lb-ft torque
- Overspeed Protection — Adjustable 1500Hz–7.5kHz threshold with 1.5-second delay and automatic fuel cutoff relay output
- Isochronous Speed Control — ±0.25% steady-state stability maintains constant engine RPM from no-load to full-load for precise generator frequency
- Magnetic Pickup Input — 600–9500Hz differential MPU sensing with noise rejection for reliable tachometer signal in electrically noisy generator enclosures
- Soft-Start Ramp — Programmable speed ramp eliminates startup smoke, reduces actuator current surge, and provides smooth engine acceleration
- 12/24V Dual Voltage — Auto-sensing 8–32V DC supply with reverse polarity protection for universal generator application
Technical Specifications
| Parameter | Value |
|---|---|
| ———– | ——- |
| Model | ESD5500E |
| Brand | GAC |
| Type | Electronic Closed-Loop Speed Governor (with Overspeed Protection) |
| Control Mode | Isochronous / Droop adjustable (1–5%) |
| Speed Stability | ±0.25% |
| Speed Range | 1K–7.5K Hz continuous |
| Speed Signal Range | 0.5–120 V RMS |
| Actuator Output | Min 2.5 A; Max 10 A continuous |
| Power Consumption | 50 mA + actuator current |
| Supply Voltage | 12 / 24 V DC ±20% (reverse-polarity protected) |
| Idle Adjust | 160±20 Hz ~ 95% of rated speed |
| Droop Adjust | Min 15Hz±6Hz / Max 400Hz±75Hz per 1A |
| Start Fuel Adjust | 160±20 Hz ~ 70% of rated speed |
| Ramp Time | 1.5–20 Sec |
| Overspeed Protection | 1500Hz–7.5kHz, 1.5Sec delay |
| Application | GAC Speed Control Unit ESD5500E |
Compatibility
Compatible with GAC, Fortrust, KUTAI, and Cummins EFC governor systems.
Why Choose ZenixPower
- 10 A Continuous — Drives large proportional actuators
- Overspeed Protection — Engine shutdown on overspeed condition
- Isochronous + Droop — Selectable mode
- PID Tuning — Independent Gain, Stability, Speed Ramp
- Reverse Polarity Protected — Survives accidental battery reversal
- Drop-In Upgrade — Same footprint as GAC ESD / Fortrust ESG / Cummins EFC
Competitors GAC ESD5500E — world’s most popular universal governor | KUTAI EG3000 — value alternative | Fortrust C2002 — budget-friendly
Specification Comparison
| Parameter | ESD5500E | Cummins 3037359 | KUTAI EG3000 | Fortrust C2002 |
|---|---|---|---|---|
| Brand | GAC (USA) | GAC (USA) | KUTAI (Taiwan) | Fortrust (China) |
| Function | Electronic Closed-Loop Speed Governor (with Overspeed Protection) | Electronic + Overspeed | Closed-loop Electronic | Electronic + Soft-Start |
| DC Supply | — | 12/24V DC | 12/24V DC | 12/24V DC |
| Actuator Output | Min 2.5 A; Max 10 A continuous | 10A continuous | 0.5–15A | 10A max |
| Speed Stability | ±0.25% | ±0.25% | ±0.5% | ±0.25% |
| Speed Range | 1K–7.5K Hz continuous | 600–9500 Hz | 600–9500 Hz | 500–9000 Hz |
| Overspeed Protection | Built-in | Built-in | Optional | Built-in |
| Paralleling | No | Optional | No | No |
| Price | Contact Us | $280–450 | $180–300 | $120–220 |
