Overview

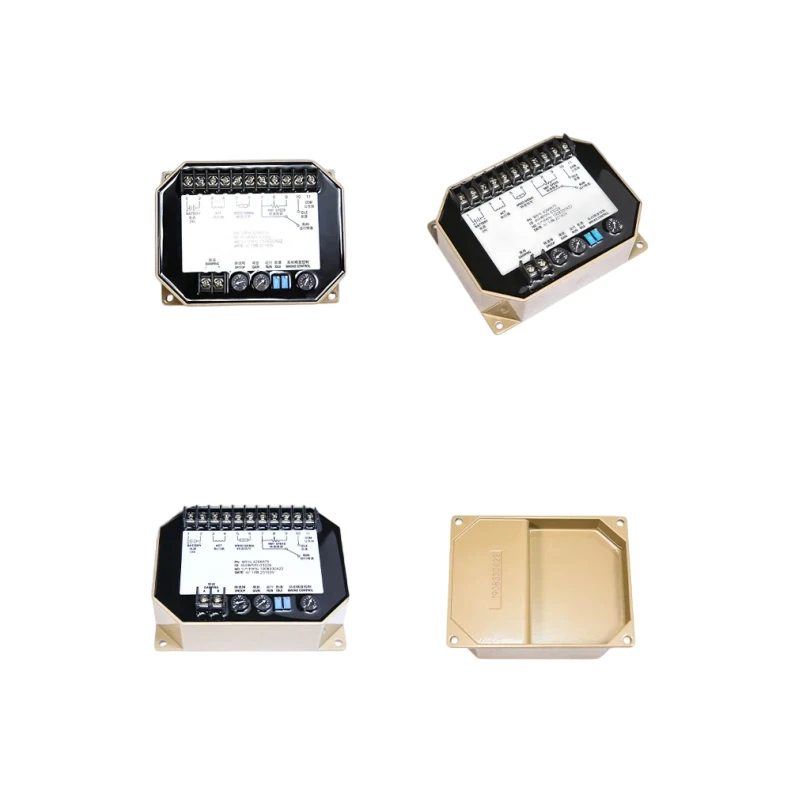

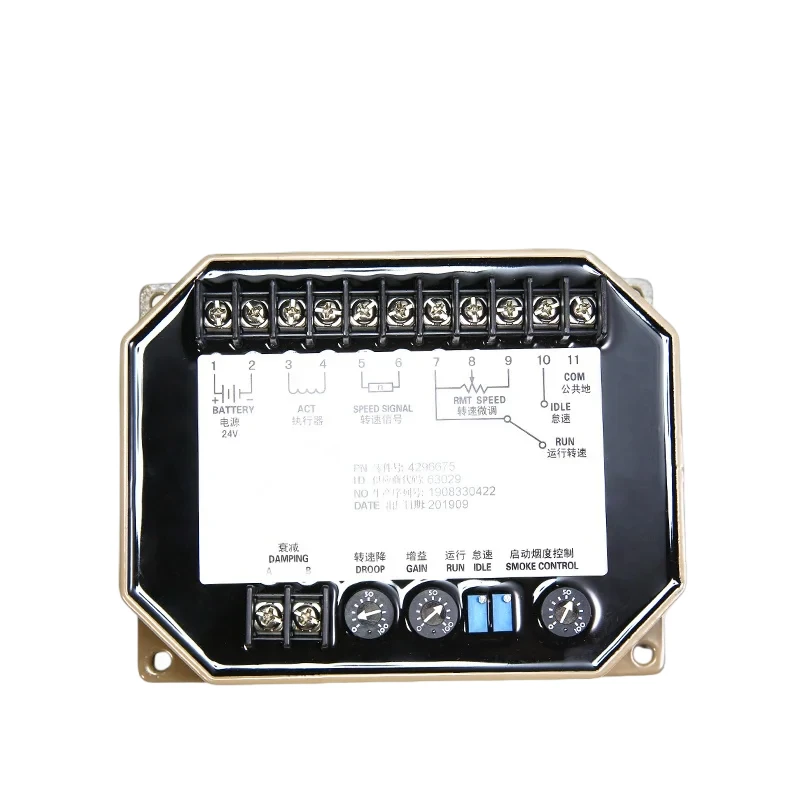

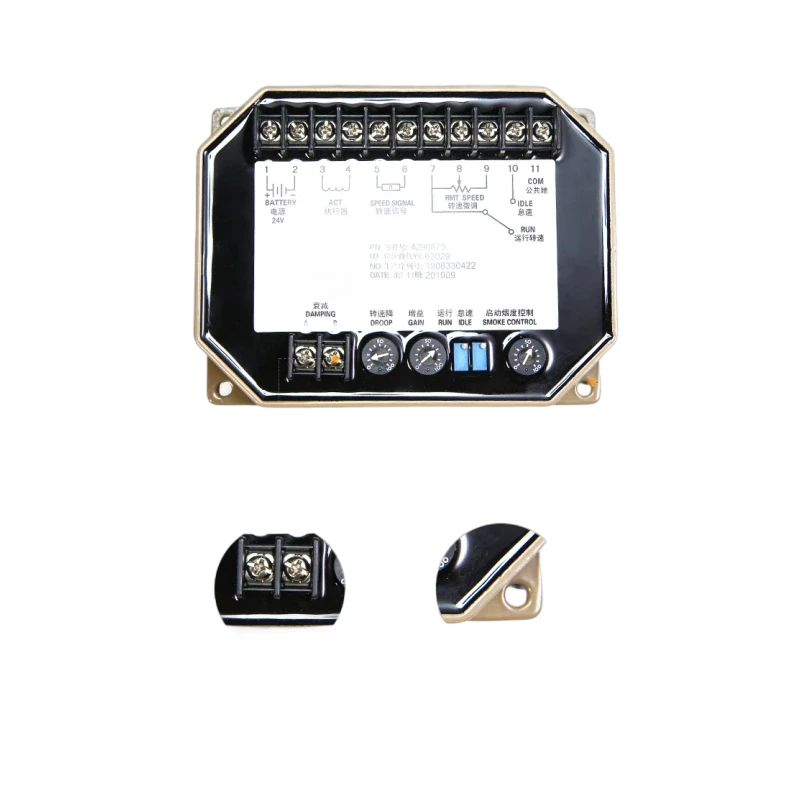

The 4296675 is a high-power Cummins EFC-series electronic speed governor for K19 and KV38 large diesel engines. It drives high-current EFC actuators and is built for prime-power and continuous-duty applications in power plants and heavy industry.
Key Features
- 8A High-Current Output — Drives larger EFC actuators and high-torque fuel pumps found on Cummins KTA38, KTA50, and QSK series engines
- 16–32V DC Power — Optimized for 24V heavy-duty generator electrical systems with low-voltage transient ride-through
- Overspeed Protection — Configurable RPM threshold (1500–7500Hz) with 1.5-second delay prevents engine runaway
- Soft-Start Ramp — Smooth engine acceleration limits startup current draw and reduces visible exhaust smoke
- MPU Signal Diagnostics — LED status indication for magnetic pickup signal quality simplifies installation and troubleshooting
- Direct OEM Replacement — Form/fit/function identical to Cummins 4296675 EFC governor unit
Technical Specifications
| Parameter | Value |
|---|---|
| ———– | ——- |
| Model | 4296675 |
| Brand | Cummins EFC |
| Type | Electronic Speed Governor (EFC, High-Power) |
| Speed Stability | ±0.25% |
| Speed Sensor Input | 2–120 V RMS |
| Actuator Output | Max 8 A |
| Control Mode | Droop adjustable (1–5%) |
| Power Consumption | 40 mA (excluding actuator) |
| Supply Voltage | 12V / 24V DC, Negative Ground |
| Application | Cummins K19/KV38 |
Compatibility
Compatible with Cummins K19, KV38 series large diesel engines using EFC actuators.
Why Choose ZenixPower
- 8 A Actuator Drive — Handles large EFC actuators
- Reverse Polarity Protected — Survives accidental battery reversal
- Industrial Grade — Conformal coating for harsh environments
Competitors GAC ESD5330 — large engine specialist | GAC S6700E — advanced paralleling | KUTAI EG3000 — universal
Specification Comparison
| Parameter | 4296675 | GAC ESD5330 | GAC S6700E | KUTAI EG3000 |
|---|---|---|---|---|
| Brand | Cummins (USA) | GAC (USA) | GAC (USA) | KUTAI (Taiwan) |
| Function | Electronic Speed Governor (EFC, High-Power) | Large Engine Electronic | Advanced + Paralleling | Universal Closed-Loop |
| DC Supply | — | 24V DC | 24V DC | 12/24V DC |
| Actuator Output | Max 8 A | 10A continuous | 2.5–10A | 0.5–15A |
| Speed Stability | ±0.25% | ±0.25% | ±0.25% | ±0.5% |
| Overspeed Protection | Built-in | Built-in (1.5s) | Built-in (1.5s) | Optional |
| Paralleling | No | Optional | Built-in load sharing | No |
| Self-Diagnostics | No | No | Built-in | No |
| Price | Contact Us | $350–550 | $500–800 | $180–300 |
