Overview

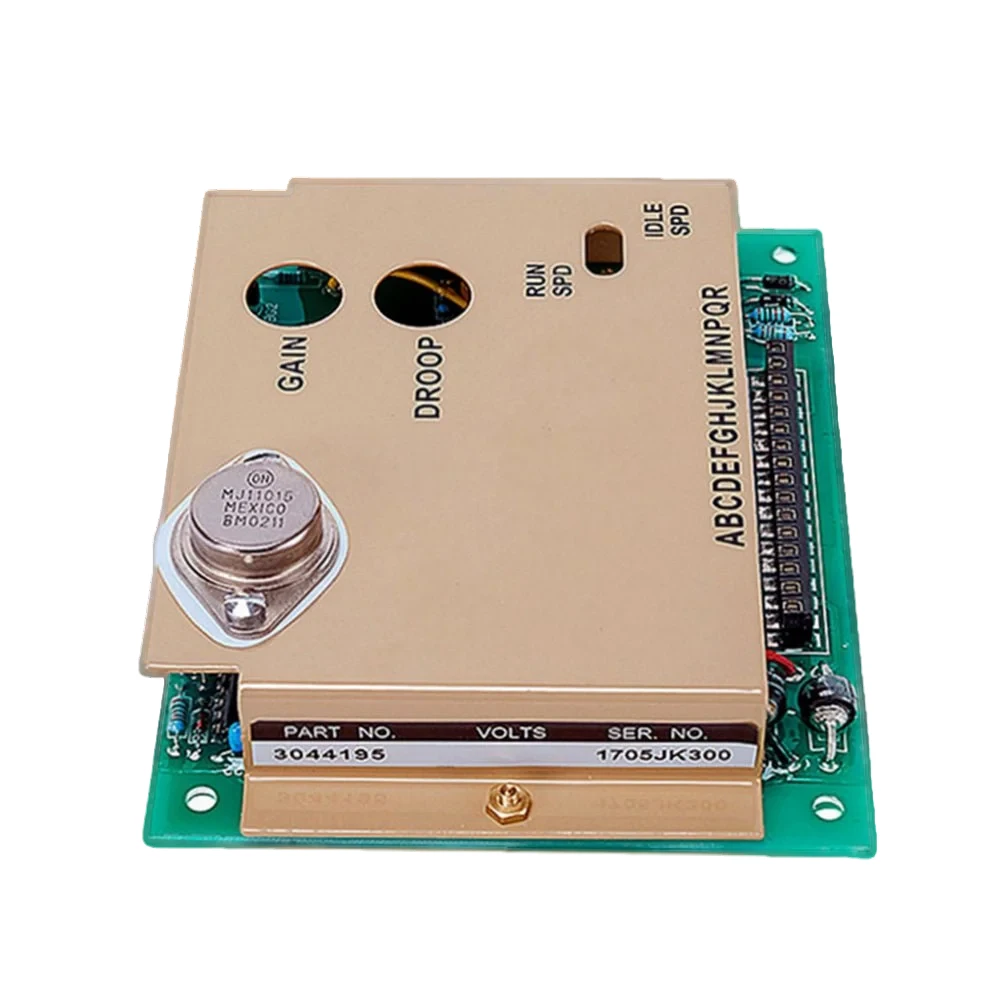

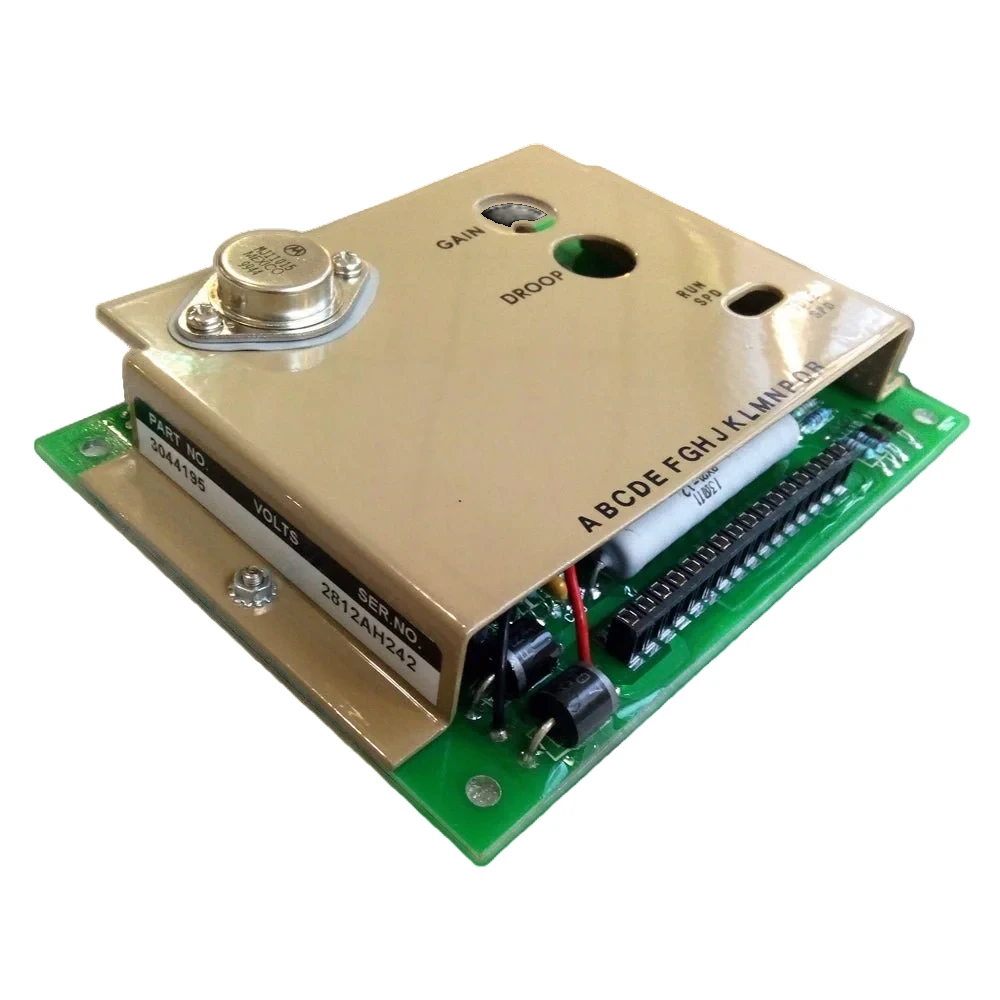

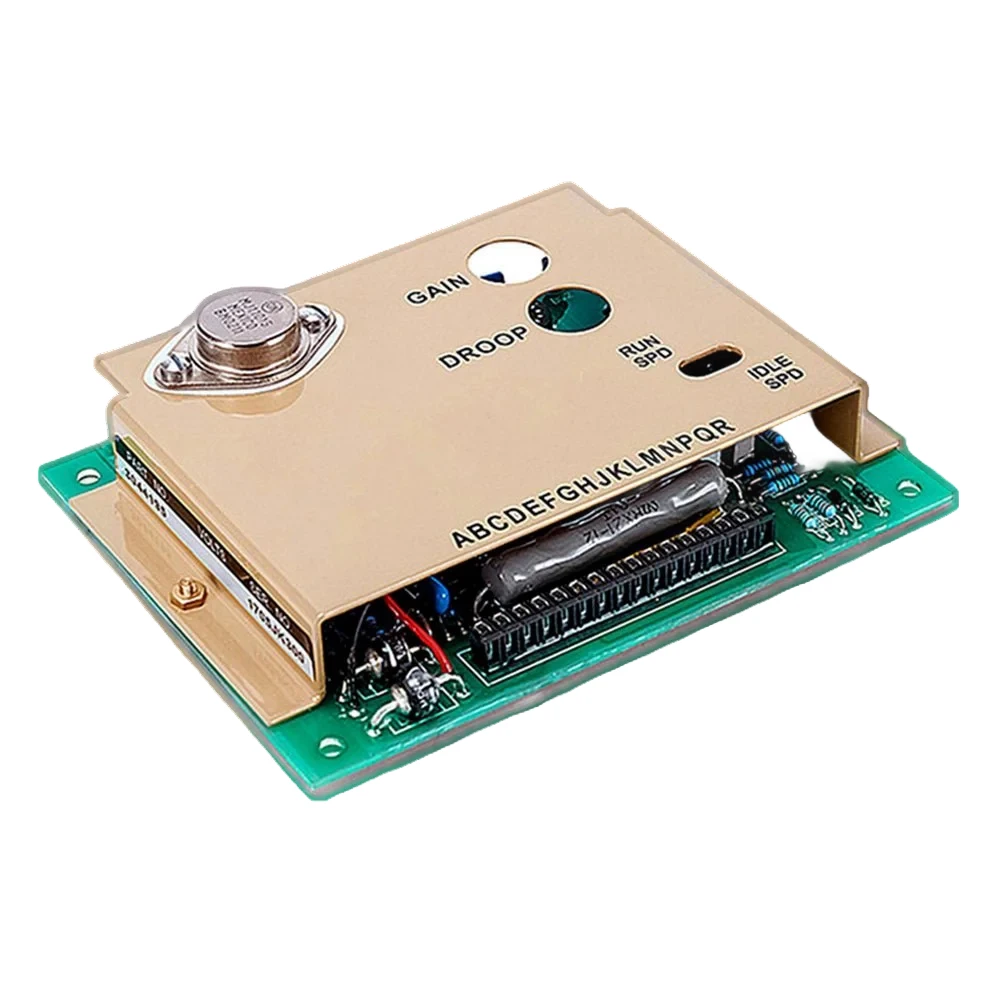

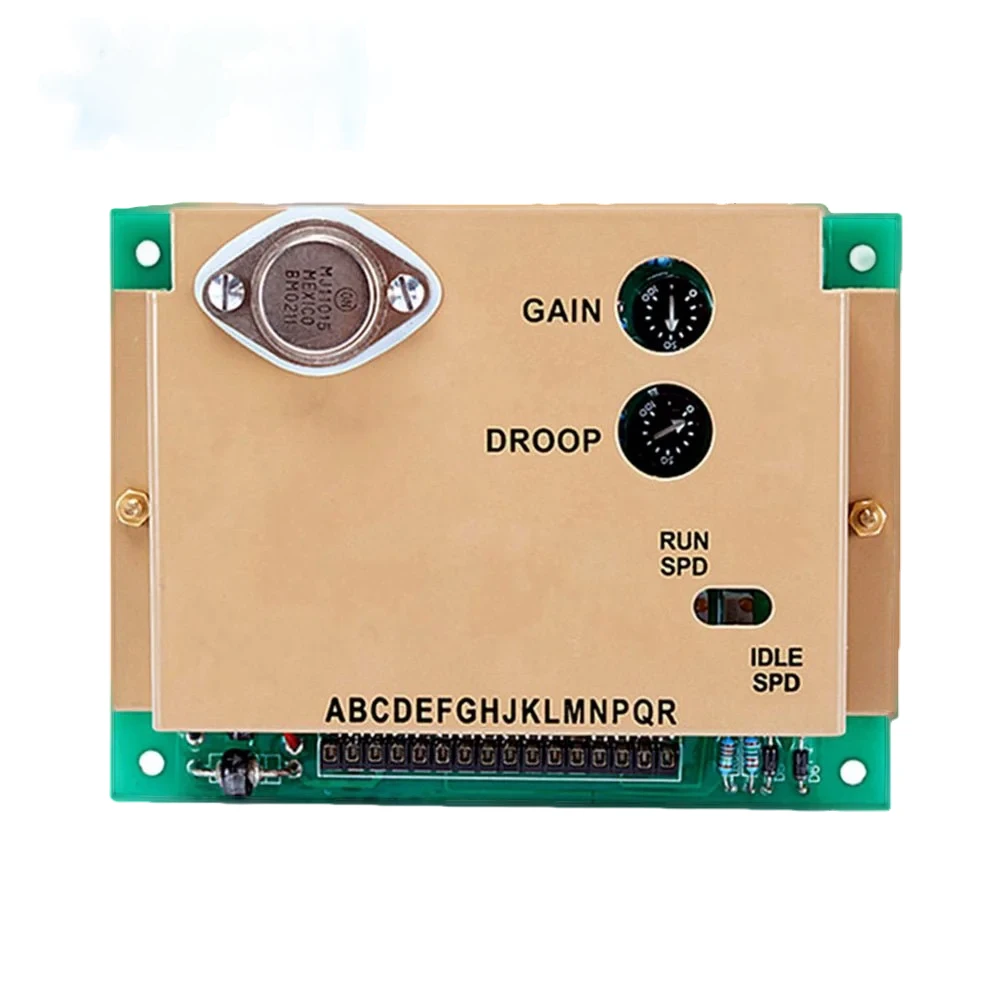

The 3044195 is a Cummins EFC-series electronic speed governor for PT(G)-type fuel systems on gensets up to ~500 kW. It provides stable isochronous operation for prime and standby power applications.
Key Features
- ≤500kW Rating — Designed for mid-size diesel generator sets with Cummins 6CT, 6LT, and NTA855 series engines
- Closed-Loop PID Control — Proportional-Integral-Derivative algorithm provides precise RPM regulation with configurable gain settings
- Mechanical Pump Interface — Directly drives Cummins PT(G) fuel pump rack via EFC actuator for fast fuel metering response
- Soft-Start — Adjustable acceleration ramp reduces startup emissions and limits fuel pump mechanical stress
- 12/24V Operation — Dual-voltage auto-sensing power supply for universal generator battery system compatibility
- Drop-In OEM — Form/fit/function replacement for Cummins 3044195 EFC speed governor unit
Technical Specifications
| Parameter | Value |
|---|---|
| ———– | ——- |
| Model | 3044195 |
| Type | Electronic Speed Governor (EFC, PTG) |
| Speed Stability | ±0.25% |
| Speed Sensor Input | 1–6.5 kHz (2–120 V RMS) |
| Actuator Output | Max 1 A |
| Control Mode | Droop adjustable |
| Application | Cummins ≤500 kW genset (EFC/PTG) |
Compatibility
Compatible with Cummins NTA855, 6CT, 6BT series engines using EFC actuators and PT(G) fuel systems.
Why Choose ZenixPower
- Stable RPM Regulation — ±0.25% speed stability
- Reverse Polarity Protected — Survives accidental battery reversal
- Conformal Coating — Humidity and fungus resistant
Competitors GAC ESD5500E — world’s most popular universal governor | KUTAI EG3000 — value alternative | Fortrust C2002 — budget-friendly
Specification Comparison
| Parameter | 3044195 | GAC ESD5500E | KUTAI EG3000 | Fortrust C2002 |
|---|---|---|---|---|
| Brand | Cummins (USA) | GAC (USA) | KUTAI (Taiwan) | Fortrust (China) |
| Function | Electronic Speed Governor (EFC, PTG) | Electronic + Overspeed | Closed-loop Electronic | Electronic + Soft-Start |
| DC Supply | — | 12/24V DC | 12/24V DC | 12/24V DC |
| Actuator Output | Max 1 A | 10A continuous | 0.5–15A | 10A max |
| Speed Stability | ±0.25% | ±0.25% | ±0.5% | ±0.25% |
| Speed Range | — | 600–9500 Hz | 600–9500 Hz | 500–9000 Hz |
| Overspeed Protection | Optional | Built-in | Optional | Built-in |
| Paralleling | No | Optional | No | No |
| Price | Contact Us | $280–450 | $180–300 | $120–220 |
