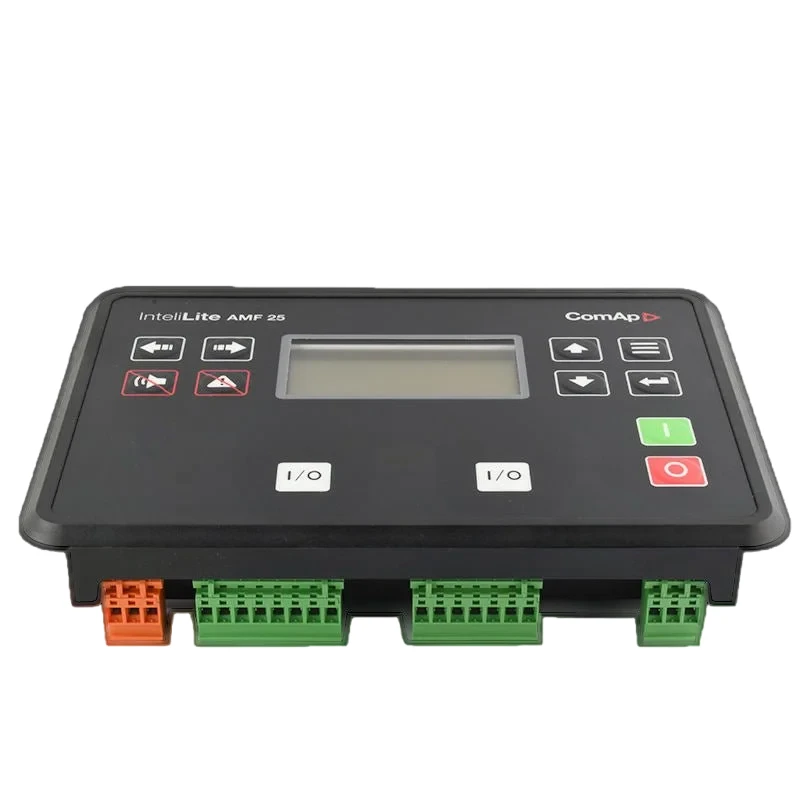

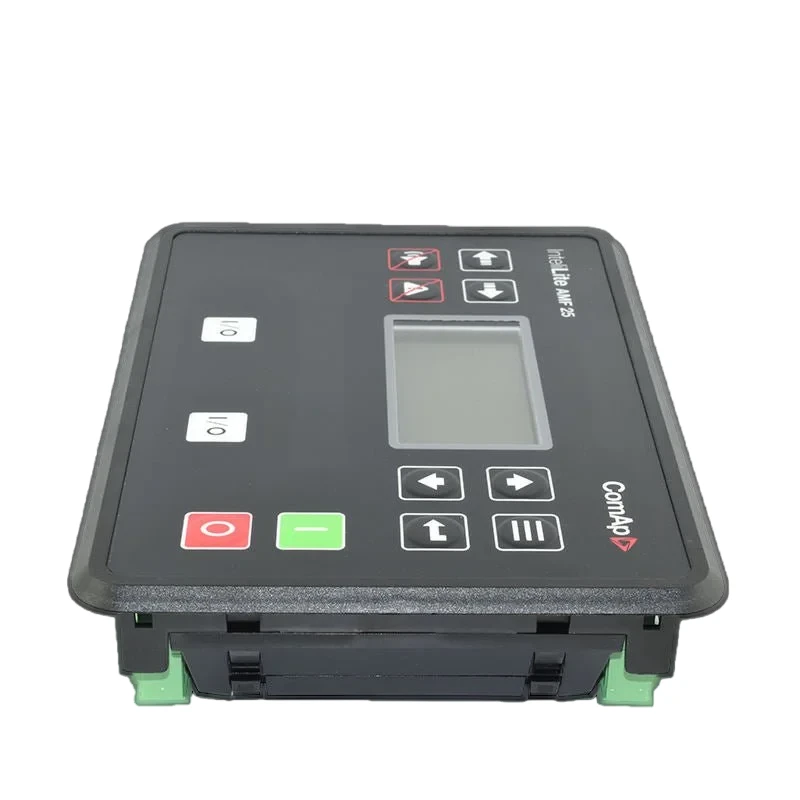

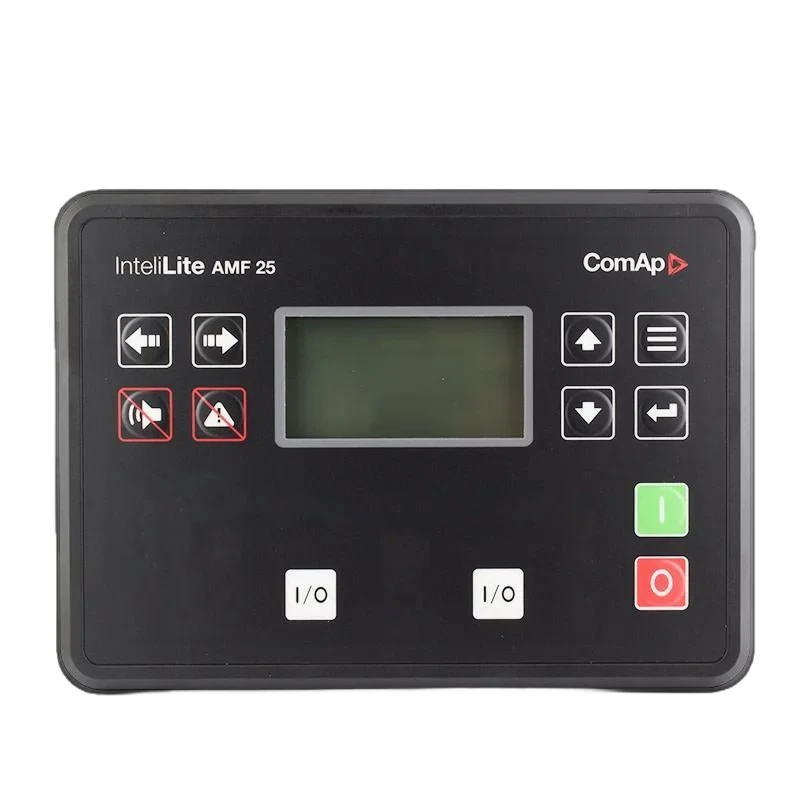

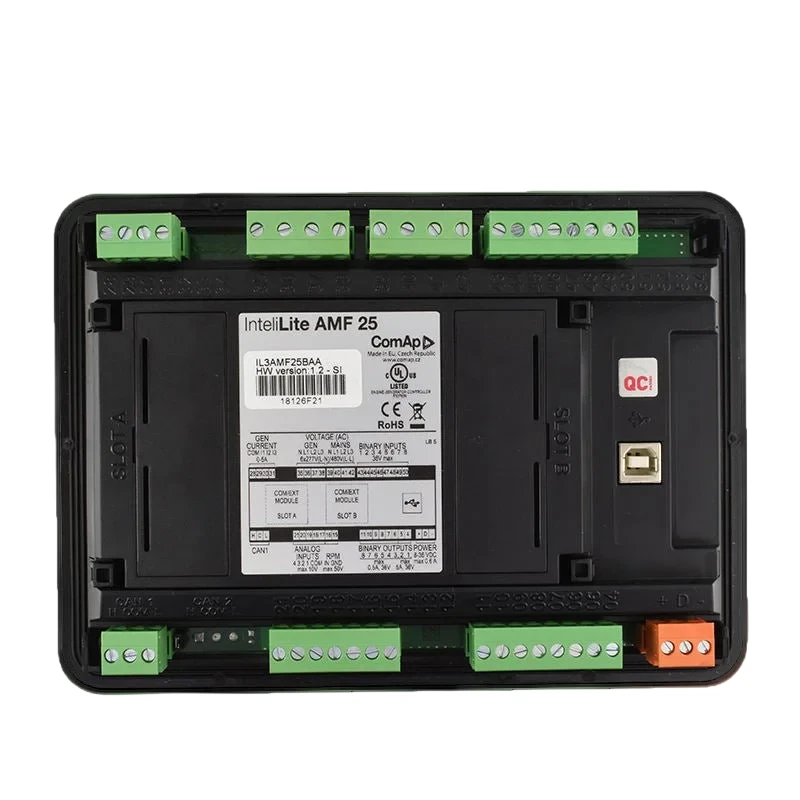

Overview
The AMF25 is a microprocessor-based generator set controller that provides automatic engine start/stop sequencing, AC power monitoring, and alarm protection for single diesel or gas generator units. It integrates digital measurement, programmable logic, and communication interfaces into a single panel-mounted module.
Key Features
- Microprocessor Control — Digital MCU-based module with precise engine start/stop sequencing and generator protection for single diesel/gas generator sets
- True RMS AC Monitoring — Generator and mains voltage, current, frequency, kW, kVA, PF measurement with programmable CT ratios and alarm thresholds
- CANbus J1939 Engine Integration — Direct communication with electronic engine ECUs for parameter display and diagnostic trouble code reading
- Multi-Mode Operation — Manual, automatic, and test modes with configurable transfer sequences and programmable crank/rest cycles
- Flexible I/O — All digital inputs and relay outputs user-configurable for custom applications including pre-heat, ventilation, annunciation, and remote signaling
- Event History — Onboard real-time clock with event log for commissioning, troubleshooting, and maintenance tracking
Technical Specifications
| Parameter | Value |
|---|---|
| ———– | ——- |
| Model | AMF25 |
| Type | Digital Generator Controller |
| Power Supply | DC 8V to 35V Continuous |
| Communication | RS485, CAN, SMS |
| Display | LCD 128×64 Backlit |
| Frequency | 50/60 Hz Selectable |
Compatibility
AMF25 is an enhanced AMF controller with CANbus J1939 and RS485 for 20-500kW generators. Compatible with ComAp InteliLite AMF25. Panel cutout: 120×90mm. Compatible with: AMF25, AMF20, ComAp AMF series.
Why Choose ZenixPower
- Full-Feature AMF — Automatic mains failure detection, engine start/stop sequencing, and load transfer control
- Multi-Protocol Communication — RS485 Modbus RTU, CAN J1939, and SMS alarm notification for remote monitoring
- Wide DC Supply — Operates from 8V to 35V DC, tolerating cranking voltage drop without reset
- Heavy-Duty Relays — 16A/250VAC rated outputs for fuel, start, and auxiliary control with replaceable relays
- Universal Compatibility — Works with magnetic pickup, alternator sensing, and CAN ECU engine types
- Pre-Configured Files — SmartGen/DSE/ComAp default configurations available to reduce commissioning time
Compatible Generators Single generator sets 20-2000kW requiring AMF + remote communication (RS485/Ethernet) + expanded I/O.
Competitors DSE4520 (Deep Sea), AMF25 (ComAp), DKG309 (Datakom).
Specification Comparison
| Parameter | DSE4520 | AMF25 | DKG309 |
|---|---|---|---|
| Brand | Deep Sea (UK) | ComAp (Czech) | Datakom (Turkey) |
| Function | AMF + Remote + Fuel Theft | AMF + CANbus + Remote | AMF + Dual CANbus + SMS |
| Display | 132×64 LCD | 128×64 LCD | 132×64 graphical LCD |
| Mains Monitoring | 3-phase V/I/f | 3-phase | 3-phase |
| CANbus | J1939, Volvo, Scania | J1939 | J1939, CANopen |
| Communication | RS485, RS232, Ethernet | RS485, RS232, USB | RS485, USB, Ethernet, SMS |
| Fuel Theft Detection | Yes | No | No |
| Digital Inputs | 8 | 8 | 10 |
| Relay Outputs | 6 | 6 | 8 |
| Panel Cutout | 220×160mm | 120×90mm | 220×160mm |
| Price | $120-180 | $90-140 | $100-160 |
Selection Advice
Mid-range AMF controllers differ primarily in feature combinations. The DSE4520 uniquely offers fuel theft detection — a significant advantage in African and Middle Eastern markets where fuel is expensive. Multi-brand CANbus support makes it plug-and-play on Volvo/Scania engines. The AMF25 has the smallest panel cutout (120×90mm), making it the preferred choice for retrofitting older controllers. The DKG309 uniquely offers SMS alarm notification, the most I/O, and CANopen support. Choose based on the customer’s specific requirements.
