Overview

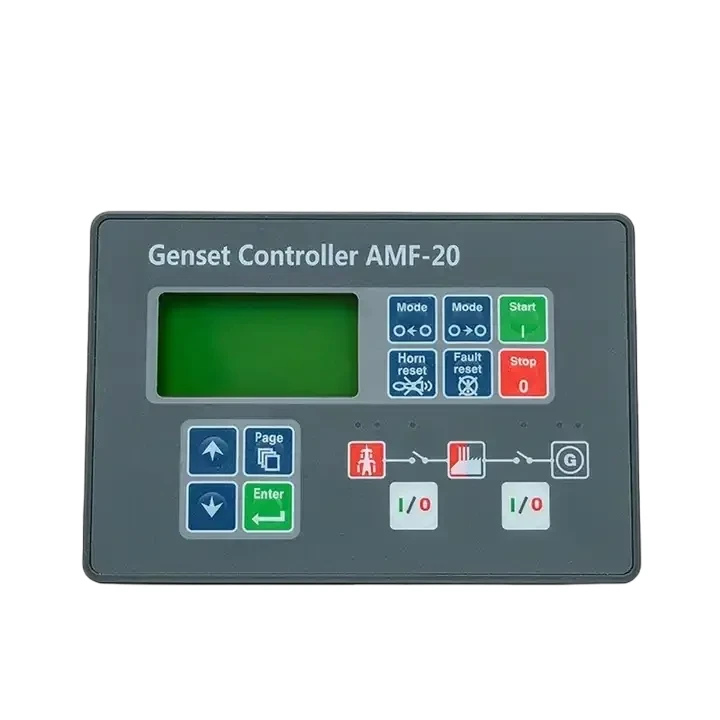

The AMF20 is a microprocessor-based generator set controller that provides automatic engine start/stop sequencing, AC power monitoring, and alarm protection for single diesel or gas generator units. It integrates digital measurement, programmable logic, and communication interfaces into a single panel-mounted module.
Key Features
- Microprocessor Control — Digital MCU-based module with precise engine start/stop sequencing and generator protection for single diesel/gas generator sets
- True RMS AC Monitoring — Generator and mains voltage, current, frequency, kW, kVA, PF measurement with programmable CT ratios and alarm thresholds
- CANbus J1939 Engine Integration — Direct communication with electronic engine ECUs for parameter display and diagnostic trouble code reading
- Multi-Mode Operation — Manual, automatic, and test modes with configurable transfer sequences and programmable crank/rest cycles
- Flexible I/O — All digital inputs and relay outputs user-configurable for custom applications including pre-heat, ventilation, annunciation, and remote signaling
- Event History — Onboard real-time clock with event log for commissioning, troubleshooting, and maintenance tracking
Technical Specifications
| Parameter | Value |
|---|---|
| ———– | ——- |
| Model | AMF20 |
| Type | Digital Generator Controller |
| Power Supply | DC 8V to 35V Continuous |
| Communication | SMS |
| Display | LCD 128×64 Backlit |
| Frequency | 50/60 Hz Selectable |
Compatibility
AMF20 is a mid-range AMF controller with LCD for single generators 15-300kW. Compatible with ComAp InteliLite AMF20 platform. Panel cutout: 120×90mm. Compatible with: AMF20, ComAp AMF/MRS series.
Why Choose ZenixPower
- Full-Feature AMF — Automatic mains failure detection, engine start/stop sequencing, and load transfer control
- Multi-Protocol Communication — RS485 Modbus RTU, CAN J1939, and SMS alarm notification for remote monitoring
- Wide DC Supply — Operates from 8V to 35V DC, tolerating cranking voltage drop without reset
- Heavy-Duty Relays — 16A/250VAC rated outputs for fuel, start, and auxiliary control with replaceable relays
- Universal Compatibility — Works with magnetic pickup, alternator sensing, and CAN ECU engine types
- Pre-Configured Files — SmartGen/DSE/ComAp default configurations available to reduce commissioning time
Compatible Generators Single diesel/gas generator sets 10-500kW requiring standard AMF: automatic start on mains failure + automatic stop on mains return.
Competitors DSE3110 (Deep Sea), AMF20 (ComAp), DKG307 (Datakom). All three can independently perform mains detection, auto start/stop, and automatic transfer.
Specification Comparison
| Parameter | DSE3110 | AMF20 | DKG307 |
|---|---|---|---|
| Brand | Deep Sea (UK) | ComAp (Czech) | Datakom (Turkey) |
| Function | AMF | AMF | AMF + CANbus |
| Display | 128×64 LCD | 128×64 LCD | 128×64 graphical LCD |
| Mains Monitoring | 3-phase V/I/f | 3-phase | 3-phase |
| CANbus | J1939, MTU MDEC | No | J1939 |
| Communication | RS485, RS232 | RS232, USB | RS485, USB |
| Digital Inputs | 6 | 6 | 8 |
| Relay Outputs | 4 | 4 | 6 |
| Software | DSE Suite (free) | LiteEdit (free) | Rainbow Plus (free) |
| Price | $80-130 | $70-110 | $80-120 |
Selection Advice
These three standard AMF controllers are closely positioned. The DSE3110’s unique selling points are dual CANbus and the highest global brand recognition with the most comprehensive technical documentation. The AMF20 is ComAp’s classic AMF model, widely pre-installed by European generator OEMs, with intuitive LiteEdit software. The DKG307 offers the most I/O at a moderate price, with dense dealer networks in the Middle East, Africa, and Southeast Asia for strong localized support. If uncertain, the DSE3110 is the safest choice — electricians familiar with it can be found worldwide.
