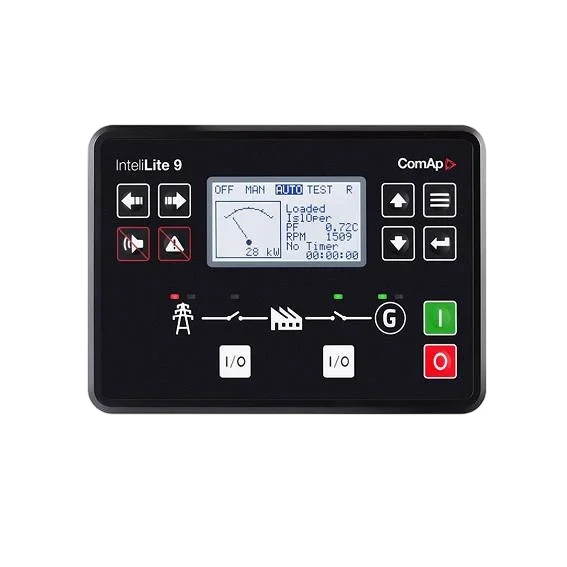

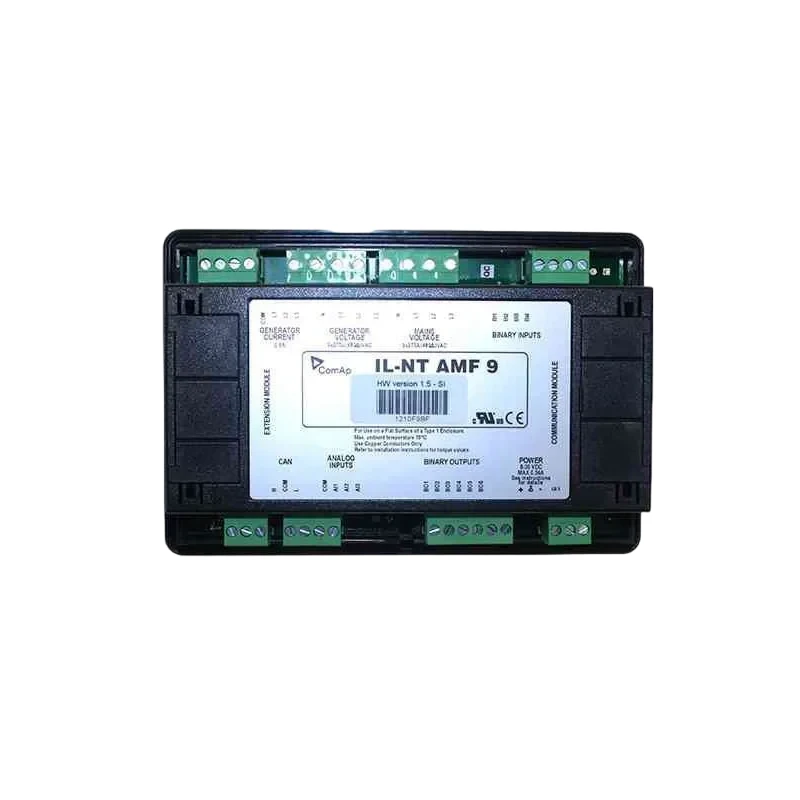

Overview
The AMF9 is a microprocessor-based generator set controller that provides automatic engine start/stop sequencing, AC power monitoring, and alarm protection for single diesel or gas generator units. It integrates digital measurement, programmable logic, and communication interfaces into a single panel-mounted module.
Key Features
- Microprocessor Control — Digital MCU-based module with precise engine start/stop sequencing and generator protection for single diesel/gas generator sets
- True RMS AC Monitoring — Generator and mains voltage, current, frequency, kW, kVA, PF measurement with programmable CT ratios and alarm thresholds
- CANbus J1939 Engine Integration — Direct communication with electronic engine ECUs for parameter display and diagnostic trouble code reading
- Multi-Mode Operation — Manual, automatic, and test modes with configurable transfer sequences and programmable crank/rest cycles
- Flexible I/O — All digital inputs and relay outputs user-configurable for custom applications including pre-heat, ventilation, annunciation, and remote signaling
- Event History — Onboard real-time clock with event log for commissioning, troubleshooting, and maintenance tracking
Technical Specifications
| Parameter | Value |
|---|---|
| ———– | ——- |
| Model | AMF9 |
| Type | Digital Generator Controller |
| Function | Auto Start |
| DC Supply | 8-36V DC Continuous |
| Display | LED Indicators |
| Communication | CAN, SMS |
| Frequency | 50/60 Hz Selectable |
| Relay Outputs | 3 configurable |
| Digital Inputs | 4 configurable |
| Magnetic Pickup | 100-10,000Hz |
| Panel Cutout | 92×92mm |
| Certifications | CE |
Compatibility
AMF9 is a compact auto-start module for small generators 5-30kW. Compatible with ComAp InteliLite MRS9 platform. Panel cutout: 92×92mm. Compatible with: AMF9, InteliLite MRS9, ComAp AMF series.
Why Choose ZenixPower
- Full-Feature AMF — Automatic mains failure detection, engine start/stop sequencing, and load transfer control
- Multi-Protocol Communication — RS485 Modbus RTU, CAN J1939, and SMS alarm notification for remote monitoring
- Wide DC Supply — Operates from 8V to 35V DC, tolerating cranking voltage drop without reset
- Heavy-Duty Relays — 16A/250VAC rated outputs for fuel, start, and auxiliary control with replaceable relays
- Universal Compatibility — Works with magnetic pickup, alternator sensing, and CAN ECU engine types
- Pre-Configured Files — SmartGen/DSE/ComAp default configurations available to reduce commissioning time
Compatible Generators Small diesel/gas generator sets 3-50kW requiring only auto-start and basic protection.
Competitors Entry-level auto-start controllers from each major brand with identical functional positioning, priced $30-60.
Specification Comparison
| Parameter | AMF9 | DSE6110 | MRS11 | DKG105 |
|---|---|---|---|---|
| Brand | ComAp (Czech) | Deep Sea (UK) | ComAp (Czech) | Datakom (Turkey) |
| Function | Auto Start | Auto Start | Auto Start | Auto Start |
| AMF Mains Monitoring | No | No | No | No |
| Display | LED Indicators | LED indicators | 2×16 LCD | LED + 3-digit |
| CANbus | CAN | J1939 | No | No |
| Magnetic Pickup | Yes | Yes | Yes | Yes |
| Relay Outputs | 3 configurable | 4 | 3 | 3 |
| Price | Contact Us | $40-65 | $30-50 | $25-45 |
