Overview

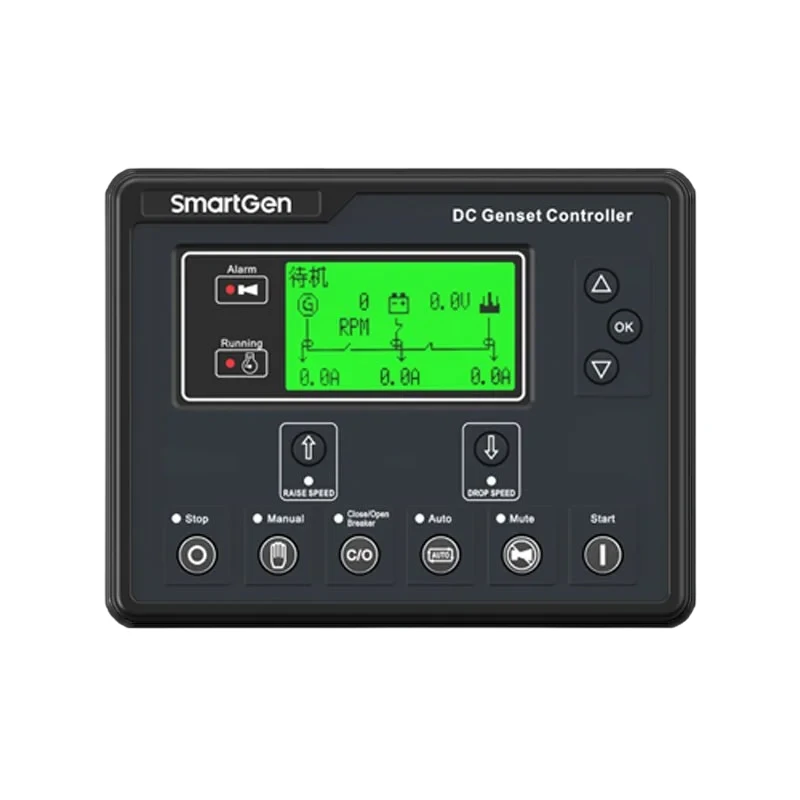

The HGM7100N is a microprocessor-based generator set controller that provides automatic engine start/stop sequencing, AC power monitoring, and alarm protection for single diesel or gas generator units. It integrates digital measurement, programmable logic, and communication interfaces into a single panel-mounted module.
Key Features
- Microprocessor-Based Control — Advanced MCU with real-time monitoring for generator start/stop, engine protection, and AC parameter measurement
- Multi-Language LCD Display — Backlit LCD with user-selectable languages (Chinese, English, Spanish, Russian, Arabic) for international deployment
- CANbus J1939 Engine ECU Support — Direct communication with electronic engines for real-time parameter display and diagnostic trouble codes
- Flexible I/O Configuration — All digital inputs and relay outputs user-configurable for custom control logic including remote start, pre-heat, and alarm outputs
- USB & RS485 Communication — Front-panel USB for configuration and firmware updates; RS485 Modbus RTU for SCADA/BMS integration
- Comprehensive Engine Protection — Configurable alarm/shutdown for 16 engine parameters with programmable delay timers and warning pre-alarms
Technical Specifications
| Parameter | Value |
|---|---|
| ———– | ——- |
| Model | HGM7100N |
| Type | Digital Generator Controller |
| Function | Paralleling (up to 16 units) |
| DC Supply | 8-35V DC |
| AC Voltage Range | 15-360V L-N |
| Display | 7″ color TFT touchscreen |
| Operating Temp | -25°C to +70°C |
| CANbus | J1939 |
| Communication | RS485, USB, Ethernet, CAN, MODBUS-RTU |
| Load Sharing | Isochronous kW/kVAR |
| Digital Inputs | 12 configurable |
| Relay Outputs | 12 configurable |
| Panel Cutout | 266×182mm |
| Protection Functions | Over/Under Volt, Over/Under Freq, Over Speed, Over Current, Low Oil Press, High Water Temp |
| Certifications | CE |
Compatibility
HGM7100N is SmartGen’s mid-range paralleling controller supporting up to 16 units for 50-3000kW generator sets. Panel cutout: 266×182mm. Compatible with: HGM7100N, SmartGen 7100 series.
Why Choose ZenixPower
- Full-Feature AMF — Automatic mains failure detection, engine start/stop sequencing, and load transfer control
- Multi-Protocol Communication — RS485 Modbus RTU, CAN J1939, and SMS alarm notification for remote monitoring
- Wide DC Supply — Operates from 8V to 35V DC, tolerating cranking voltage drop without reset
- Heavy-Duty Relays — 16A/250VAC rated outputs for fuel, start, and auxiliary control with replaceable relays
- Universal Compatibility — Works with magnetic pickup, alternator sensing, and CAN ECU engine types
- Pre-Configured Files — SmartGen/DSE/ComAp default configurations available to reduce commissioning time
Compatible Generators Large power stations with multiple generator sets operating in parallel, 200-5000kW, requiring automatic synchronization, load sharing, and power management.
Competitors DSE8610 (Deep Sea), HGM7100N (SmartGen), DKG500 (Datakom).
Specification Comparison
| Parameter | DSE8610 | HGM7100N | DKG500 |
|---|---|---|---|
| Brand | Deep Sea (UK) | SmartGen (China) | Datakom (Turkey) |
| Generator Capacity | Up to 16 units | Up to 16 units | Up to 16 units |
| Display | 7″ TFT touchscreen | 7″ TFT touchscreen | 4.3″ TFT touchscreen |
| Sync Accuracy | ±1% V/f/phase angle | ±1% V/f/phase angle | ±1% V/f/phase angle |
| Load Sharing | Isochronous kW/kVAR | Isochronous kW/kVAR | Isochronous kW/kVAR |
| Power Management | Peak shaving, demand, base-load | Peak shaving, demand | Peak shaving |
| Protocols | Modbus TCP/RTU, BACnet, SNMP | Modbus TCP/RTU | Modbus TCP/RTU |
| Cybersecurity | Password levels, audit trail, TLS | Password levels | Password levels |
| Event Log | 250 events + waveform capture | 200 events | 150 events |
| Marine Cert. | ABS, DNV | No | No |
| Price | $500-800 | $300-500 | $250-400 |
Selection Advice
Paralleling controllers represent the highest tier of generator controllers. The DSE8610 is the industry benchmark — marine classification society certification (ABS/DNV) enables ship and offshore platform use; BACnet/SNMP protocols enable direct BMS and data center DCIM integration; cybersecurity features meet critical infrastructure compliance. Highest price but most complete certification and reliability.
The HGM7100N is SmartGen’s paralleling workhorse — functionally on par with DSE8610 at approximately 60% of the price. 7-inch large touchscreen with excellent user experience. Widely used in small-to-medium power station projects across Asia, Africa, and South America. Lacks marine certification and advanced cybersecurity, but most land-based applications don’t require these.
The DKG500 is Datakom’s paralleling solution — smallest screen but highest competitiveness in budget-sensitive large projects at approximately 50% of DSE8610’s price. Feature completeness trails the other two. Suitable for pure paralleling without complex power management.
