Overview

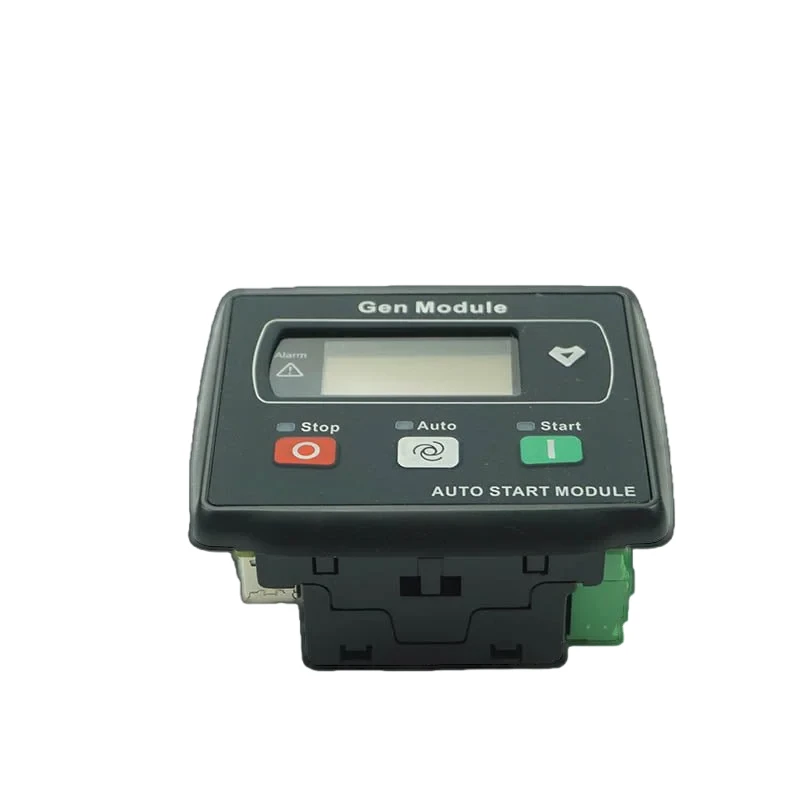

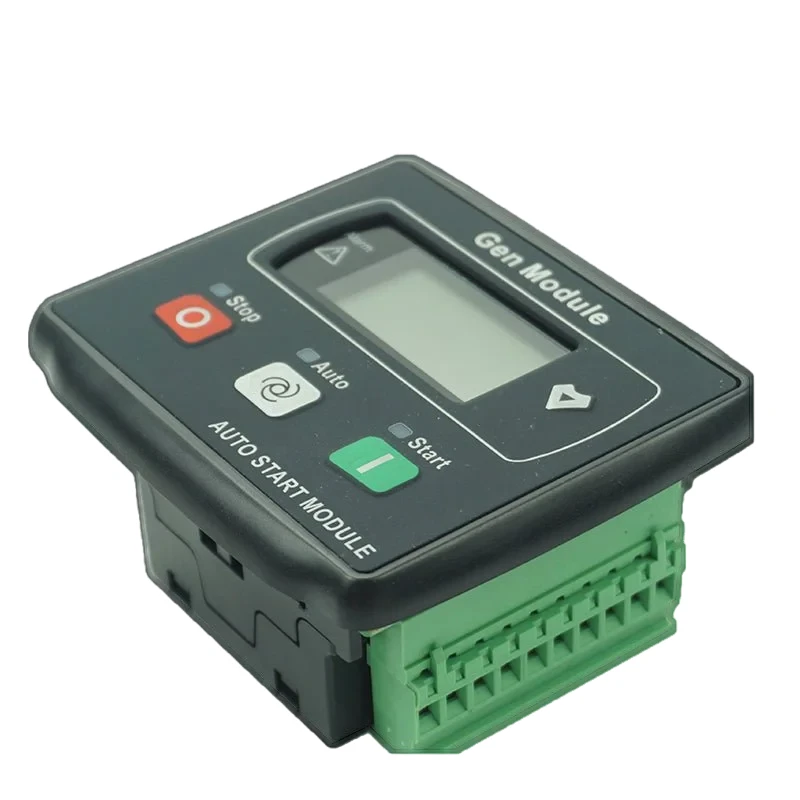

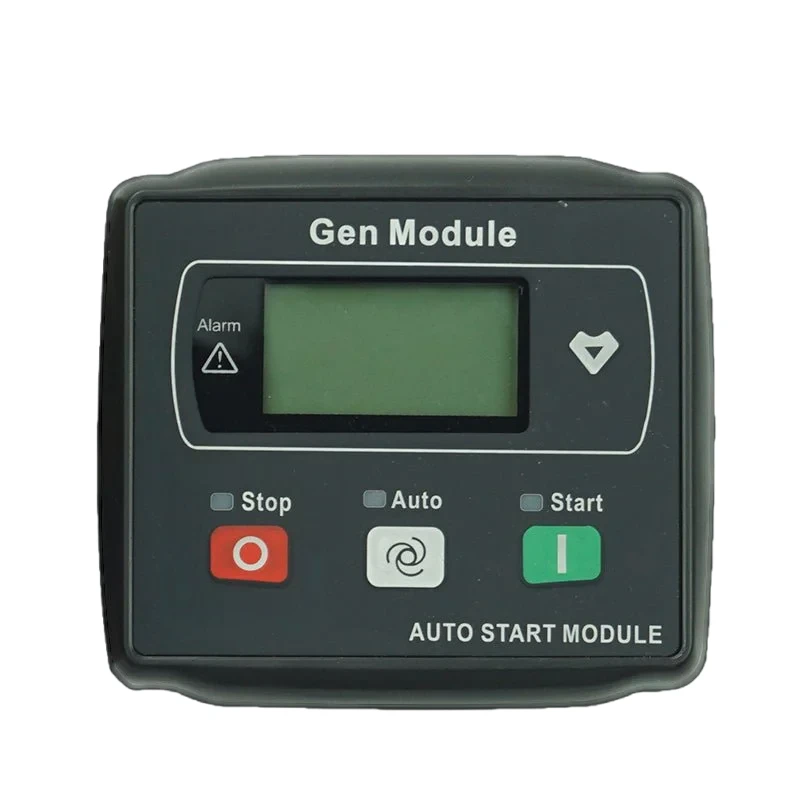

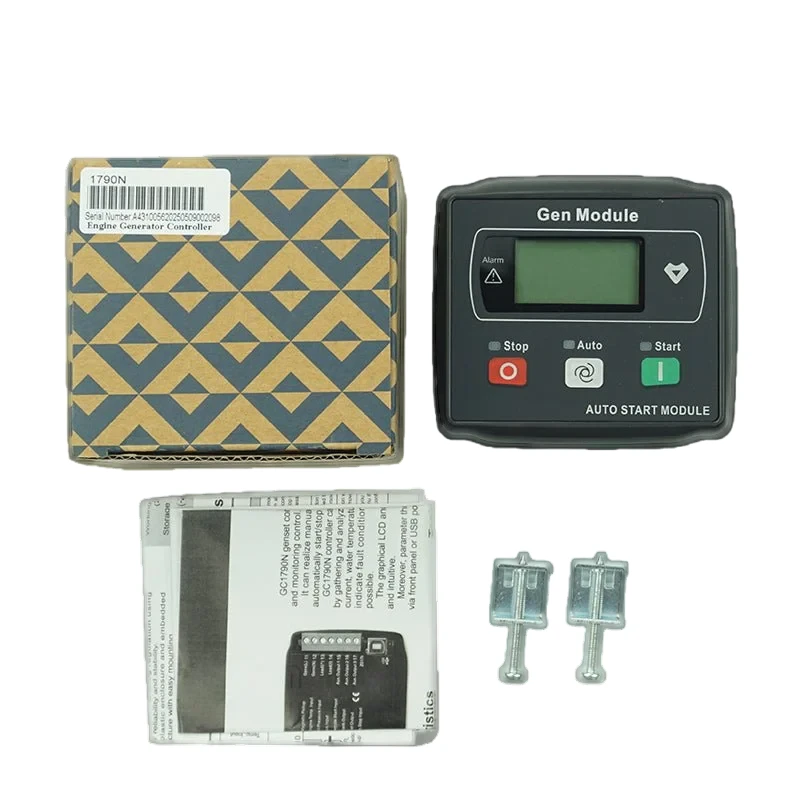

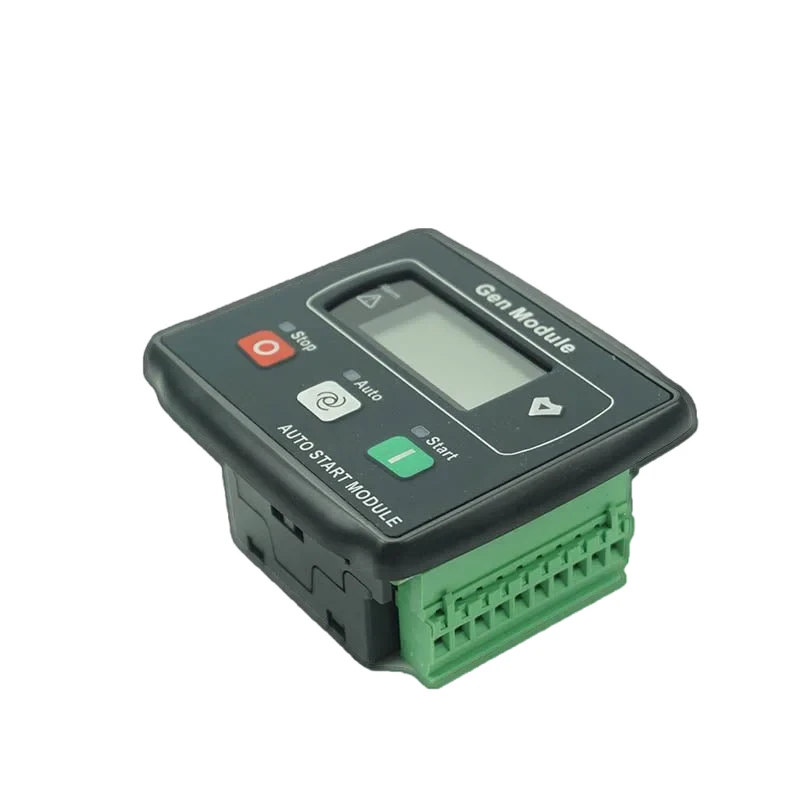

The HGM1790N is a microprocessor-based generator set controller that provides automatic engine start/stop sequencing, AC power monitoring, and alarm protection for single diesel or gas generator units. It integrates digital measurement, programmable logic, and communication interfaces into a single panel-mounted module.
Key Features
- Microprocessor-Based Control — Advanced MCU with real-time monitoring for generator start/stop, engine protection, and AC parameter measurement
- Multi-Language LCD Display — Backlit LCD with user-selectable languages (Chinese, English, Spanish, Russian, Arabic) for international deployment
- CANbus J1939 Engine ECU Support — Direct communication with electronic engines for real-time parameter display and diagnostic trouble codes
- Flexible I/O Configuration — All digital inputs and relay outputs user-configurable for custom control logic including remote start, pre-heat, and alarm outputs
- USB & RS485 Communication — Front-panel USB for configuration and firmware updates; RS485 Modbus RTU for SCADA/BMS integration
- Comprehensive Engine Protection — Configurable alarm/shutdown for 16 engine parameters with programmable delay timers and warning pre-alarms
Technical Specifications
| Parameter | Value |
|---|---|
| ———– | ——- |
| Model | HGM1790N |
| Type | Digital Generator Controller |
| Power Supply | DC 8V to 35V Continuous |
| Relay Output | 1A, 1A, 1A |
| Display | LCD 132×64 Backlit |
| Frequency | 50/60 Hz Selectable |
Compatibility
HGM1790N is SmartGen’s entry-level auto-start module with LCD for small generators 5-30kW. Simple 4-button interface. Panel cutout: 92×92mm. Compatible with: HGM1790N, SmartGen 1700 series.
Why Choose ZenixPower
- Full-Feature AMF — Automatic mains failure detection, engine start/stop sequencing, and load transfer control
- Multi-Protocol Communication — RS485 Modbus RTU, CAN J1939, and SMS alarm notification for remote monitoring
- Wide DC Supply — Operates from 8V to 35V DC, tolerating cranking voltage drop without reset
- Heavy-Duty Relays — 1A DC28V rated outputs for fuel, start, and auxiliary control with compact sealed relays
- Universal Compatibility — Works with magnetic pickup, alternator sensing, and CAN ECU engine types
- Pre-Configured Files — SmartGen/DSE/ComAp default configurations available to reduce commissioning time
Compatible Generators Small diesel/gas generator sets 3-50kW requiring only auto-start and basic protection.
Competitors Entry-level auto-start controllers from each major brand with identical functional positioning, priced $30-60.
Specification Comparison
| Parameter | HGM1790N | DSE6110 | MRS11 | DKG105 |
|---|---|---|---|---|
| Brand | SmartGen (China) | Deep Sea (UK) | ComAp (Czech) | Datakom (Turkey) |
| Function | Auto Start | Auto Start | Auto Start | Auto Start |
| AMF Mains Monitoring | No | No | No | No |
| Display | 2×16 character LCD | LED indicators | 2×16 LCD | LED + 3-digit |
| CANbus | 无 | J1939 | No | No |
| Magnetic Pickup | Yes | Yes | Yes | Yes |
| Relay Outputs | 3 configurable | 4 | 3 | 3 |
| Price | Contact Us | $40-65 | $30-50 | $25-45 |
