Overview

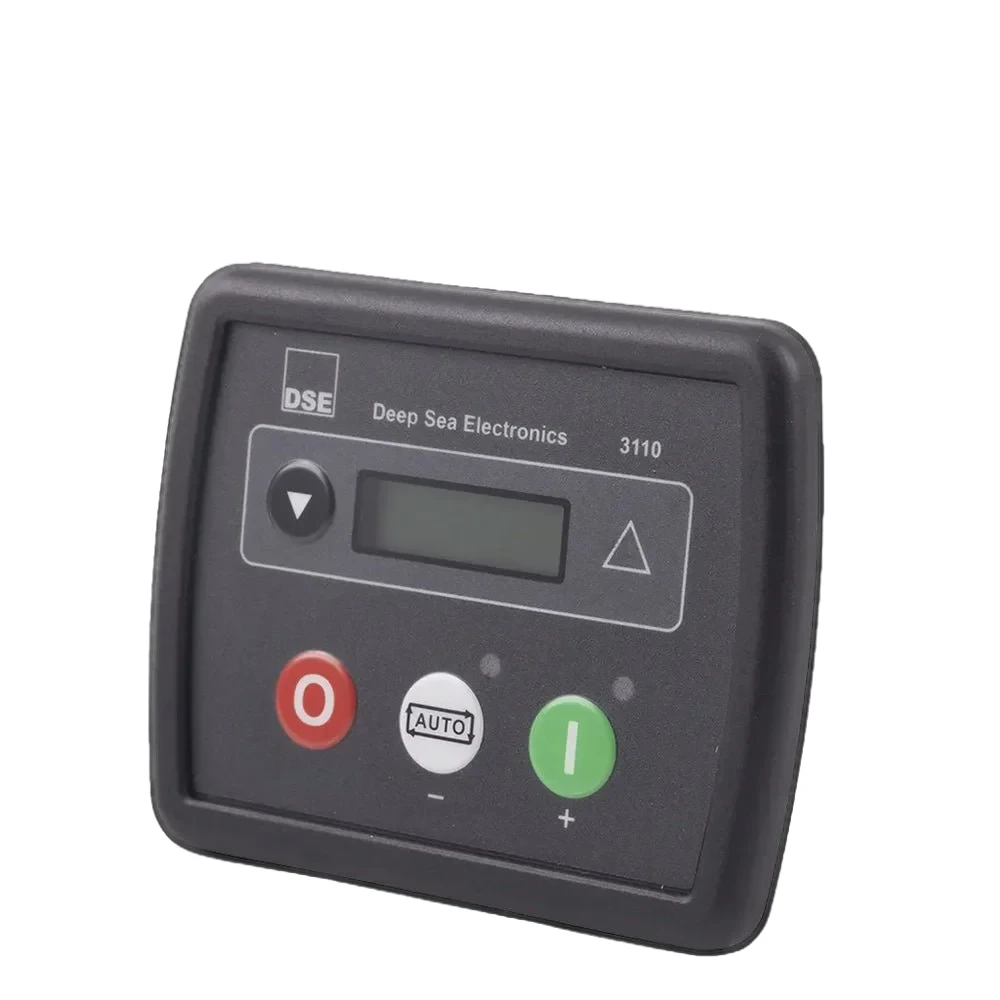

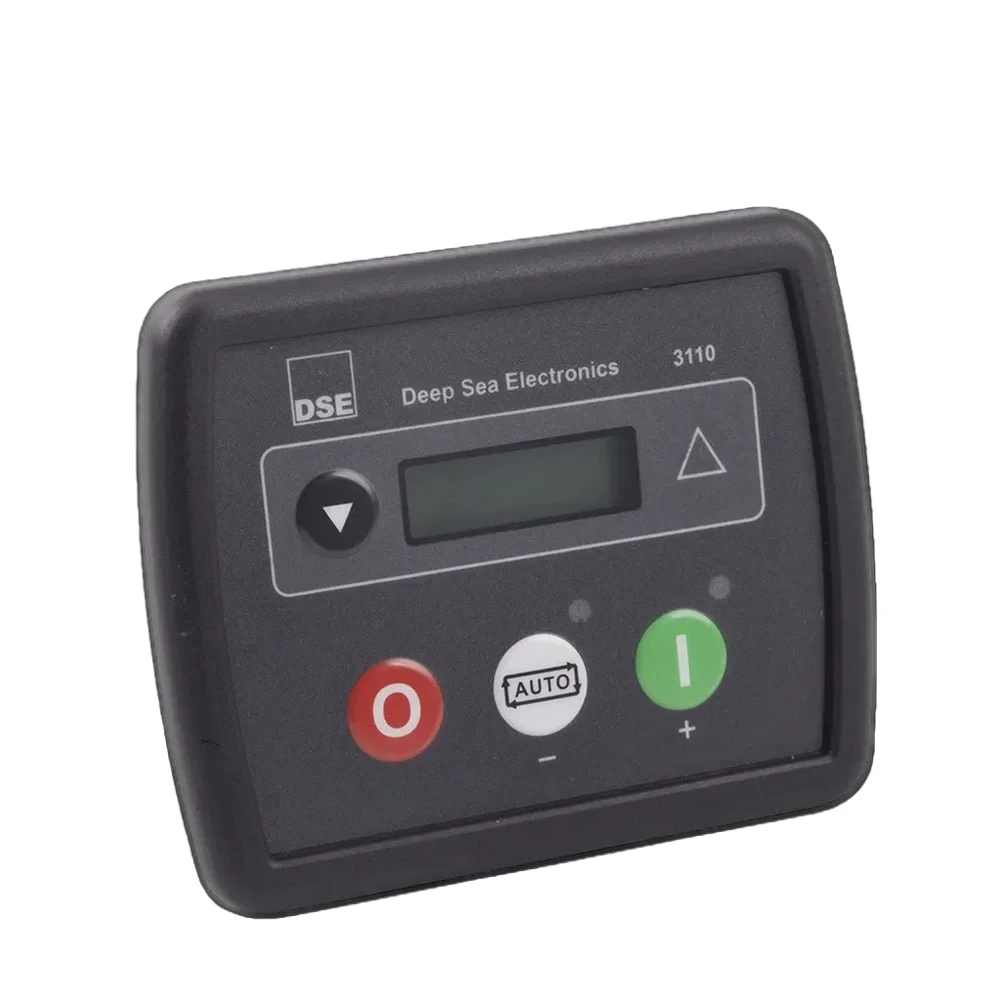

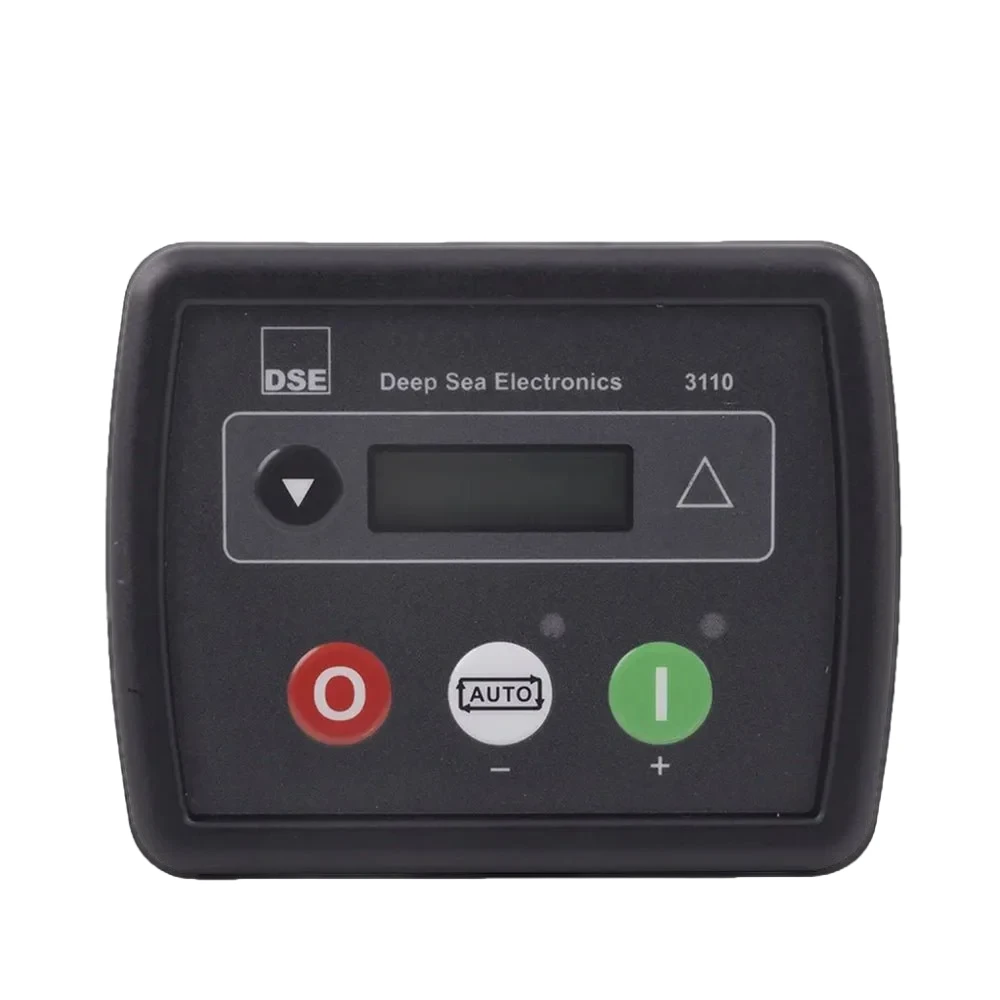

The DSE3110 is a microprocessor-based generator set controller that provides automatic engine start/stop sequencing, AC power monitoring, and alarm protection for single diesel or gas generator units. It integrates digital measurement, programmable logic, and communication interfaces into a single panel-mounted module.
Key Features
- Digital AMF Control — Automatic mains failure detection with configurable start/stop sequencing for single generator sets
- True RMS AC Monitoring — 1-phase or 3-phase generator and mains voltage/current/frequency measurement with ±1% accuracy
- Full Engine Instrumentation — Oil pressure, coolant temperature, fuel level, battery voltage, and engine speed monitoring with programmable alarm thresholds
- CANbus Engine Support — J1939 and MTU MDEC CANbus interface for electronic engine ECU data integration
- Configurable I/O — 6 digital inputs, 4 relay outputs, 3 analog inputs all user-programmable via DSE Configuration Suite
- Event & Data Logging — 50-event log with real-time clock stamping; maintenance scheduler with configurable run-time reminders
Technical Specifications
| Parameter | Value |
|---|---|
| ———– | ——- |
| Model | DSE3110 |
| Type | Digital Generator Controller |
| Power Supply | DC 8V to 35V Continuous |
| Communication | CAN |
| Function | Auto Start/Stop AMF Controller |
| Display | LED Indicators with Backlit LCD |
| Frequency | 50/60 Hz Selectable |
Compatibility
DSE3110 is the entry-level AMF controller in the DSE 3100 series. Compatible with single diesel or gas generator sets up to 500kW requiring automatic mains failure transfer. Direct replacement for DSE3110 OEM units. Supports standard engine senders (VDO/European resistive curve). Panel cutout: 186×137mm. Compatible with: DSE3110, DSE3100 series.
Why Choose ZenixPower
- Full-Feature AMF — Automatic mains failure detection, engine start/stop sequencing, and load transfer control
- Multi-Protocol Communication — RS485 Modbus RTU, CAN J1939, and SMS alarm notification for remote monitoring
- Wide DC Supply — Operates from 8V to 35V DC, tolerating cranking voltage drop without reset
- Heavy-Duty Relays — 16A/250VAC rated outputs for fuel, start, and auxiliary control with replaceable relays
- Universal Compatibility — Works with magnetic pickup, alternator sensing, and CAN ECU engine types
- Pre-Configured Files — SmartGen/DSE/ComAp default configurations available to reduce commissioning time
Compatible Generators Single diesel/gas generator sets 10-500kW requiring standard AMF: automatic start on mains failure + automatic stop on mains return.
Competitors DSE3110 (Deep Sea), AMF20 (ComAp), DKG307 (Datakom). All three can independently perform mains detection, auto start/stop, and automatic transfer.
Specification Comparison
| Parameter | DSE3110 | AMF20 | DKG307 |
|---|---|---|---|
| Brand | Deep Sea (UK) | ComAp (Czech) | Datakom (Turkey) |
| Function | AMF | AMF | AMF + CANbus |
| Display | 128×64 LCD | 128×64 LCD | 128×64 graphical LCD |
| Mains Monitoring | 3-phase V/I/f | 3-phase | 3-phase |
| CANbus | J1939, MTU MDEC | No | J1939 |
| Communication | RS485, RS232 | RS232, USB | RS485, USB |
| Digital Inputs | 6 | 6 | 8 |
| Relay Outputs | 4 | 4 | 6 |
| Software | DSE Suite (free) | LiteEdit (free) | Rainbow Plus (free) |
| Price | $80-130 | $70-110 | $80-120 |
Selection Advice
These three standard AMF controllers are closely positioned. The DSE3110’s unique selling points are dual CANbus and the highest global brand recognition with the most comprehensive technical documentation. The AMF20 is ComAp’s classic AMF model, widely pre-installed by European generator OEMs, with intuitive LiteEdit software. The DKG307 offers the most I/O at a moderate price, with dense dealer networks in the Middle East, Africa, and Southeast Asia for strong localized support. If uncertain, the DSE3110 is the safest choice — electricians familiar with it can be found worldwide.
