Overview

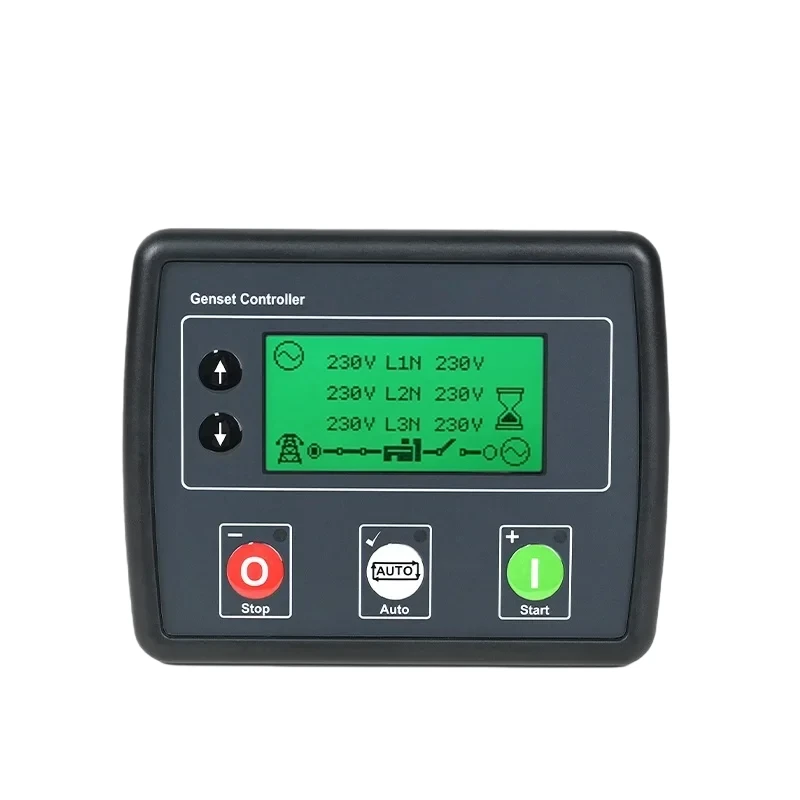

The DSE4510 is a microprocessor-based generator set controller that provides automatic engine start/stop sequencing, AC power monitoring, and alarm protection for single diesel or gas generator units. It integrates digital measurement, programmable logic, and communication interfaces into a single panel-mounted module.
Key Features
- Microprocessor-Based Control — 32-bit ARM processor with real-time operating system for fast response to engine faults and mains failures
- True RMS AC Measurement — Generator voltage (L-L/L-N), current per phase, frequency, power factor, kW, kVA, and kWh metering with CT ratio configuration
- Engine Protection Suite — Configurable alarm and shutdown thresholds for low oil pressure, high coolant temperature, overspeed, underspeed, battery over/under voltage, and charge failure
- CANbus J1939 Engine Support — Direct interface with electronic engine ECUs for parameter monitoring, diagnostic code reading, and ECU configuration access
- Configurable Digital I/O — All inputs and outputs user-programmable for custom functions including remote start, pre-heat, ventilation control, and external alarm inputs
- Event & Maintenance Logging — Onboard event recorder with real-time clock stamping; configurable maintenance scheduler with hour/date-based service reminders
Technical Specifications
| Parameter | Value |
|---|---|
| ———– | ——- |
| Model | DSE4510 |
| Type | Digital Generator Controller |
| Power Supply | DC 8V to 35V Continuous |
| Communication | CAN |
| Function | Auto Start/Stop AMF Controller with CAN |
| Display | LCD 128×64 Backlit |
| Frequency | 50/60 Hz Selectable |
Compatibility
DSE4510 is an AMF controller in DSE 4500 series for single generators 20-500kW with RS485 remote communication and configurable I/O. Panel cutout: 220×160mm. Compatible with: DSE4510, DSE4520, DSE4500 series. For 3-phase mains monitoring, upgrade to DSE4520.
Why Choose ZenixPower
- Full-Feature AMF — Automatic mains failure detection, engine start/stop sequencing, and load transfer control
- Multi-Protocol Communication — RS485 Modbus RTU, CAN J1939, and SMS alarm notification for remote monitoring
- Wide DC Supply — Operates from 8V to 35V DC, tolerating cranking voltage drop without reset
- Heavy-Duty Relays — 16A/250VAC rated outputs for fuel, start, and auxiliary control with replaceable relays
- Universal Compatibility — Works with magnetic pickup, alternator sensing, and CAN ECU engine types
- Pre-Configured Files — SmartGen/DSE/ComAp default configurations available to reduce commissioning time
Compatible Generators Single generator sets 20-2000kW requiring AMF + remote communication (RS485/Ethernet) + expanded I/O.
Competitors DSE4520 (Deep Sea), AMF25 (ComAp), DKG309 (Datakom).
Specification Comparison
| Parameter | DSE4510 | DSE4520 | AMF25 | DKG309 |
|---|---|---|---|---|
| Brand | Deep Sea (UK) | Deep Sea (UK) | ComAp (Czech) | Datakom (Turkey) |
| Function | Auto Start/Stop AMF Controller with CAN | AMF + Remote + Fuel Theft | AMF + CANbus + Remote | AMF + Dual CANbus + SMS |
| Display | LCD 128×64 Backlit | 132×64 LCD | 128×64 LCD | 132×64 graphical LCD |
| Mains Monitoring | 3-phase V/I/f | 3-phase V/I/f | 3-phase | 3-phase |
| CANbus | 无 | J1939, Volvo, Scania | J1939 | J1939, CANopen |
| Communication | RS485, RS232 | RS485, RS232, Ethernet | RS485, RS232, USB | RS485, USB, Ethernet, SMS |
| Fuel Theft Detection | No | Yes | No | No |
| Digital Inputs | 8 configurable | 8 | 8 | 10 |
| Relay Outputs | 6 configurable | 6 | 6 | 8 |
| Panel Cutout | 220×160mm | 220×160mm | 120×90mm | 220×160mm |
| Price | Contact Us | $120-180 | $90-140 | $100-160 |
