Overview
The DKG155 is a microprocessor-based generator set controller that provides automatic engine start/stop sequencing, AC power monitoring, and alarm protection for single diesel or gas generator units. It integrates digital measurement, programmable logic, and communication interfaces into a single panel-mounted module.
Key Features
- Digital Microprocessor Control — Advanced MCU-based generator controller with precise measurement and protection algorithms for diesel/gas generator sets
- Multi-Function LCD Display — Backlit graphical LCD with real-time parameter display, alarm indication, and multi-language support
- CANbus J1939 Engine Communication — Direct ECU interface for electronic engines with diagnostic code display and parameter read/write capability
- Comprehensive AC Monitoring — Generator and mains voltage, current, frequency, active/reactive power, power factor, and energy metering
- Configurable Protection — 16 programmable alarm and shutdown thresholds with adjustable delay timers for engine and generator parameters
- PC Configuration Software — Free Rainbow Plus software for parameter setting, monitoring, and firmware updates via USB/RS485
Technical Specifications
| Parameter | Value |
|---|---|
| ———– | ——- |
| Model | DKG155 |
| Type | Digital Generator Controller |
| Power Supply | DC 8V to 35V Continuous |
| Communication | CAN |

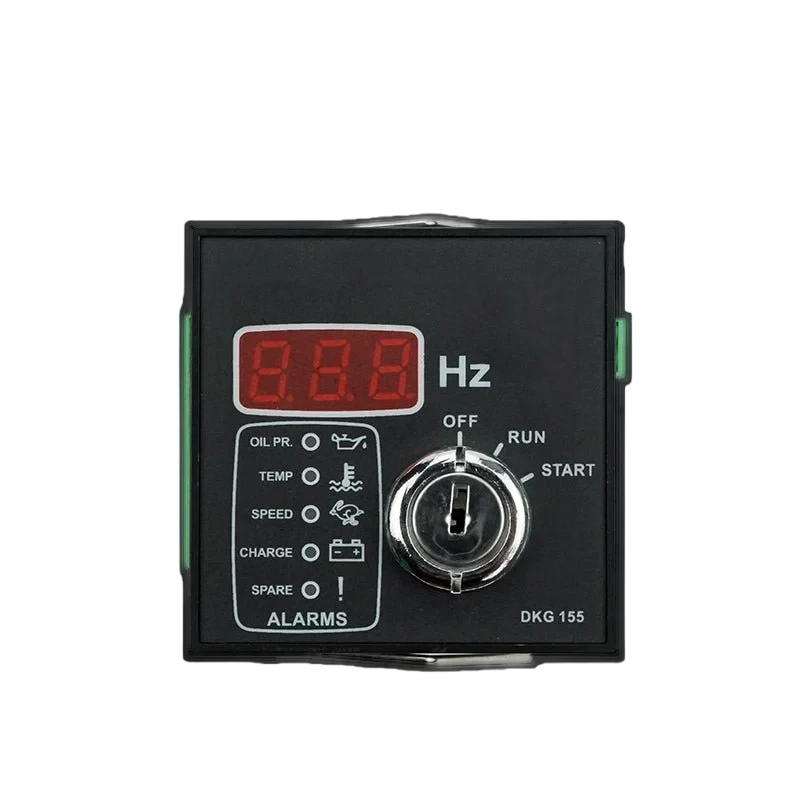

| Display | LED with Backlit LCD |
| Frequency | 50/60 Hz Selectable |
Compatibility
DKG155 adds AMF mains monitoring to DKG105 platform for 10-50kW generators. Panel cutout: 92×92mm. Compatible with: DKG155, DKG105, Datakom DKG-100 series.
Why Choose ZenixPower
- Full-Feature AMF — Automatic mains failure detection, engine start/stop sequencing, and load transfer control
- Multi-Protocol Communication — RS485 Modbus RTU, CAN J1939, and SMS alarm notification for remote monitoring
- Wide DC Supply — Operates from 8V to 35V DC, tolerating cranking voltage drop without reset
- Heavy-Duty Relays — 16A/250VAC rated outputs for fuel, start, and auxiliary control with replaceable relays
- Universal Compatibility — Works with magnetic pickup, alternator sensing, and CAN ECU engine types
- Pre-Configured Files — SmartGen/DSE/ComAp default configurations available to reduce commissioning time
Compatible Generators Single diesel/gas generator sets 10-500kW requiring standard AMF: automatic start on mains failure + automatic stop on mains return.
Competitors DSE3110 (Deep Sea), AMF20 (ComAp), DKG307 (Datakom). All three can independently perform mains detection, auto start/stop, and automatic transfer.
Specification Comparison
| Parameter | DKG155 | DSE3110 | AMF20 | DKG307 |
|---|---|---|---|---|
| Brand | Datakom (Turkey) | Deep Sea (UK) | ComAp (Czech) | Datakom (Turkey) |
| Function | Auto Start + AMF | AMF | AMF | AMF + CANbus |
| Display | LED + LCD | 128×64 LCD | 128×64 LCD | 128×64 graphical LCD |
| Mains Monitoring | 3-phase V/I/f | 3-phase V/I/f | 3-phase | 3-phase |
| CANbus | CAN | J1939, MTU MDEC | No | J1939 |
| Communication | CAN | RS485, RS232 | RS232, USB | RS485, USB |
| Digital Inputs | 5 configurable | 6 | 6 | 8 |
| Relay Outputs | 4 configurable | 4 | 4 | 6 |
| Software | Rainbow Plus (free) | DSE Suite (free) | LiteEdit (free) | Rainbow Plus (free) |
| Price | Contact Us | $80-130 | $70-110 | $80-120 |
