Overview
The DKG105 is a microprocessor-based generator set controller that provides automatic engine start/stop sequencing, AC power monitoring, and alarm protection for single diesel or gas generator units. It integrates digital measurement, programmable logic, and communication interfaces into a single panel-mounted module.
Key Features
- Digital Microprocessor Control — Advanced MCU-based generator controller with precise measurement and protection algorithms for diesel/gas generator sets
- Multi-Function LCD Display — Backlit graphical LCD with real-time parameter display, alarm indication, and multi-language support
- CANbus J1939 Engine Communication — Direct ECU interface for electronic engines with diagnostic code display and parameter read/write capability
- Comprehensive AC Monitoring — Generator and mains voltage, current, frequency, active/reactive power, power factor, and energy metering
- Configurable Protection — 16 programmable alarm and shutdown thresholds with adjustable delay timers for engine and generator parameters
- PC Configuration Software — Free Rainbow Plus software for parameter setting, monitoring, and firmware updates via USB/RS485
Technical Specifications
| Parameter | Value |
|---|---|
| ———– | ——- |
| Model | DKG105 |
| Type | Digital Generator Controller |
| Power Supply | DC 8V to 35V Continuous |
| Communication | CAN |
| Display | LED with Backlit LCD |
| Frequency | 50/60 Hz Selectable |
Compatibility

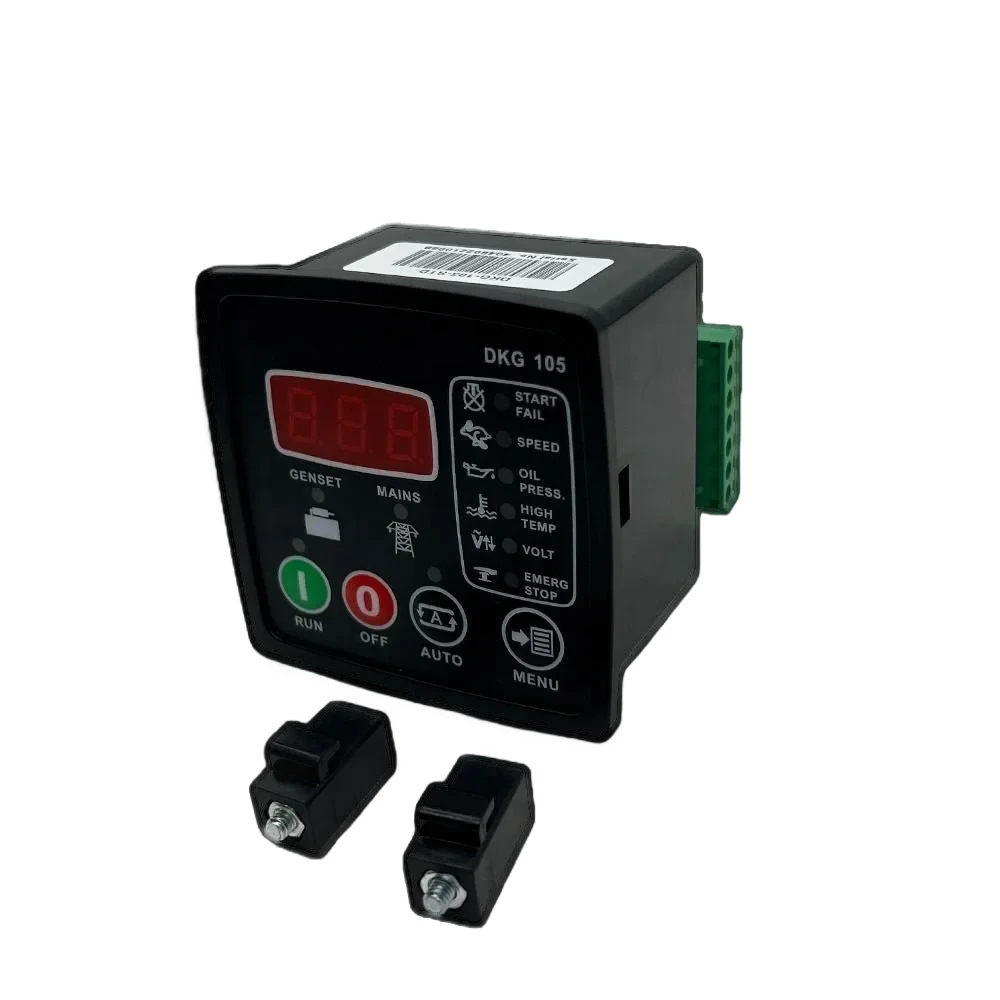

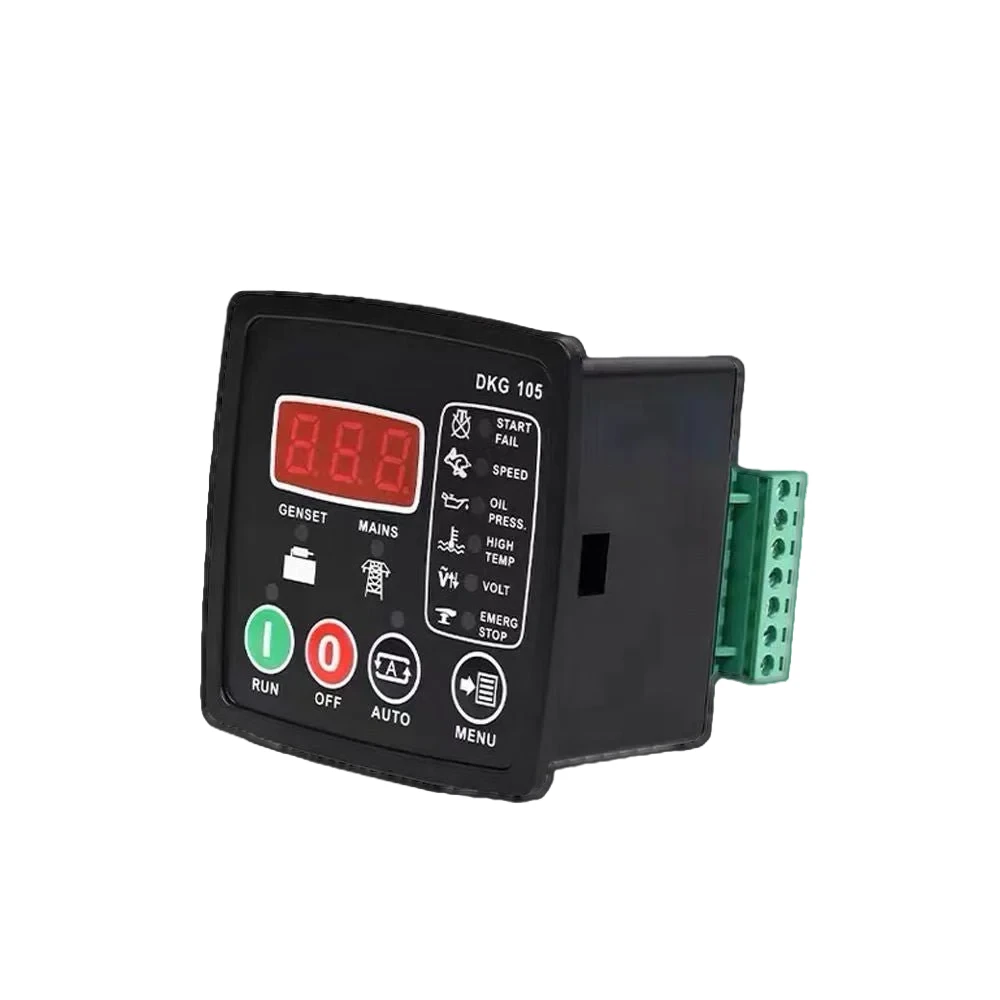

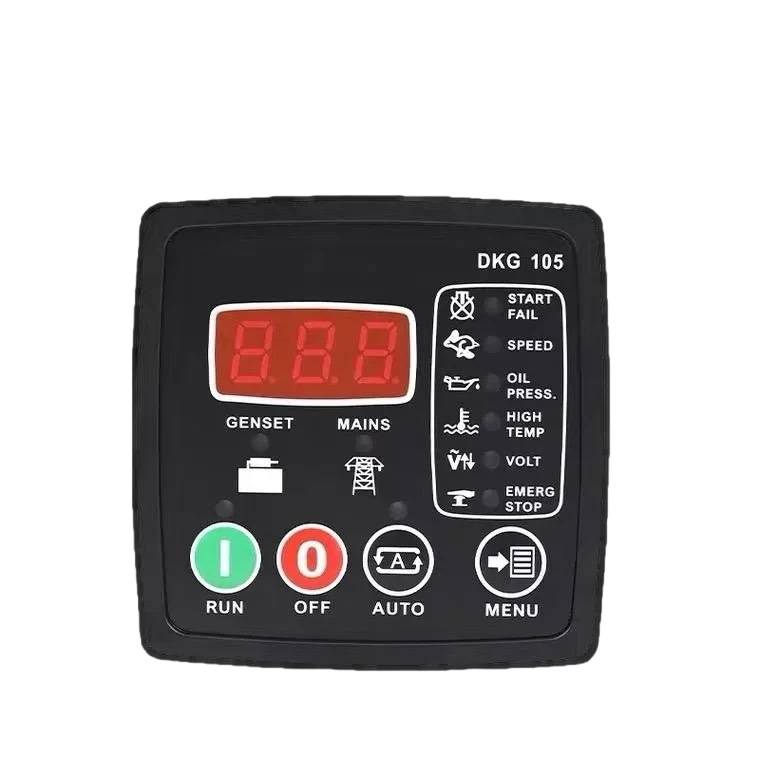

DKG105 is Datakom’s entry-level auto-start controller for small generators 5-30kW. LED display with 4-button interface. Panel cutout: 92×92mm. Compatible with: DKG105, Datakom DKG-100 series.
Why Choose ZenixPower
- Full-Feature AMF — Automatic mains failure detection, engine start/stop sequencing, and load transfer control
- Multi-Protocol Communication — RS485 Modbus RTU, CAN J1939, and SMS alarm notification for remote monitoring
- Wide DC Supply — Operates from 8V to 35V DC, tolerating cranking voltage drop without reset
- Heavy-Duty Relays — 16A/250VAC rated outputs for fuel, start, and auxiliary control with replaceable relays
- Universal Compatibility — Works with magnetic pickup, alternator sensing, and CAN ECU engine types
- Pre-Configured Files — SmartGen/DSE/ComAp default configurations available to reduce commissioning time
Compatible Generators Small diesel/gas generator sets 3-50kW requiring only auto-start and basic protection.
Competitors Entry-level auto-start controllers from each major brand with identical functional positioning, priced $30-60.
Specification Comparison
| Parameter | DKG105 | DSE6110 | MRS11 | DKG105 |
|---|---|---|---|---|
| Brand | Datakom (Turkey) | Deep Sea (UK) | ComAp (Czech) | Datakom (Turkey) |
| Function | Auto Start | Auto Start | Auto Start | Auto Start |
| AMF Mains Monitoring | No | No | No | No |
| Display | LED indicators + 3-digit | LED indicators | 2×16 LCD | LED + 3-digit |
| CANbus | CAN | J1939 | No | No |
| Magnetic Pickup | No | Yes | Yes | Yes |
| Relay Outputs | 3 configurable | 4 | 3 | 3 |
| Price | Contact Us | $40-65 | $30-50 | $25-45 |
