Overview

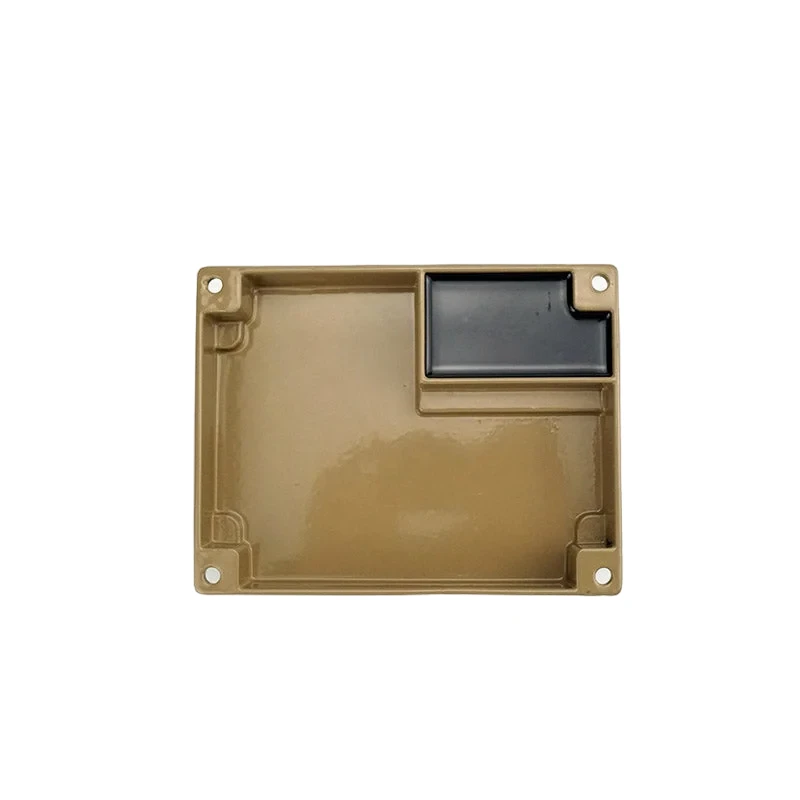

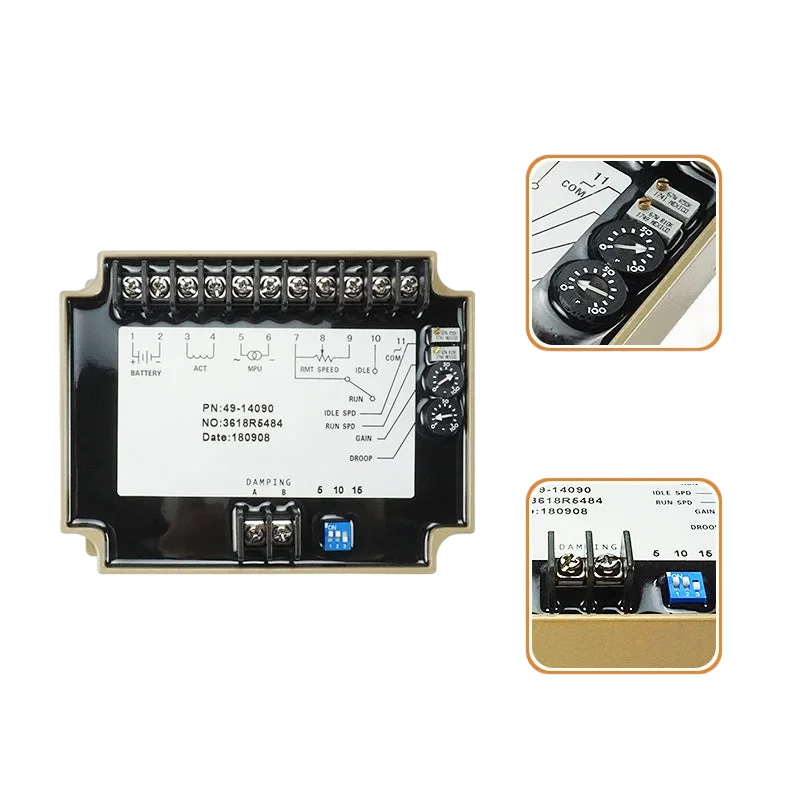

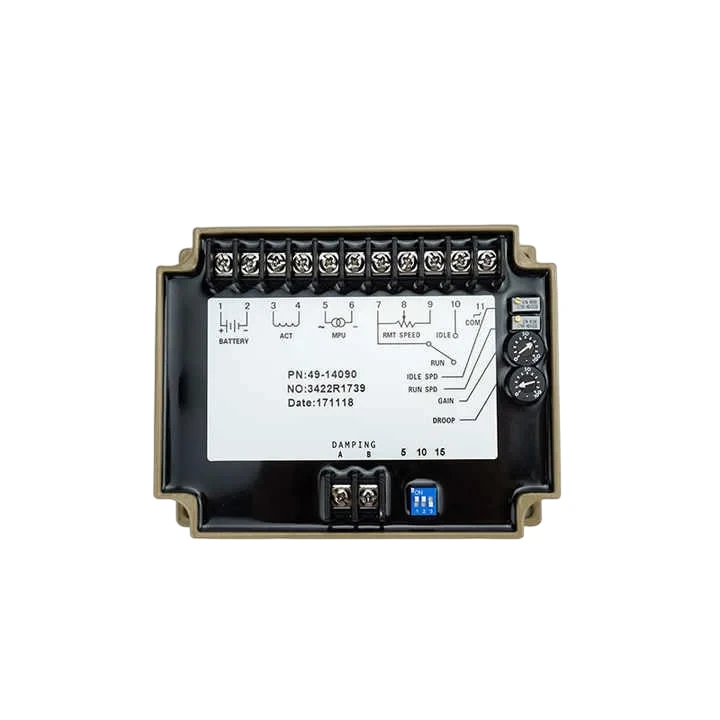

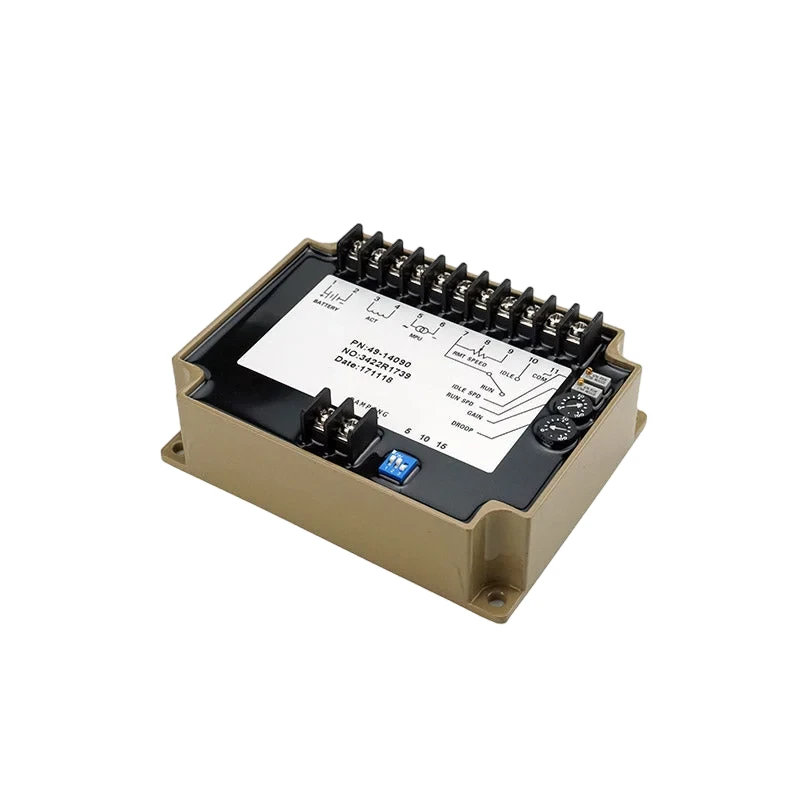

The 4914090 is a Cummins EFC-series electronic speed governor (Normally Closed) with built-in soft-start. The ramp-up time is adjustable from 0 to 30 seconds, allowing the engine to come up to speed gradually and eliminating black-smoke emissions on crank. Designed for ≤350 kW Normally Closed gensets.
Key Features
- Normally Closed with Soft-Start — Combines fail-safe normally-closed output with configurable acceleration ramp for clean, controlled engine starts
- 3500–9500Hz MPU Range — Optimized magnetic pickup input for Cummins mid-to-large bore engines (N14, K19, QSK series)
- Overspeed Protection — Adjustable RPM threshold (1500–7500Hz) with immediate fuel cutoff on speed exceedance
- Transient Response <100ms — Fast recovery from load changes maintains generator frequency within ±0.5Hz
- Multi-Voltage — 12/24/32V DC auto-sensing power supply for flexible system integration
- OEM Compatible — Direct replacement for Cummins 4914090 EFC governor with identical mounting footprint
Technical Specifications
| Parameter | Value |
|---|---|
| ———– | ——- |
| Model | 4914090 |
| Brand | Cummins EFC |
| Type | Electronic Speed Governor (EFC, Soft-Start, NC) |
| Speed Stability | ±0.25% |
| Speed Sensor Input | 2–120 V RMS |
| Actuator Output | Max 1 A |
| Soft-Start Range | 0–30 s adjustable |
| Control Mode | Droop adjustable (1–5%) |
| Power Consumption | 40 mA (excluding actuator) |
| Supply Voltage | 12V / 24V DC, Negative Ground |
| Application | Cummins ≤350 kW Normally Closed genset |
Compatibility
Compatible with Cummins NTA855, 6CT, 6BT series ≤350 kW gensets using Normally Closed EFC actuators.
Why Choose ZenixPower
- Configurable Ramp Time — 0–30 s soft-start for clean crank
- Anti-Interference — Stable operation in auto-start gensets
- Reverse Polarity Protected — Survives accidental battery reversal
Competitors GAC ESD5500E — world’s most popular universal governor | KUTAI EG3000 — value alternative | Fortrust C2002 — budget-friendly
Specification Comparison
| Parameter | 4914090 | GAC ESD5500E | KUTAI EG3000 | Fortrust C2002 |
|---|---|---|---|---|
| Brand | Cummins (USA) | GAC (USA) | KUTAI (Taiwan) | Fortrust (China) |
| Function | Electronic Speed Governor (EFC, Soft-Start, NC) | Electronic + Overspeed | Closed-loop Electronic | Electronic + Soft-Start |
| DC Supply | — | 12/24V DC | 12/24V DC | 12/24V DC |
| Actuator Output | Max 1 A | 10A continuous | 0.5–15A | 10A max |
| Speed Stability | ±0.25% | ±0.25% | ±0.5% | ±0.25% |
| Speed Range | — | 600–9500 Hz | 600–9500 Hz | 500–9000 Hz |
| Overspeed Protection | Built-in | Built-in | Optional | Built-in |
| Paralleling | No | Optional | No | No |
| Price | Contact Us | $280–450 | $180–300 | $120–220 |
