Overview

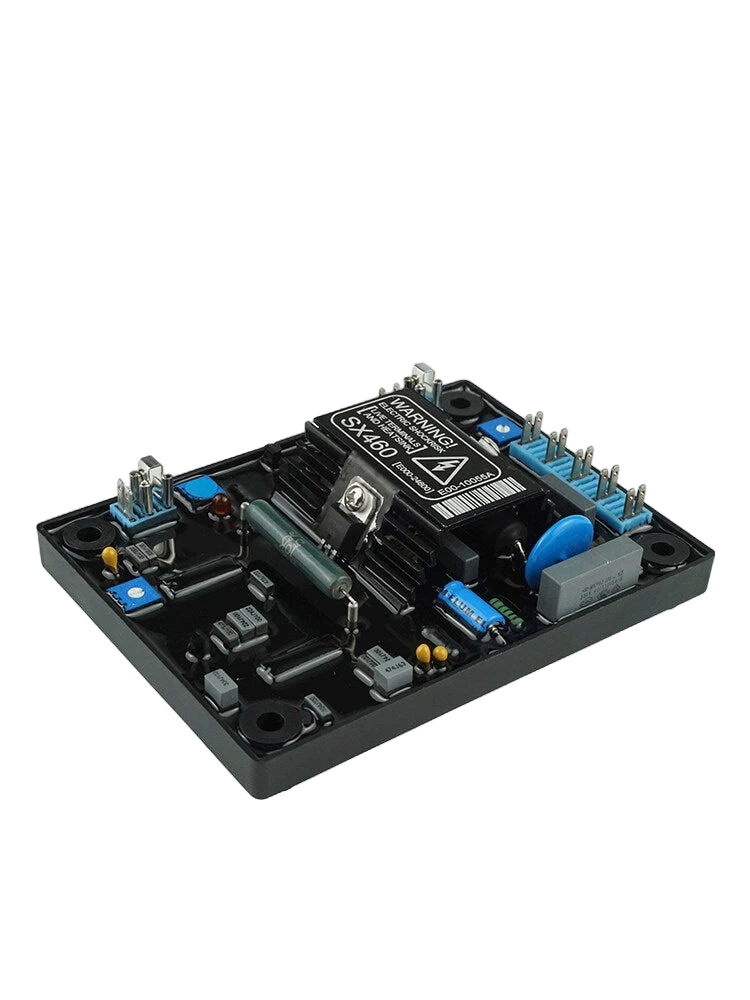

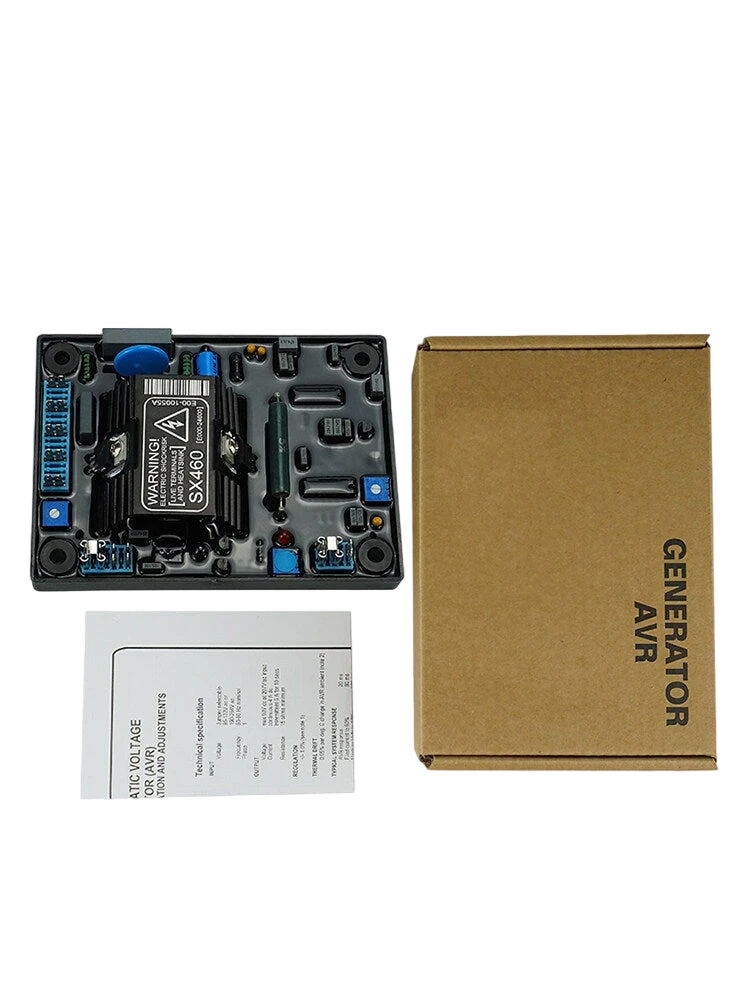

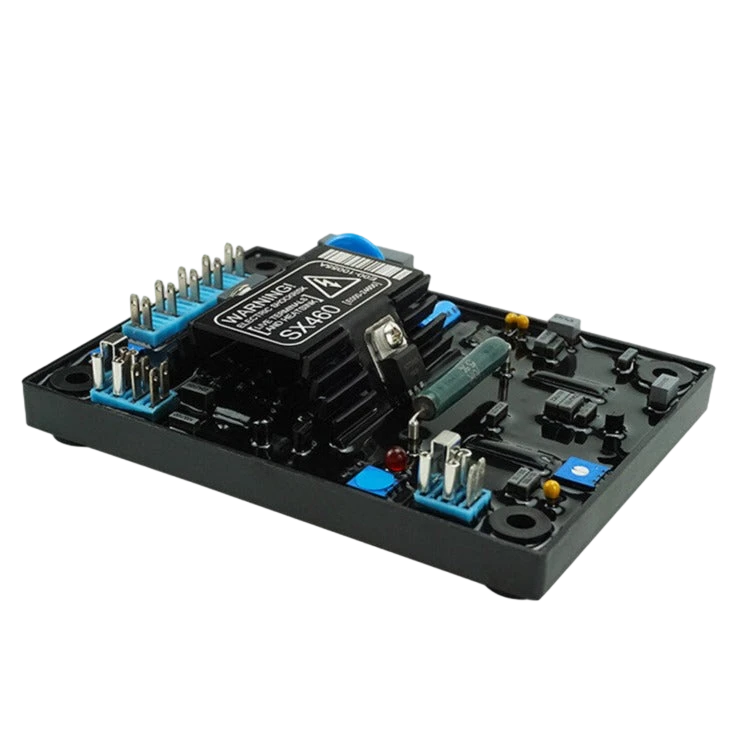

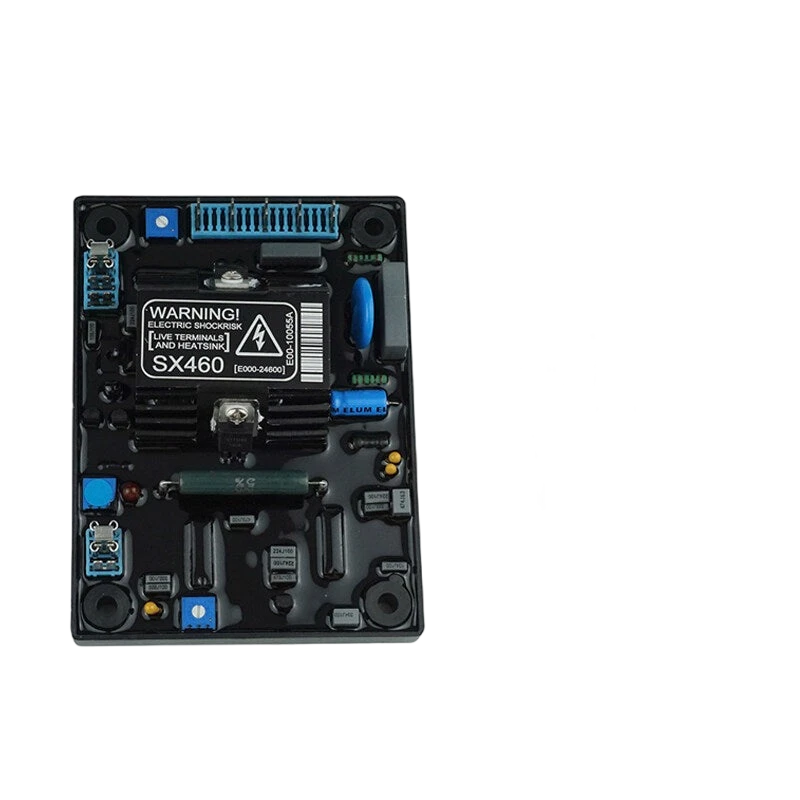

The SX460 is an Automatic Voltage Regulator (AVR) that maintains the generator output voltage within precise limits by controlling the exciter field current. It continuously samples the generator output voltage and adjusts excitation to compensate for load changes, engine speed variations, and temperature drift.
Key Features
- Self-Excited Design — No external PMG required, simplifies installation and reduces system cost
- ±1% Regulation Accuracy — Stable voltage output for sensitive equipment and industrial loads
- Jumper-Selectable Input — 120VAC (95-132V) or 240VAC (190-264V), adaptable to any configuration
- Dual Frequency — 50/60 Hz jumper selectable for worldwide generator compatibility
- 6A Surge Capacity — Handles intermittent excitation demands for motor starting and load switching
- Under-Frequency Protection — Automatic voltage reduction to protect connected equipment
- Compact Form Factor — Easy installation in generator control panels
Technical Specifications
| Parameter | Value |
|---|---|
| Sensing Input | 120VAC (95-132V) or 240VAC (190-264V), 1-phase 2-wire |
| Frequency | 50/60 Hz (jumper selectable) |
| Output Voltage | Max 90VDC at 207VAC input |
| Output Current | Continuous 4A, Intermittent 6A for 10 seconds |
| Regulation Accuracy | <±1% (with 4% engine governing) |
| Excitation Type | Self-excited, no PMG required |
| Under-Frequency Protection | Yes |
Compatibility
- Wide compatibility with most brushless generator alternators
- Compatible with Stamford, Marathon, Leroy-Somer, Mecc Alte and other major brands
- Suitable for generators 1-500 kW
- Compatible with: Part.: SX460, AS460
Why Choose ZenixPower
- Tight Voltage Regulation — <±1% RMS regulation ensures stable generator output under 0-100% load transients
- Fast Response — Sub-0.5 second recovery time prevents voltage dips during motor starting and load switching
- Self-Excited Only — No external PMG required, simplifies installation and reduces system cost
- Built-in Protections — Under-frequency roll-off, over-excitation limiting, and soft-start ramp as standard
- Drop-In Replacement — Terminal layout and mounting dimensions match STAMFORD, Leroy-Somer, Marathon, and Mecc Alte OEM AVRs
- Pre-Calibrated — Each AVR ships with factory-default potentiometer settings for immediate plug-and-play operation
Specification Comparison
Compatible Generators Stamford BC/UC series 50-200kW self-excited brushless generators, compatible with most Chinese-made brushless generators.
Competitors AVC63-4 (Basler), EA05A (KUTAI). All three can be directly substituted on Stamford BC/UC generators.
| Parameter | SX460 | AVC63-4 | EA05A |
| Brand | Stamford (UK) | Basler (USA) | KUTAI (Taiwan) |
| Output Current | 4A cont. / 6A forcing 1 min | 4A cont. / 6A forcing 1 min | 5A cont. / 7A intermittent 10s |
| Regulation | ±1% | ±1% | ±0.5% |
| Rectification | Half-wave thyristor | Full-wave rectification | Half-wave thyristor |
| Excitation Type | Self-excited shunt | Self-excited shunt | Self-excited shunt |
| Voltage Sensing | 190-264VAC single voltage | 95-139V or 190-277V dual voltage | 220/380/440V DIP triple voltage |
| Frequency | 50/60Hz auto | 50/60Hz auto | 50/60Hz DIP selectable |
| Build-up Voltage | 6VAC residual | 6VAC residual | 5VAC residual |
| UF Protection | Yes | Yes | Yes |
| Over-Excitation Shutdown | No | Yes (95VDC threshold) | Yes |
| Enclosure | Standard open-frame | Potted/sealed | Standard open-frame |
| Min Field Resistance | 15Ω | 15Ω | 15Ω |
| Market Price | $25-45 | $35-55 | $25-38 |
Selection Advice
The SX460 is the most widely installed AVR model globally. Its advantages: lowest price, easiest parts availability, universal electrician familiarity. Downsides: half-wave rectification inferior transient response, no over-excitation shutdown, open-frame shorter life in humid environments. Best for dry indoor generators on a budget.
The AVC63-4: full-wave rectification (~40% lower ripple), potted construction for moisture/dust/vibration protection. $10-15 more but 30-50% longer life. Recommended for tropical/coastal/mining environments.
The EA05A: only one achieving ±0.5% and 5A output — half-tier above. DIP triple voltage = one SKU for three markets. Similar price to SX460, stronger specs. Lower Western brand recognition.
