Overview

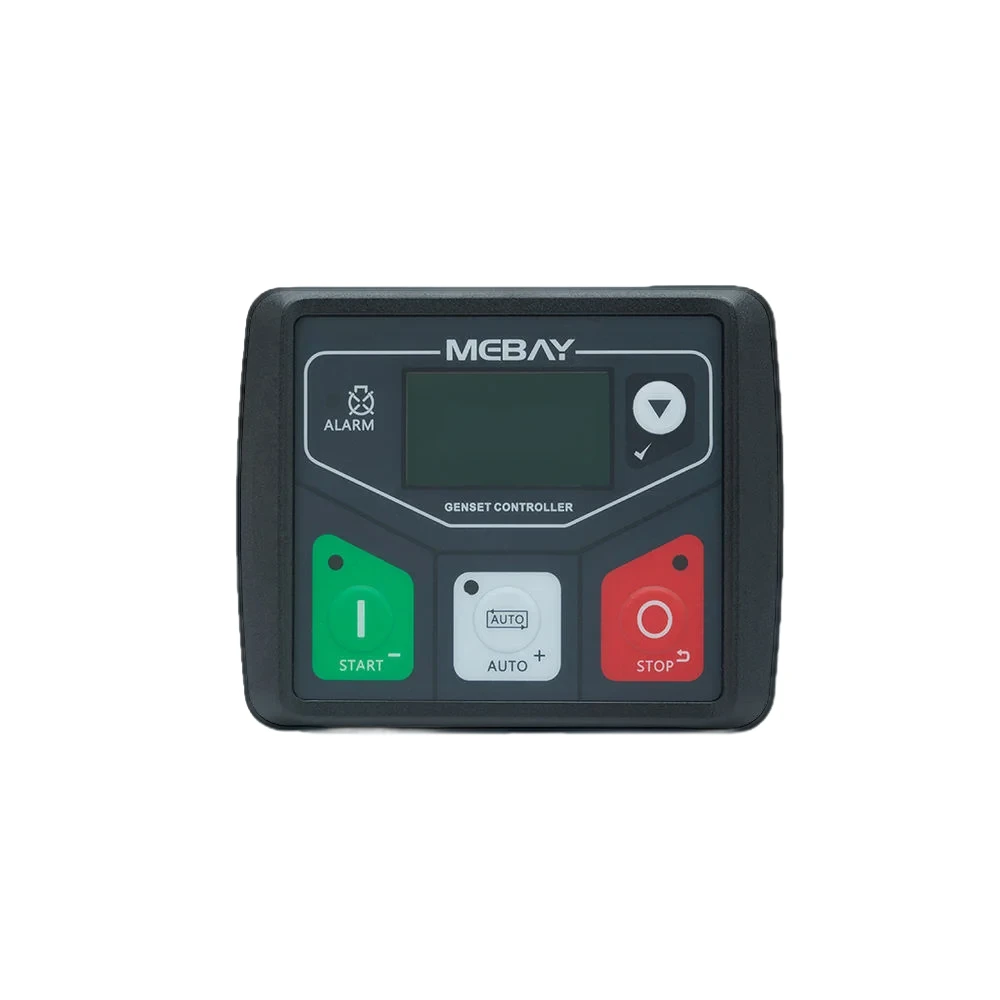

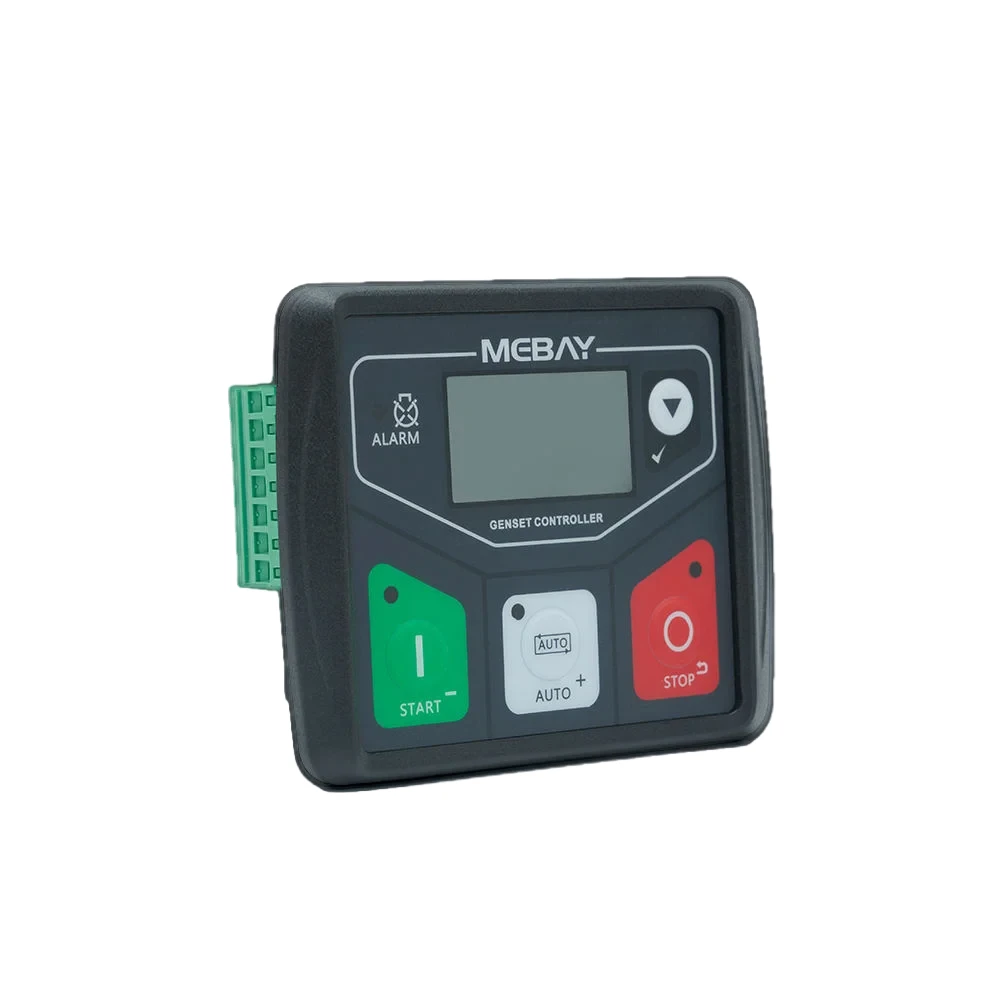

The DC30D is a microprocessor-based generator set controller that provides automatic engine start/stop sequencing, AC power monitoring, and alarm protection for single diesel or gas generator units. It integrates digital measurement, programmable logic, and communication interfaces into a single panel-mounted module.
Key Features
- Microprocessor Control — Digital MCU-based module with precise engine start/stop sequencing and generator protection for single diesel/gas generator sets
- True RMS AC Monitoring — Generator and mains voltage, current, frequency, kW, kVA, PF measurement with programmable CT ratios and alarm thresholds
- CANbus J1939 Engine Integration — Direct communication with electronic engine ECUs for parameter display and diagnostic trouble code reading
- Multi-Mode Operation — Manual, automatic, and test modes with configurable transfer sequences and programmable crank/rest cycles

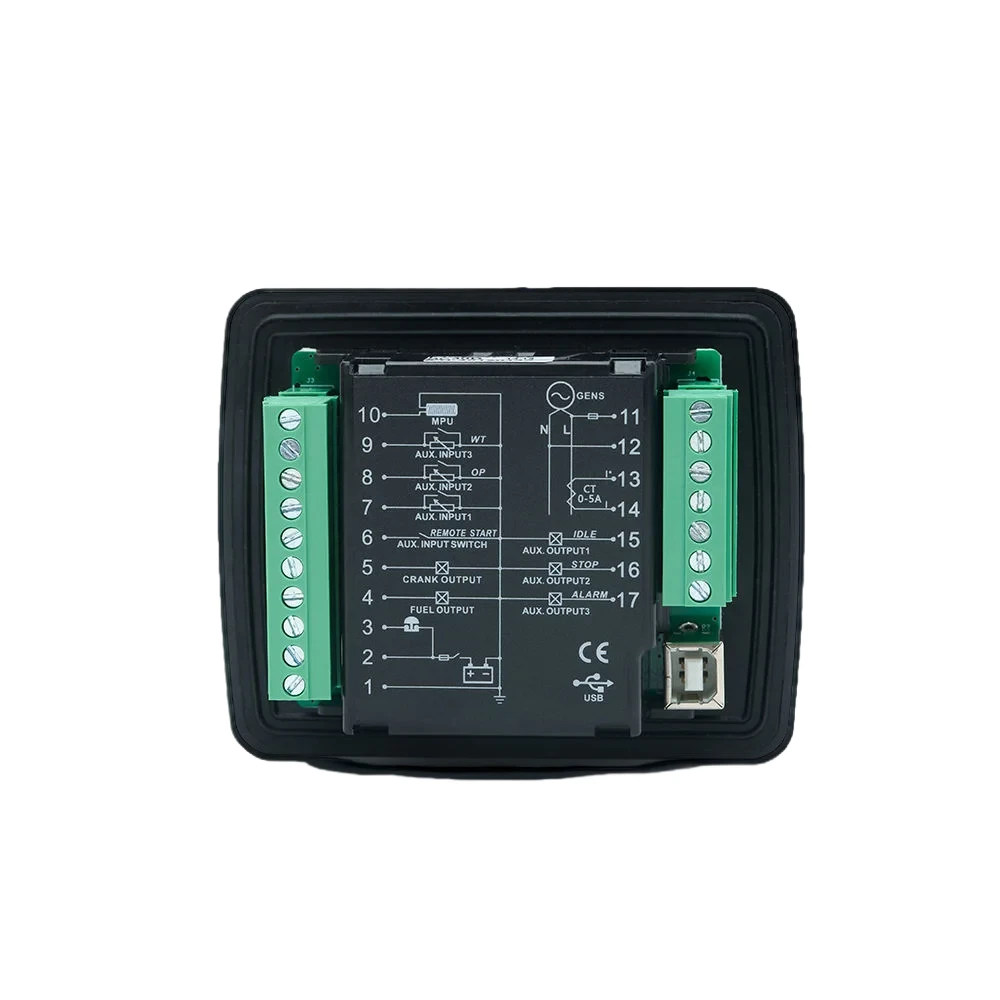

- Flexible I/O — All digital inputs and relay outputs user-configurable for custom applications including pre-heat, ventilation, annunciation, and remote signaling
- Event History — Onboard real-time clock with event log for commissioning, troubleshooting, and maintenance tracking
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DC30D |
| Type | Digital Generator Controller |
| DC Supply | 8-36V DC |
| AC Voltage Range | 30-360V L-N |
| Panel Cutout | 78 x 66 mm |
| Operating Temp | -25°C to +65°C |
| Communication | USB, RS485, CANbus (J1939) |
| Protection Functions | Over/Under Volt, Over/Under Freq, Over Speed, Over Current, Low Oil Press, High Water Temp |
| Display | LCD 132×64 Backlit |
| Frequency | 50/60 Hz Selectable |
Compatibility
DC30D is Mebay’s dual-unit AMF controller managing two generators with automatic load transfer for 10-500kW systems. Panel cutout: 220×160mm. Compatible with: DC30D, Mebay dual-unit control systems.
Why Choose ZenixPower
- Full-Feature AMF — Automatic mains failure detection, engine start/stop sequencing, and load transfer control
- Multi-Protocol Communication — RS485 Modbus RTU, CAN J1939, and SMS alarm notification for remote monitoring
- Wide DC Supply — Operates from 8V to 35V DC, tolerating cranking voltage drop without reset
- Heavy-Duty Relays — 16A/250VAC rated outputs for fuel, start, and auxiliary control with replaceable relays
- Universal Compatibility — Works with magnetic pickup, alternator sensing, and CAN ECU engine types
- Pre-Configured Files — SmartGen/DSE/ComAp default configurations available to reduce commissioning time
Compatible Generators Medium to large generator sets 50-5000kW requiring large color display, remote monitoring, and rich communication capabilities.
Competitors DSE7320 (Deep Sea 7″ large screen), HGM9520 (SmartGen touchscreen), DKG309 (Datakom SMS alarm).
Specification Comparison
| Parameter | DC30D | DSE7320 | HGM9520 | DKG309 |
|---|---|---|---|---|
| Brand | Mebay (China) | Deep Sea (UK) | SmartGen (China) | Datakom (Turkey) |
| Display | 132×64 graphical LCD | 7″ TFT 800×480 | 7″ TFT touchscreen | 132×64 graphical LCD |
| CANbus | J1939 | J1939, CANopen | J1939, CANopen (dual CAN) | J1939, CANopen |
| Communication | RS485, USB | RS485, USB | RS485, USB, Ethernet, Modbus, SMS, 4G | RS485, USB, Ethernet, SMS |
| PLC Logic | No | No | Configurable ladder | No |
| SMS Alarm | No | No | Yes | Yes |
| 4G Remote | External needed | External DSE Gateway needed | Built-in | External needed |
| Digital Inputs | 10 configurable | 8 | 12 | 10 |
| Price | Contact Us | $200-300 | $250-350 | $100-160 |
