Overview

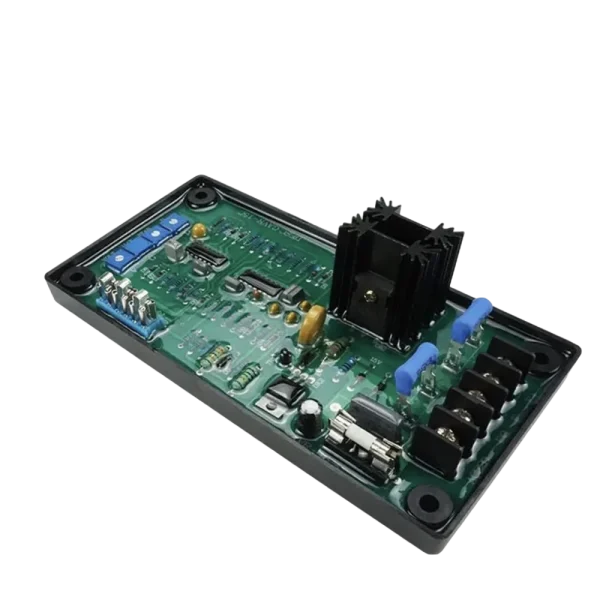

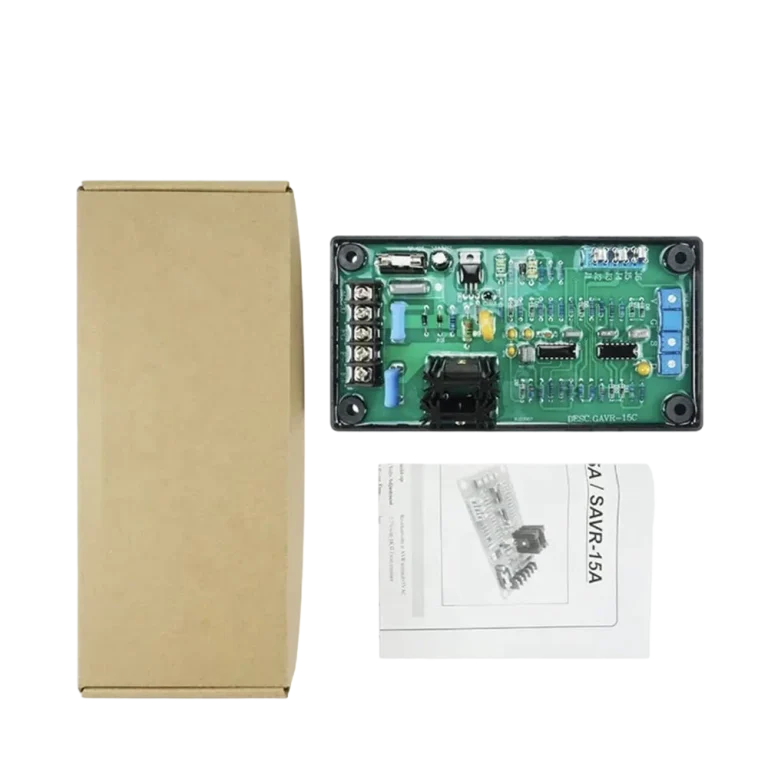

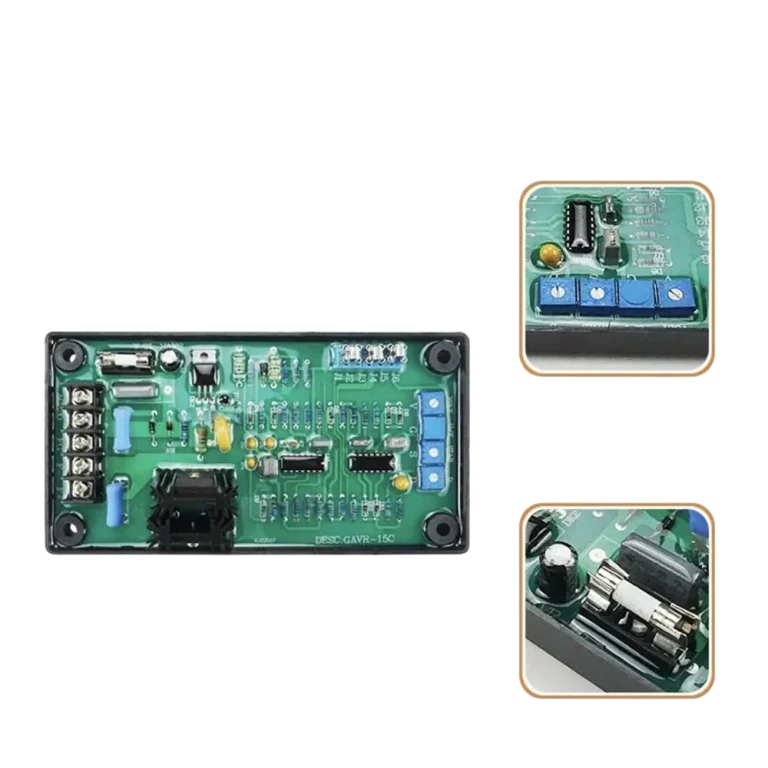

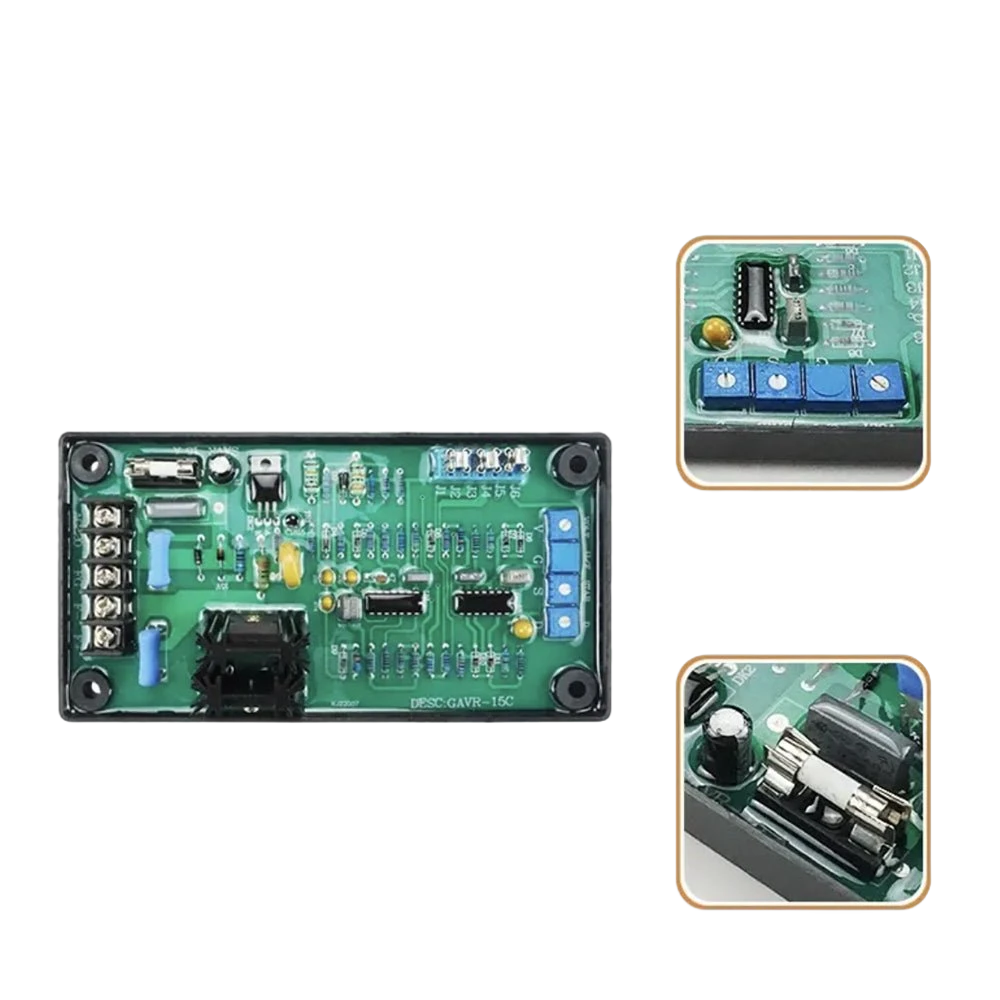

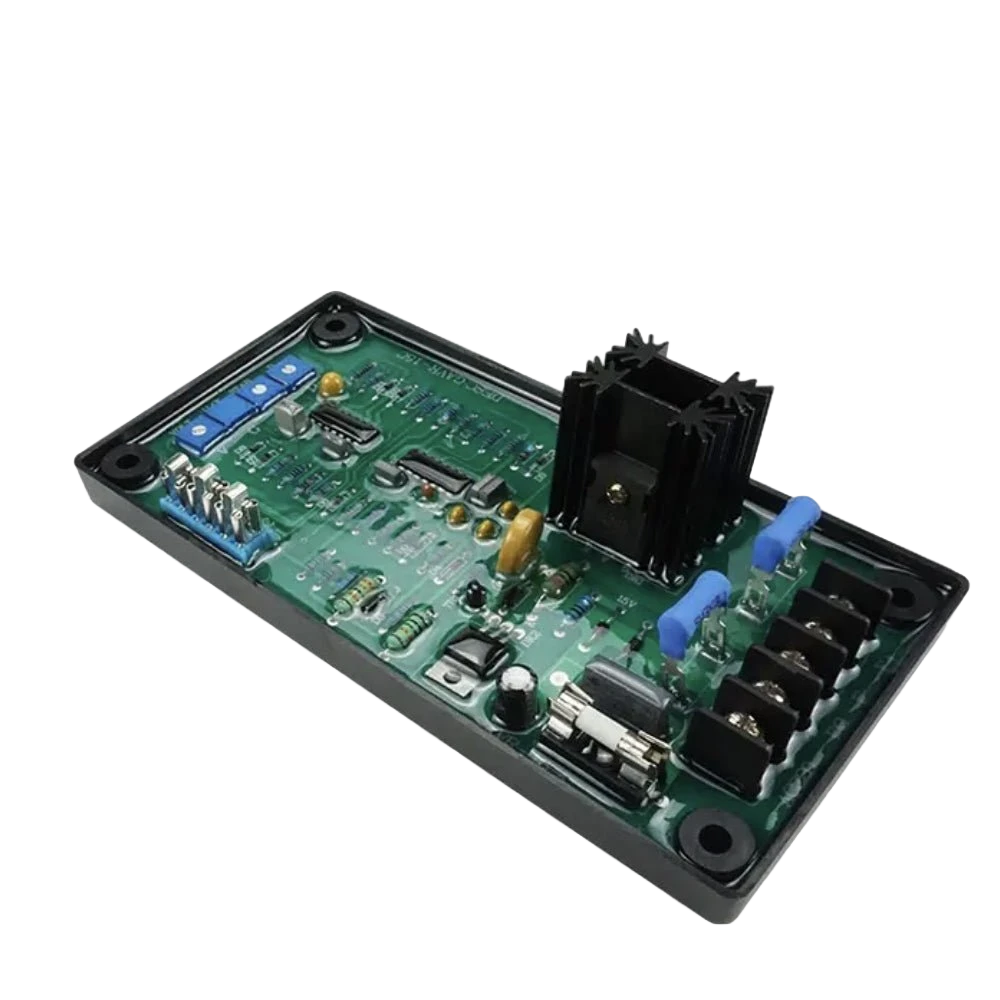

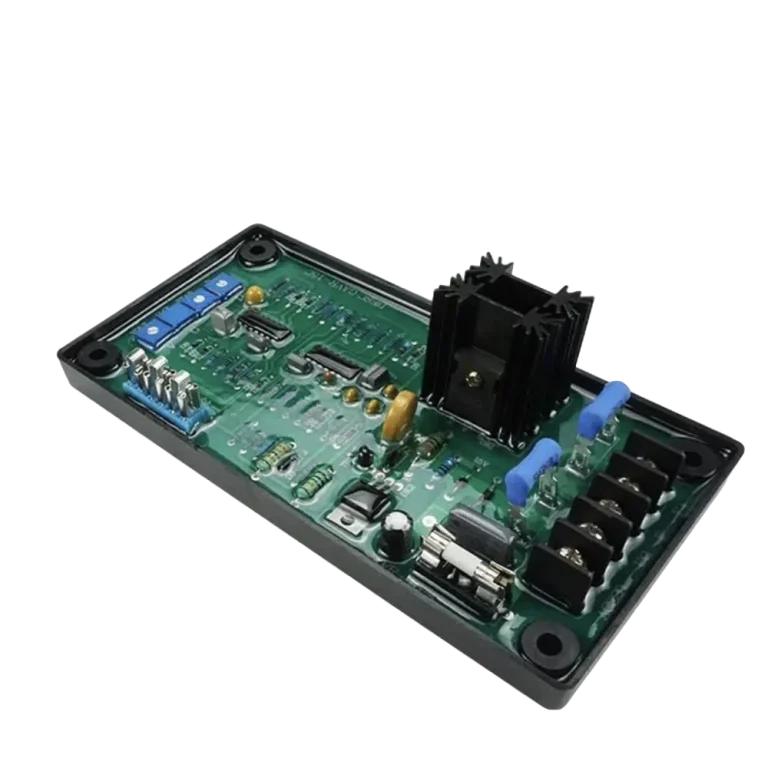

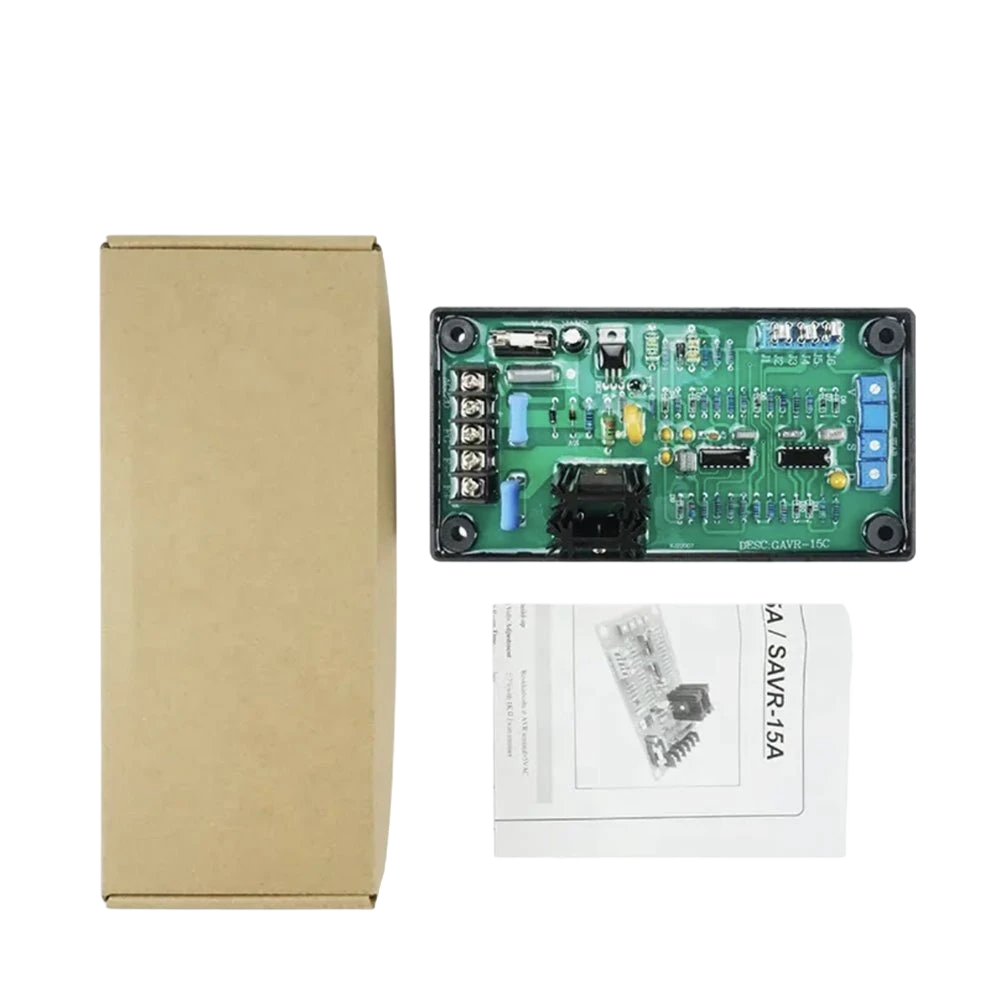

The GAVR-15C is a universal high-current 15A automatic voltage regulator, an upgraded variant of the GAVR-15B with enhanced protection features.
Key Features
- 15A Continuous Output — Half-wave phase-controlled thyristor
- Under-Speed Protection — Prevents low-RPM damage
- Sensing Loss Protection — Safe shutdown on signal failure
- Soft Start Ramping — Controlled voltage buildup
- ±0.5% Regulation — High-precision voltage control
- Wide Frequency Range — Compatible with 50/60Hz worldwide
- Compact Industrial Design — Easy panel integration
- Over-Excitation Limiting — Protects generator field windings
Technical Specifications
| Parameter | Value |
|---|---|
| Sensing Input | 220/380/440VAC, 1-phase 2-wire |
| Output Voltage | Max 90VDC @ 240VAC input |
| Output Current | Continuous 15A |
| Regulation Accuracy | <±0.5% |
| Frequency | 50/60 Hz nominal |
| Excitation Type | Half-wave phase-controlled thyristor |
| Soft Start | Yes |
| UF Protection | Yes, with underspeed protection |
| Sensing Loss Protection | Yes |
| EMI Suppression | Built-in |
Compatibility
Universal fit for large brushless generators.
Why Choose ZenixPower
- 15C enhanced version with upgraded protection
- Maximum 15A output for largest generators
Specification Comparison
Compatible Generators 10-30kW brushless generators — the most widely used power range for the GAVR series.
Competitors Three models with progressive upgrades, plus the simplified AVR15A.
| Parameter | GAVR-15A | GAVR-15B | GAVR-15C | AVR15A |
| Output | 15A | 15A | 15A | 15A |
| Control | Half-wave thyristor | Half-wave SCR improved | Half-wave SCR enhanced | Standard |
| Low-Speed Protection | No | No | Yes | No |
| EMI Filtering | Basic | Enhanced | Enhanced | Basic |
| Regulation | ±1% | ±1% | ±1% | ±1% |
| Price | $15-25 | $18-28 | $20-30 | $10-18 |
Selection Advice
The GAVR-15C is widely regarded as the highest-quality model in the domestic GAVR series. Compared to the 15A, it adds low-speed protection (automatically reduces voltage when generator RPM drops too low to prevent equipment damage) and enhanced EMI filtering for only $5 more. The GAVR-15B is the mid-range option. The AVR15A is a simplified version with no protection features and no filtering — only suitable for minimum-budget scenarios.
