Overview

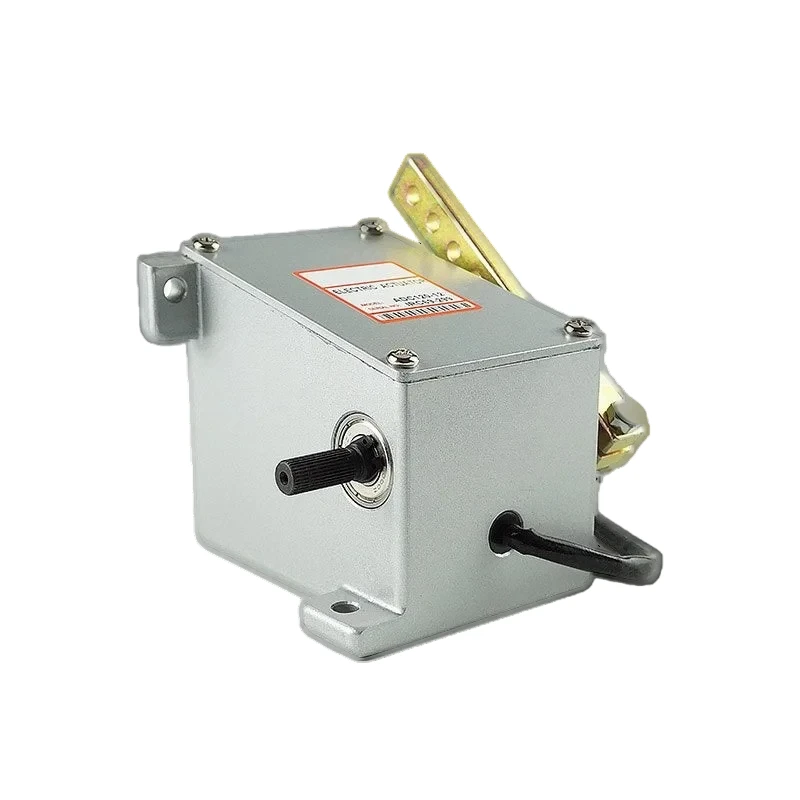

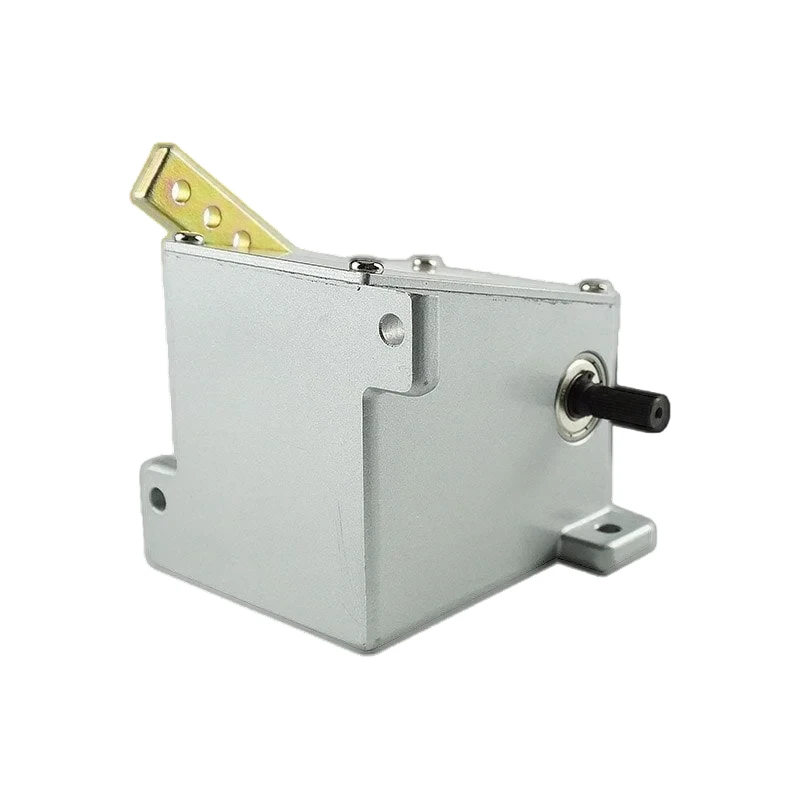

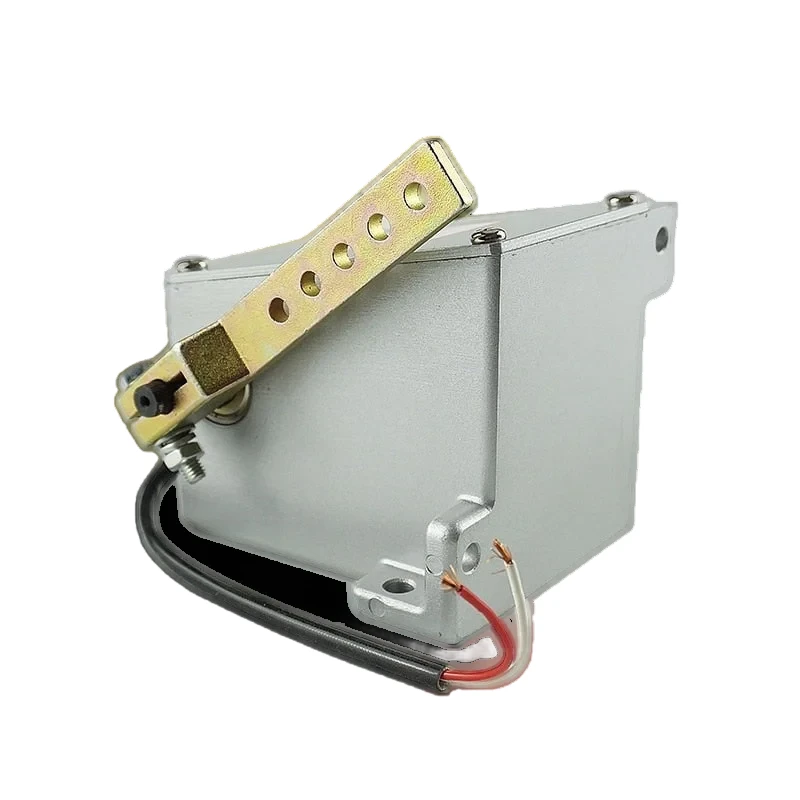

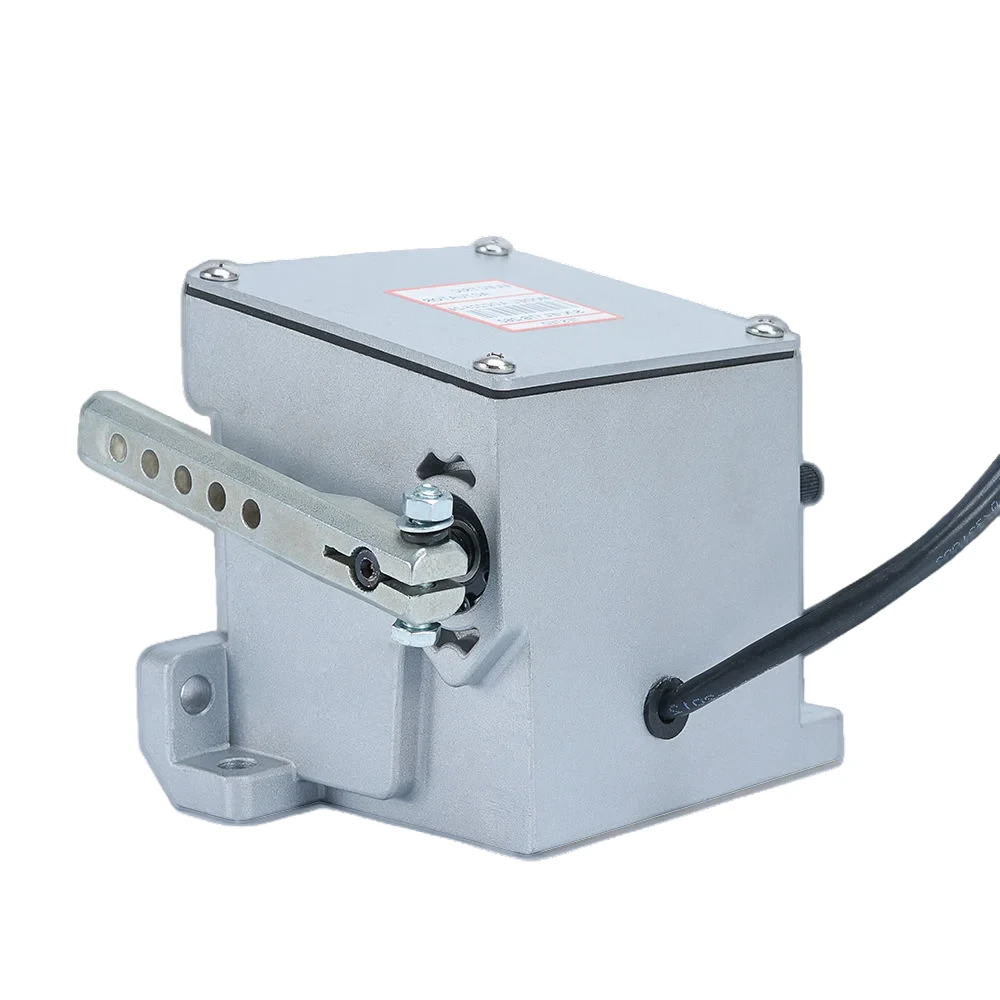

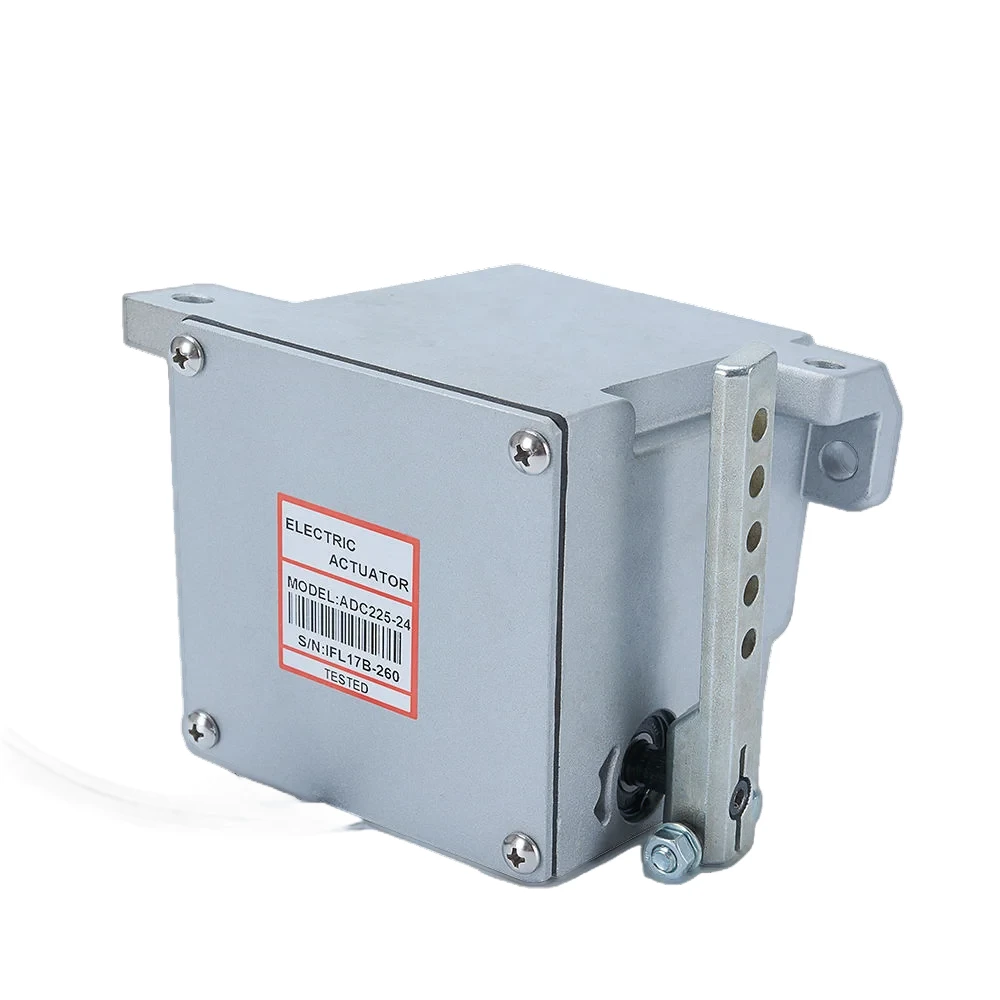

The ADC225 is a GAC external electric actuator for high-current applications. It is the heavy-duty variant of the ADC series, delivering up to 8 A for large diesel and gas generator engines.
Key Features
- Medium-Duty Electric Actuator — GAC external actuator for small diesel engines requiring precise fuel metering and fast response times
- 25° Angular Travel — Optimized stroke range for common fuel injection pump rack configurations on Perkins, Cummins, and Deutz engines
- Bidirectional Operation — Configurable push or pull action for flexible fuel pump rack interface without mechanical modifications
- Standard GAC Connector — Weatherproof 4-pin Deutsch connector with pre-wired harness for immediate integration with GAC ESD governor systems
- Durable Construction — Aluminum housing with sealed bearings rated for continuous-duty generator applications in harsh environments

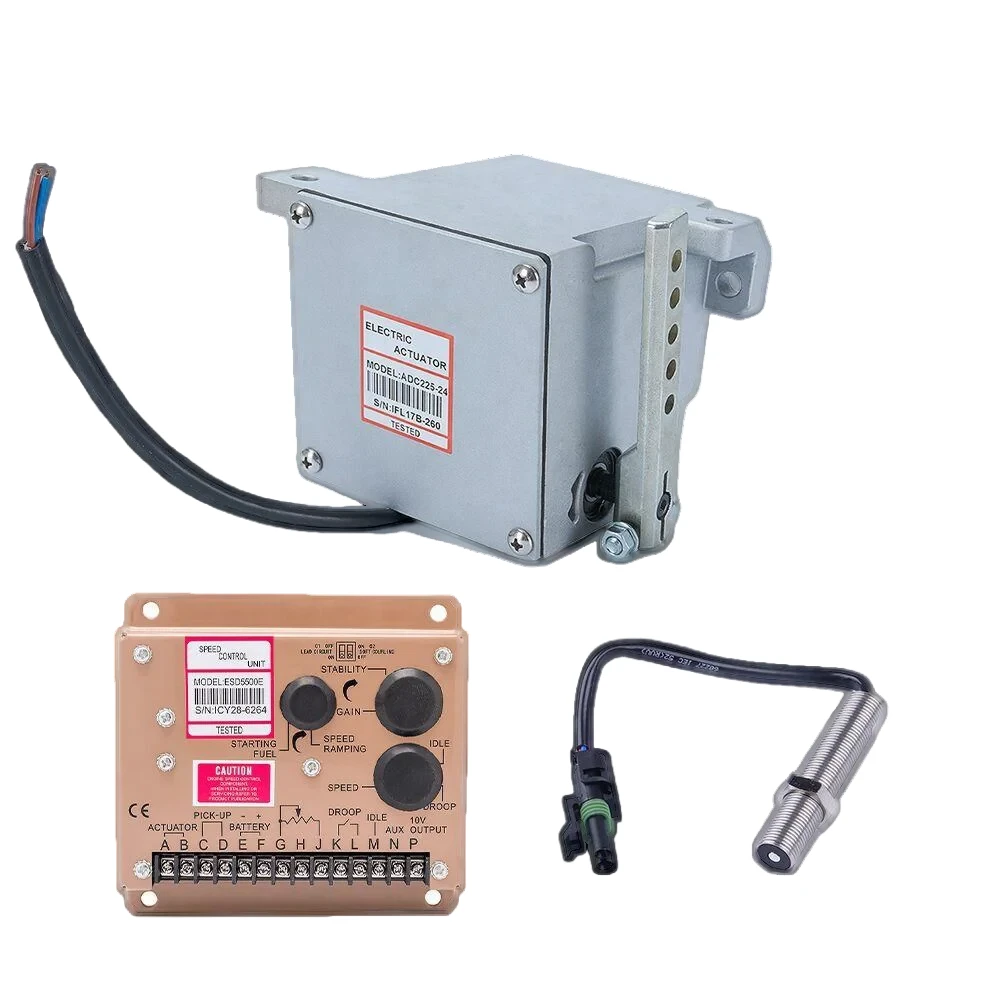

- Governor Compatibility — Compatible with GAC ESD5500E, ESD5550E, ESD5111; KUTAI EG2000/EG3000; and Fortrust C2002 electronic speed governors
Technical Specifications
| Parameter | Value |
|---|---|
| ———– | ——- |
| Model | ADC225 |
| Brand | GAC |
| Type | External Electric Actuator (Heavy-Duty) |
| Supply Voltage | 12 V DC / 24 V DC |
| Normal Operating Current | 4.0 A @ 12V / 2.0 A @ 24V |
| Max Continuous Current | 8 A @ 12V / 4 A @ 24V |
| Available Torque | 2.2 lb-ft |
| Operating Stroke | 25 ±1 degree |
| Response Time | <45 ms (10%–90%) |
| Mounting | Any position, vertical preferred |
| Application | Diesel / Gas Generator Engine Speed Control |
Compatibility
Compatible with GAC ESD, Fortrust ESG, KUTAI EG, and Cummins EFC governor systems. Suitable for engines in the 100–500 kW range.
Why Choose ZenixPower
- 100% Factory Tested — Every unit verified for stroke, force, and electrical parameters
- 12-Month Warranty — Full replacement guarantee
- Fast Shipping — In-stock actuators ship within 24 hours
- Technical Support — Installation and compatibility assistance

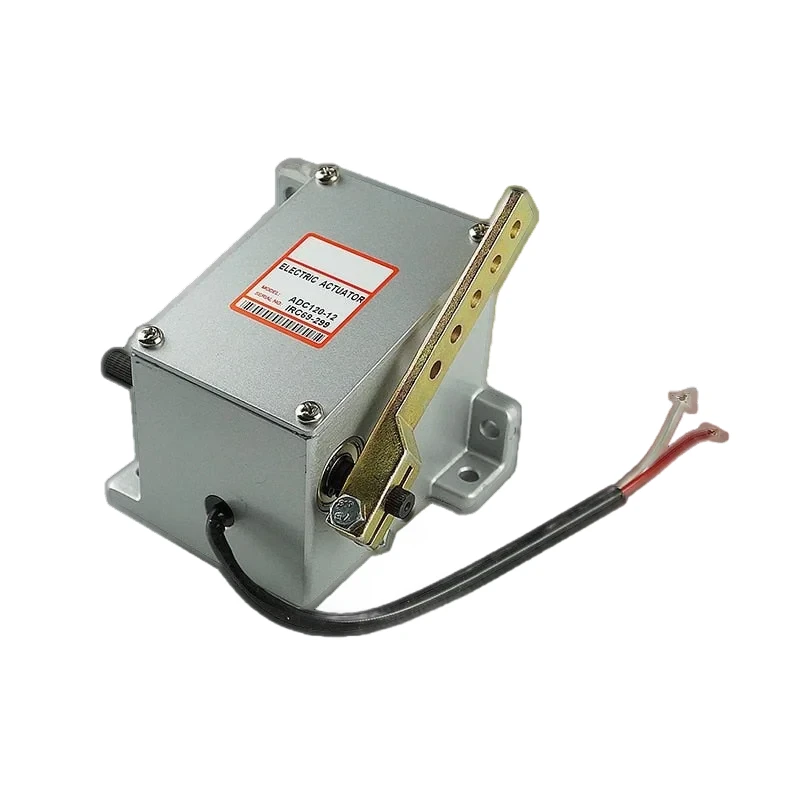

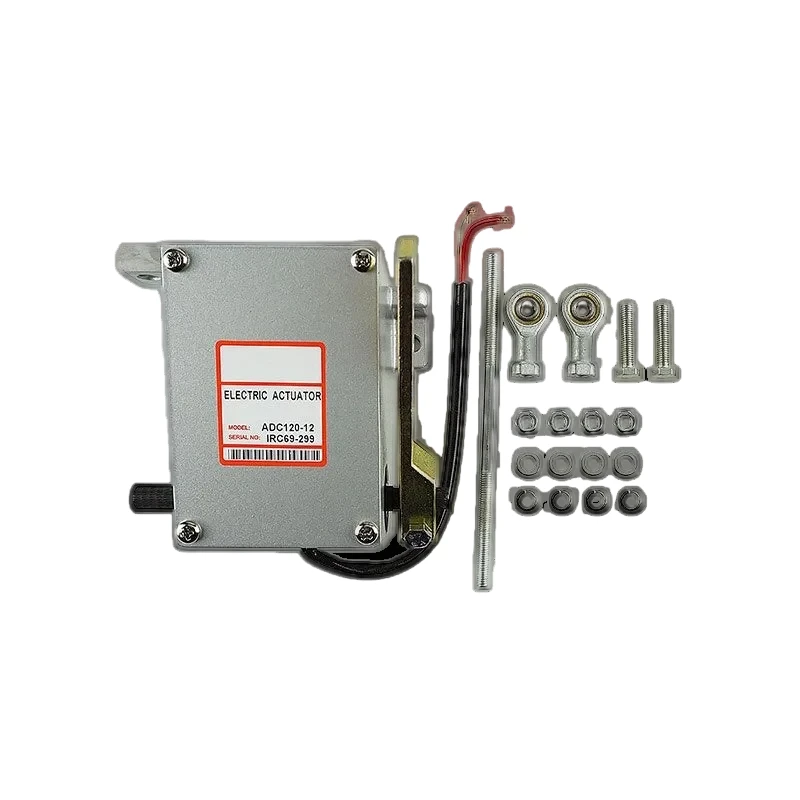

Competitors GAC ADC120 — external actuator | GAC ADC175 — pump-mounted actuator | Cummins 3408326 — high-flow EFC
Specification Comparison
| Parameter | ADC225 | GAC ADC120 | GAC ADC175 | Cummins 3408326 |
|---|---|---|---|---|
| Brand | GAC (USA) | GAC (USA) | GAC (USA) | Cummins (USA) |
| Type | External Electric Actuator (Heavy-Duty) | External Electric | Pump-Mounted | EFC Electric |
| Torque | — | 1.0 lb-ft | 6.2 lb-ft | High-flow |
| Stroke | — | 25° rotary | 0.80 in linear | Linear |
| DC Supply | — | 12/24V DC | 24V DC | 24V DC |
| Valve Type | — | NO/NC selectable | NO | NC (Normally Closed) |
| Power Range | — | 100–500 kW | 100–500 kW | 400–800 kW |
| Price | Contact Us | $180–280 | $250–400 | $300–500 |
