Overview

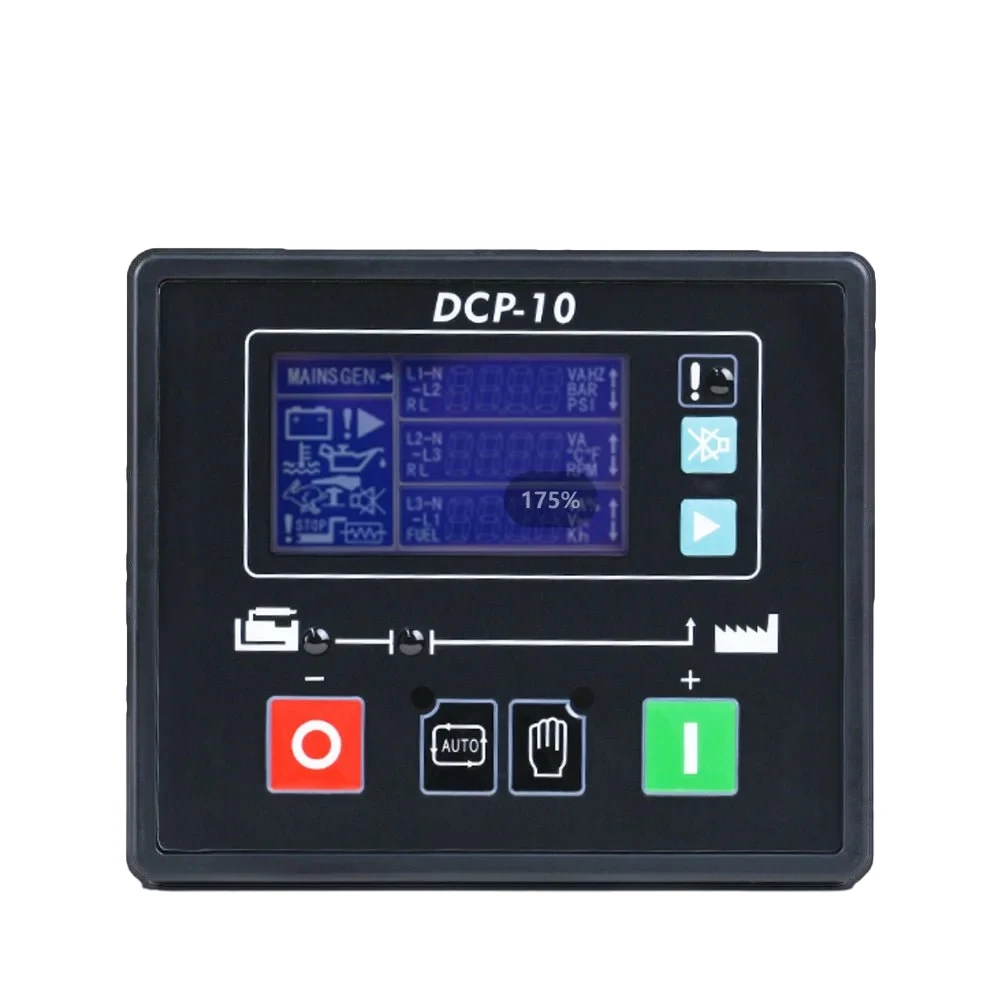

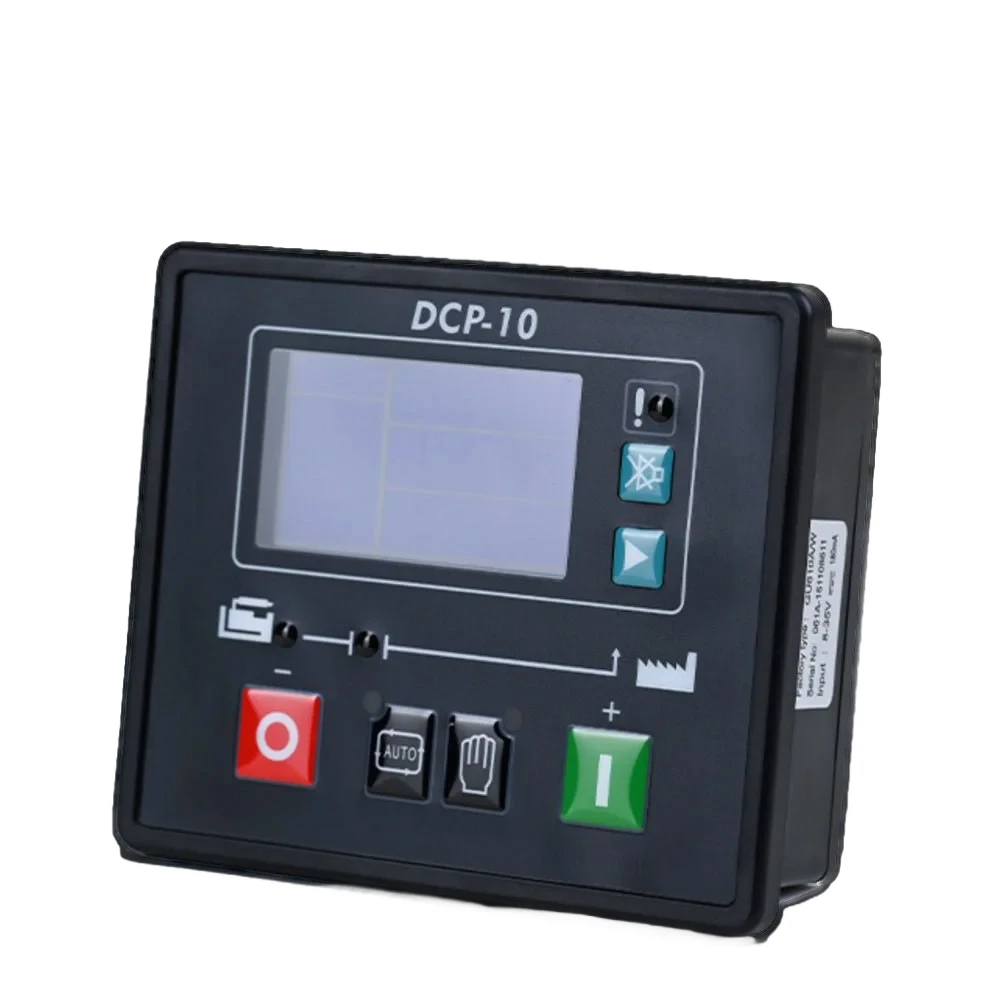

The DCP-10 is a microprocessor-based generator set controller that provides automatic engine start/stop sequencing, AC power monitoring, and alarm protection for single diesel or gas generator units. It integrates digital measurement, programmable logic, and communication interfaces into a single panel-mounted module.
Key Features
- Microprocessor Control — Digital MCU-based module with precise engine start/stop sequencing and generator protection for single diesel/gas generator sets
- True RMS AC Monitoring — Generator and mains voltage, current, frequency, kW, kVA, PF measurement with programmable CT ratios and alarm thresholds
- CANbus J1939 Engine Integration — Direct communication with electronic engine ECUs for parameter display and diagnostic trouble code reading
- Multi-Mode Operation — Manual, automatic, and test modes with configurable transfer sequences and programmable crank/rest cycles

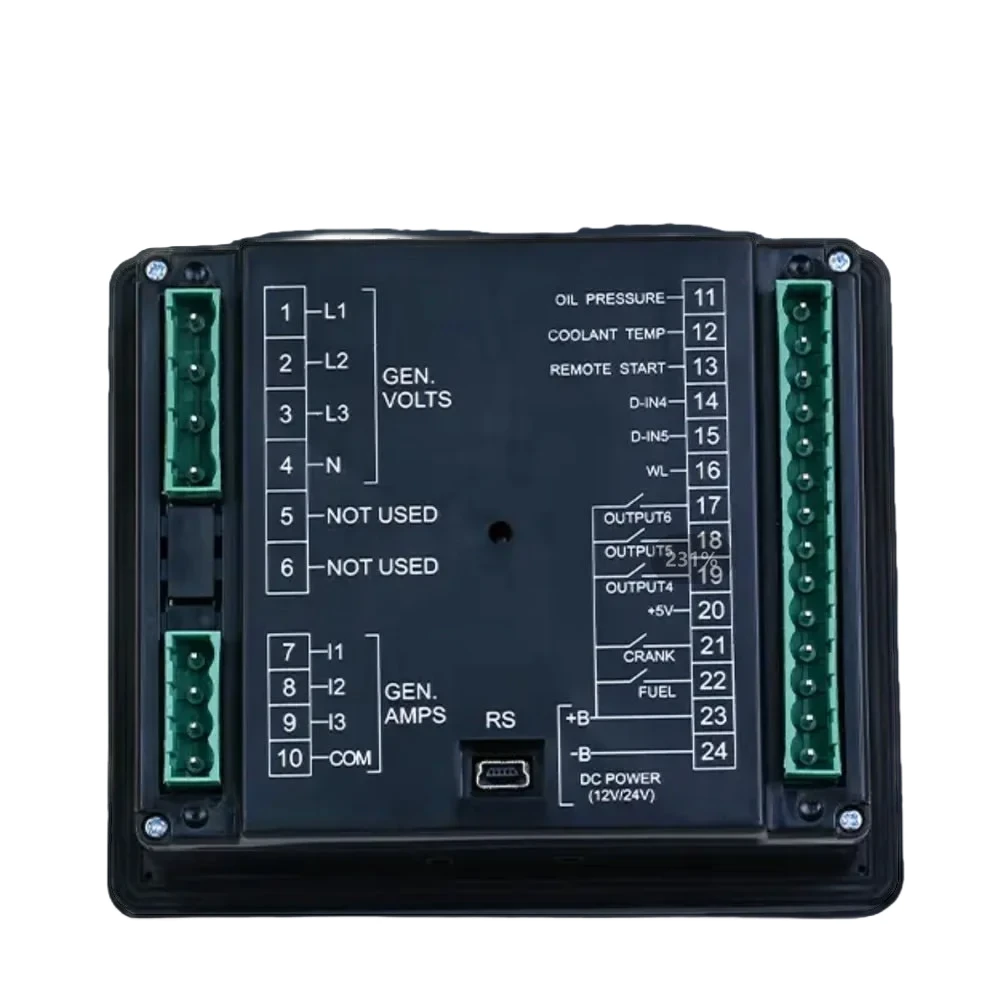

- Flexible I/O — All digital inputs and relay outputs user-configurable for custom applications including pre-heat, ventilation, annunciation, and remote signaling
- Event History — Onboard real-time clock with event log for commissioning, troubleshooting, and maintenance tracking
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DCP-10 |
| Type | Digital Generator Controller |
| DC Supply | 8-35V DC |
| AC Voltage Range | 15-300V L-N |
| Panel Cutout | 160 x 110 x 60 mm |
| Operating Temp | -20°C to +70°C |
| Communication | RS232, MODBUS-RTU |
| Protection Functions | Over/Under Volt, Over/Under Freq, Over Speed, Over Current, Low Oil Press, High Water Temp |
| Display | LCD 128×64 Backlit |
| Frequency | 50/60 Hz Selectable |
Compatibility
DCP-10 is FG Wilson’s OEM auto-start/AMF controller for FG Wilson generator sets 10-500kW. Direct OEM replacement with proprietary FG Wilson interface. Panel cutout: 160×110mm. Compatible with: DCP-10, FG Wilson generator sets only.
Why Choose ZenixPower
- Full-Feature AMF — Automatic mains failure detection, engine start/stop sequencing, and load transfer control

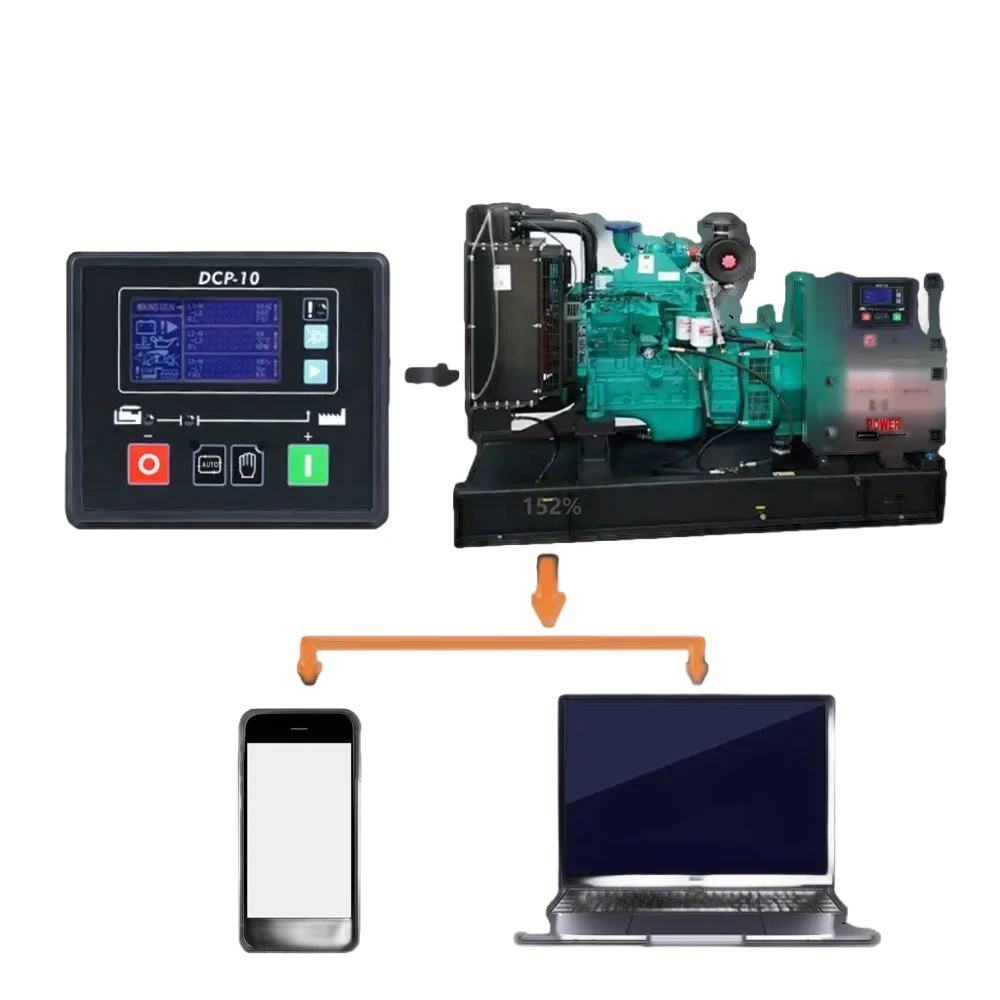

- Multi-Protocol Communication — RS485 Modbus RTU, CAN J1939, and SMS alarm notification for remote monitoring
- Wide DC Supply — Operates from 8V to 35V DC, tolerating cranking voltage drop without reset
- Heavy-Duty Relays — 16A/250VAC rated outputs for fuel, start, and auxiliary control with replaceable relays
- Universal Compatibility — Works with magnetic pickup, alternator sensing, and CAN ECU engine types
- Pre-Configured Files — SmartGen/DSE/ComAp default configurations available to reduce commissioning time
Compatible Generators Single diesel/gas generator sets 10-500kW requiring standard AMF: automatic start on mains failure + automatic stop on mains return.
Competitors DSE3110 (Deep Sea), AMF20 (ComAp), DKG307 (Datakom). All three can independently perform mains detection, auto start/stop, and automatic transfer.
Specification Comparison
| Parameter | DCP-10 | DSE3110 | AMF20 | DKG307 |
|---|---|---|---|---|
| Brand | FG Wilson (UK) | Deep Sea (UK) | ComAp (Czech) | Datakom (Turkey) |
| Function | Auto Start + AMF | AMF | AMF | AMF + CANbus |
| Display | 128×64 backlit LCD | 128×64 LCD | 128×64 LCD | 128×64 graphical LCD |
| Mains Monitoring | 3-phase V/I/f | 3-phase V/I/f | 3-phase | 3-phase |
| CANbus | FG Wilson proprietary | J1939, MTU MDEC | No | J1939 |
| Communication | RS232, MODBUS-RTU | RS485, RS232 | RS232, USB | RS485, USB |
| Digital Inputs | 8 configurable | 6 | 6 | 8 |
| Relay Outputs | 6 configurable | 4 | 4 | 6 |
| Software | FG Wilson Config | DSE Suite (free) | LiteEdit (free) | Rainbow Plus (free) |
| Price | Contact Us | $80-130 | $70-110 | $80-120 |
