Overview

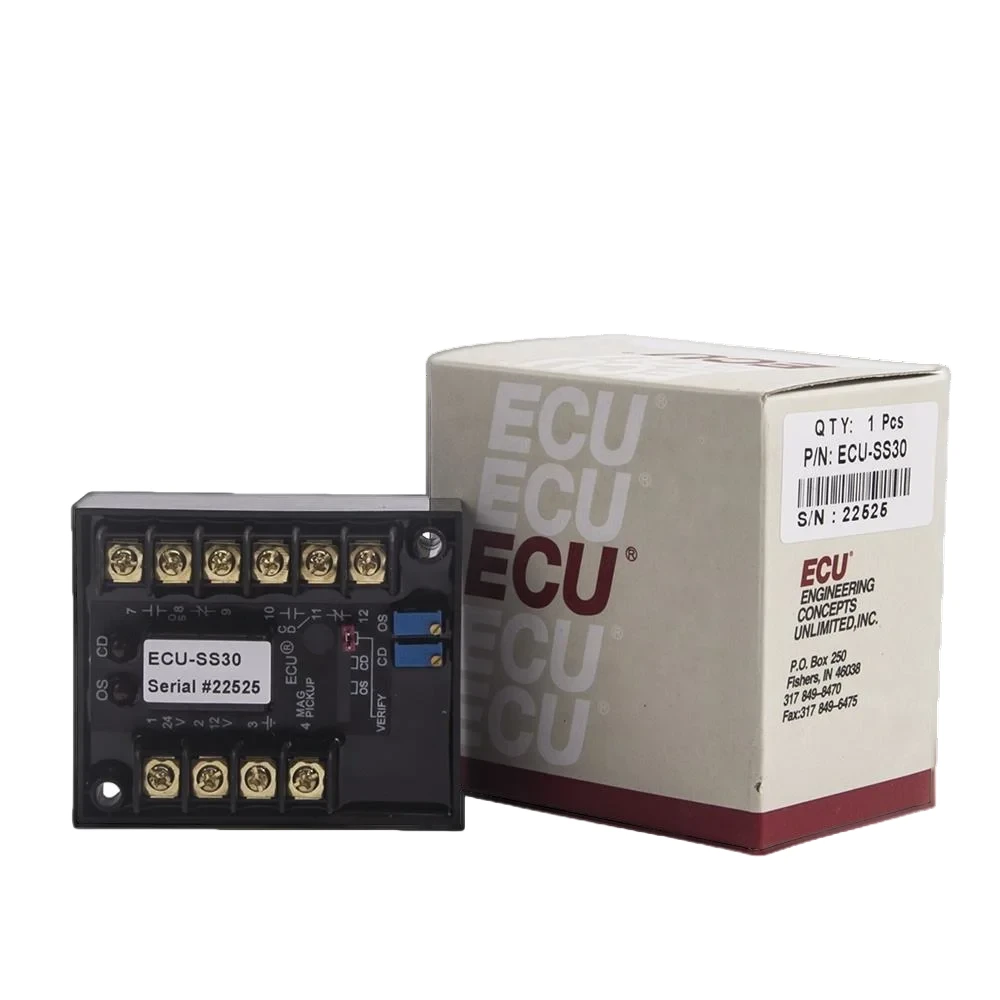

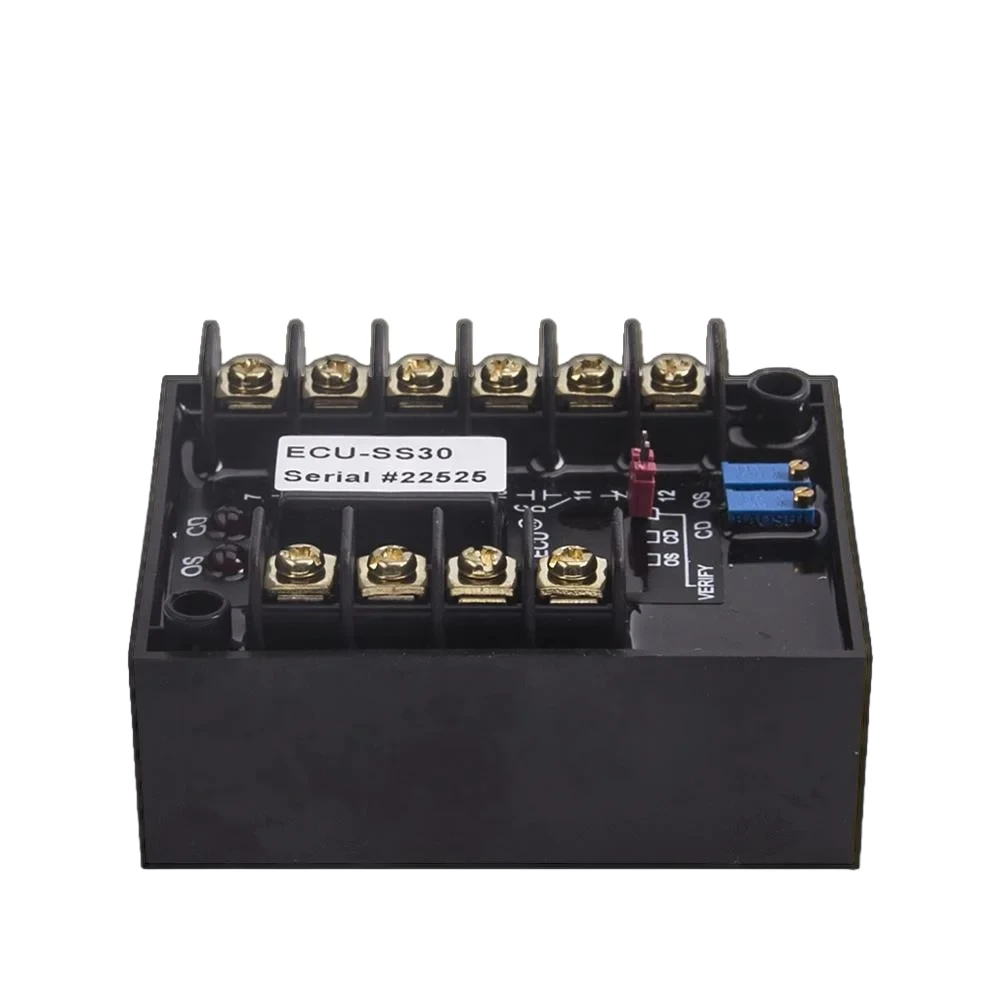

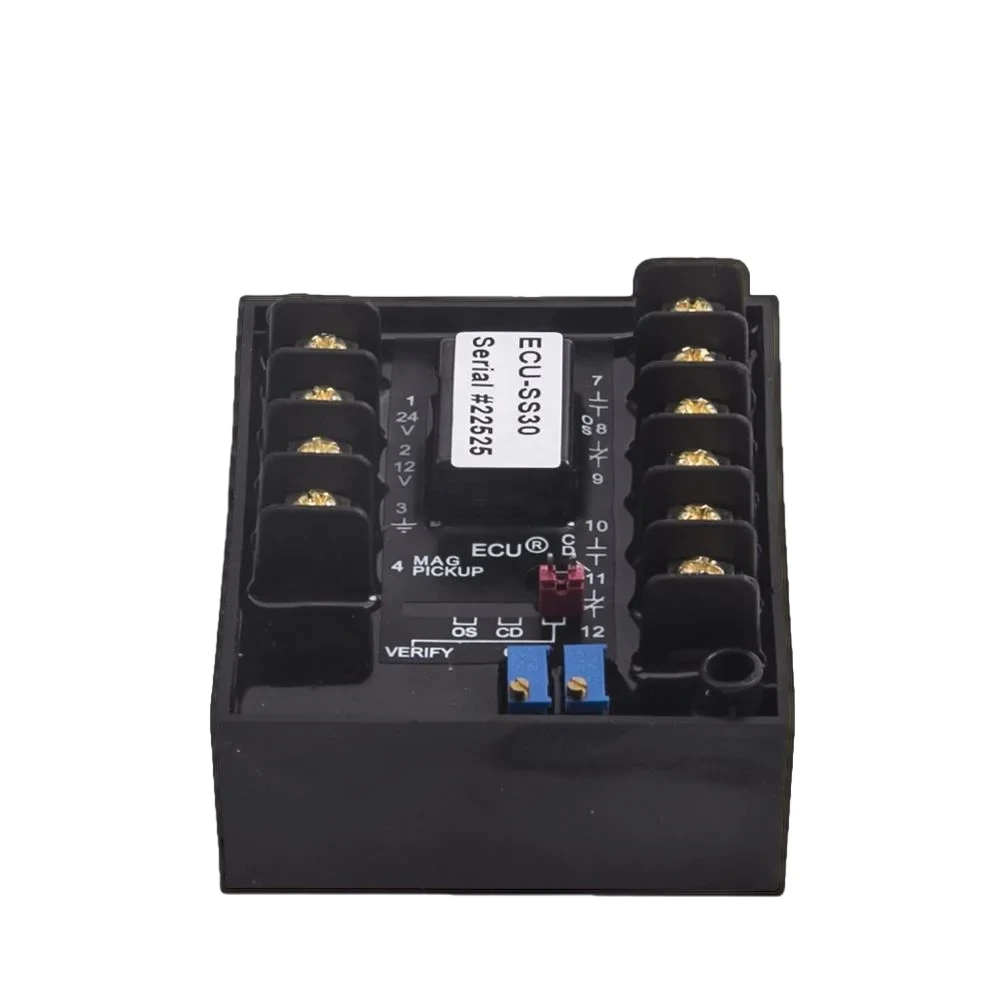

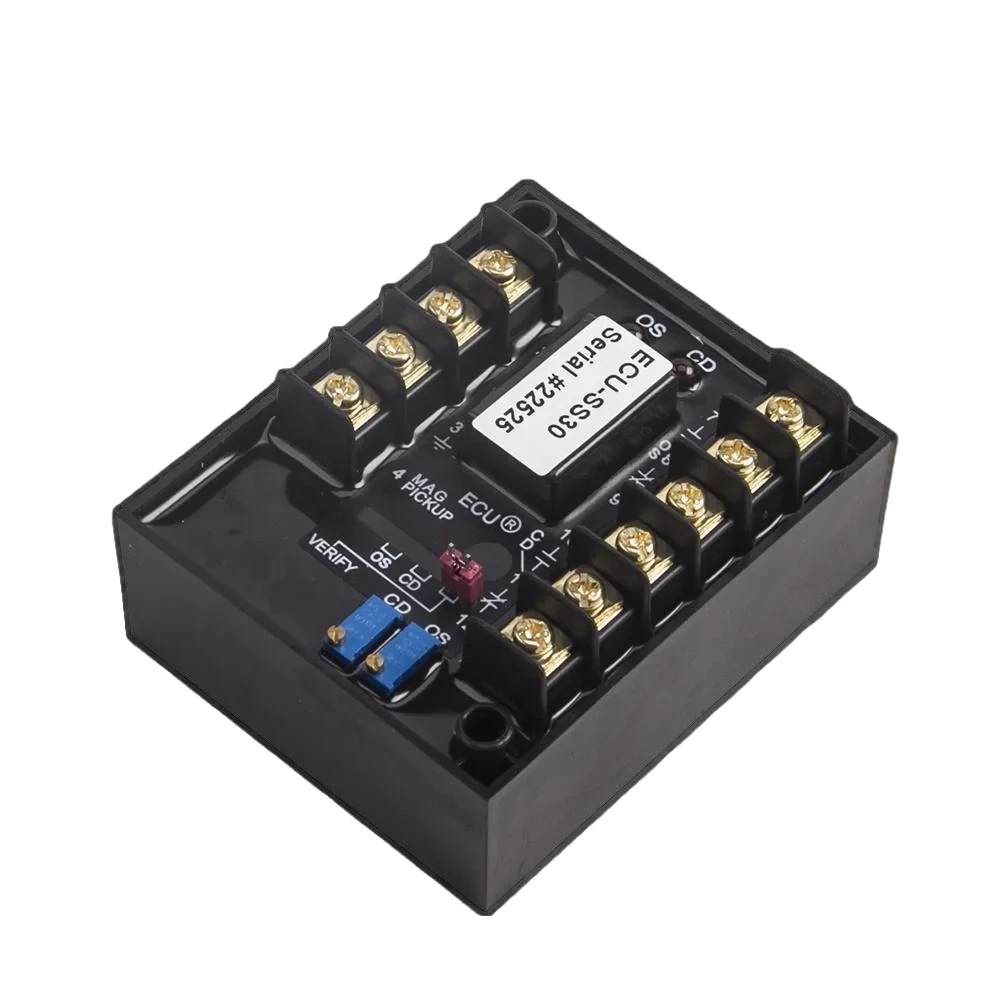

The ECU-SS30 is an engine overspeed protection module designed to monitor engine RPM and trigger an emergency shutdown when speed exceeds the preset threshold. It provides an independent safety layer separate from the primary speed governor, ensuring the engine cannot run away in the event of governor failure, fuel rack jam, or sudden load loss. Widely used in diesel and gas generator sets where overspeed protection is required by safety regulations.
Key Features
- **Independent Overspeed Monitoring** — Separate magnetic pickup input monitors engine RPM independently of the main speed controller
- **Adjustable Trip Threshold** — User-configurable overspeed setpoint via onboard potentiometer
- **Fail-Safe Shutdown Output** — Relay output energizes to run, de-energizes on overspeed for fail-safe fuel cut-off
- **Manual Reset** — Requires manual reset after trip to prevent unattended restart after a safety event

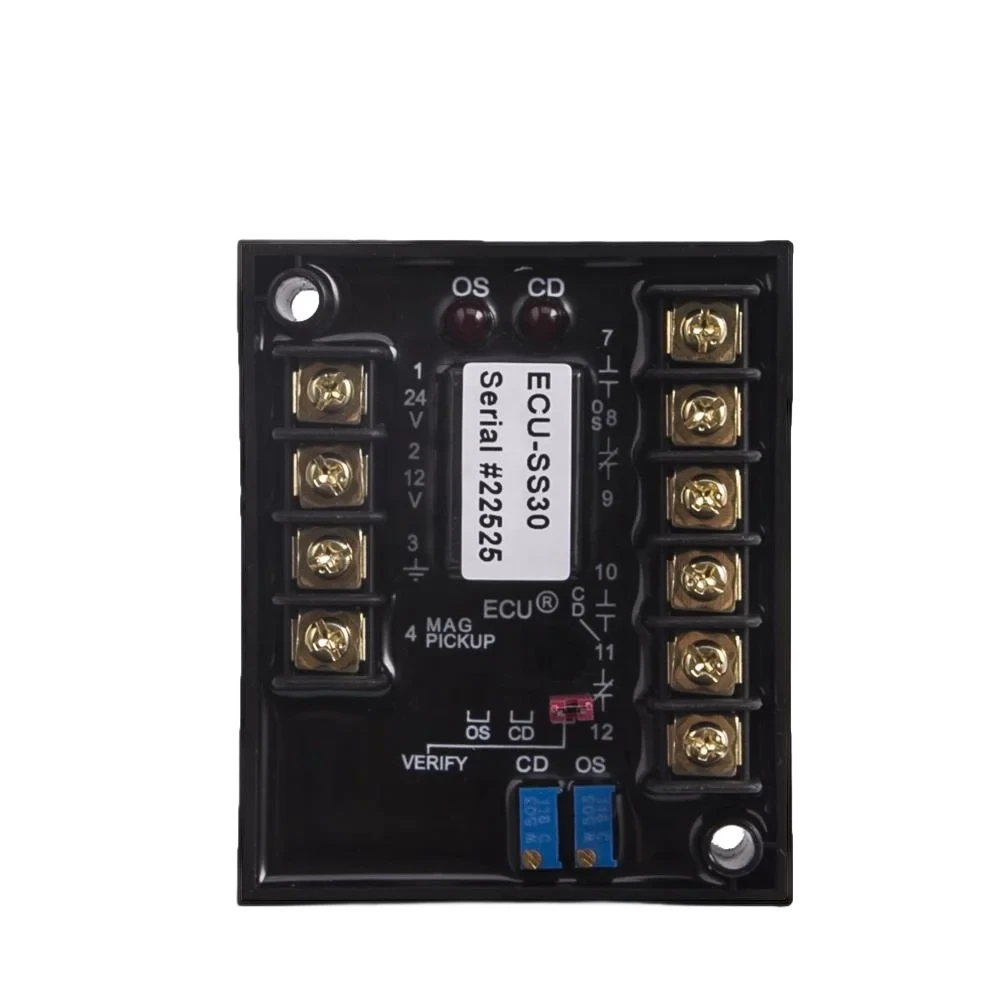

- **LED Status Indication** — Front-panel LED indicates normal operation, overspeed trip, and power status
- **Wide Supply Voltage** — Operates on 12V DC and 24V DC generator battery systems
Technical Specifications
| Parameter | Value |
|---|---|
| ———– | ——- |
| Model | ECU-SS30 |
| Type | Engine Overspeed Protection Module |
| Supply Voltage | 12V DC / 24V DC |
| Speed Sensor Input | Magnetic Pickup (MPU), 0.5-50 VAC |
| Overspeed Trip Output | Relay (NC/NO), 5A @ 30V DC |
| Trip Threshold | Adjustable via potentiometer |
| Reset Method | Manual (push-button or remote reset) |
| Application | Diesel / Gas Generator Engine Safety Shutdown |
Compatibility
Compatible with diesel and gas generator engines using magnetic pickup speed sensors. Works alongside any electronic speed governor (GAC ESD series, Fortrust ESG, Kutai EG, Cummins EFC) as an independent safety layer. Suitable for standby, prime, and continuous power generator applications.
Why Choose ZenixPower
- 100% Factory Tested — Every unit trip-tested at multiple speed thresholds before shipment
- 12-Month Warranty — Full replacement guarantee
- Fast Shipping — In-stock units ship within 24 hours
- Bulk Pricing — Wholesale discounts for generator service companies and distributors
- Technical Support — Engineering team for installation and threshold calibration assistance
Compatible Generators Auxiliary control modules for diesel generator governing systems.
Competitors ECU-SS30 (overspeed protection module), SYC6714 (automatic synchronizer).
