Overview

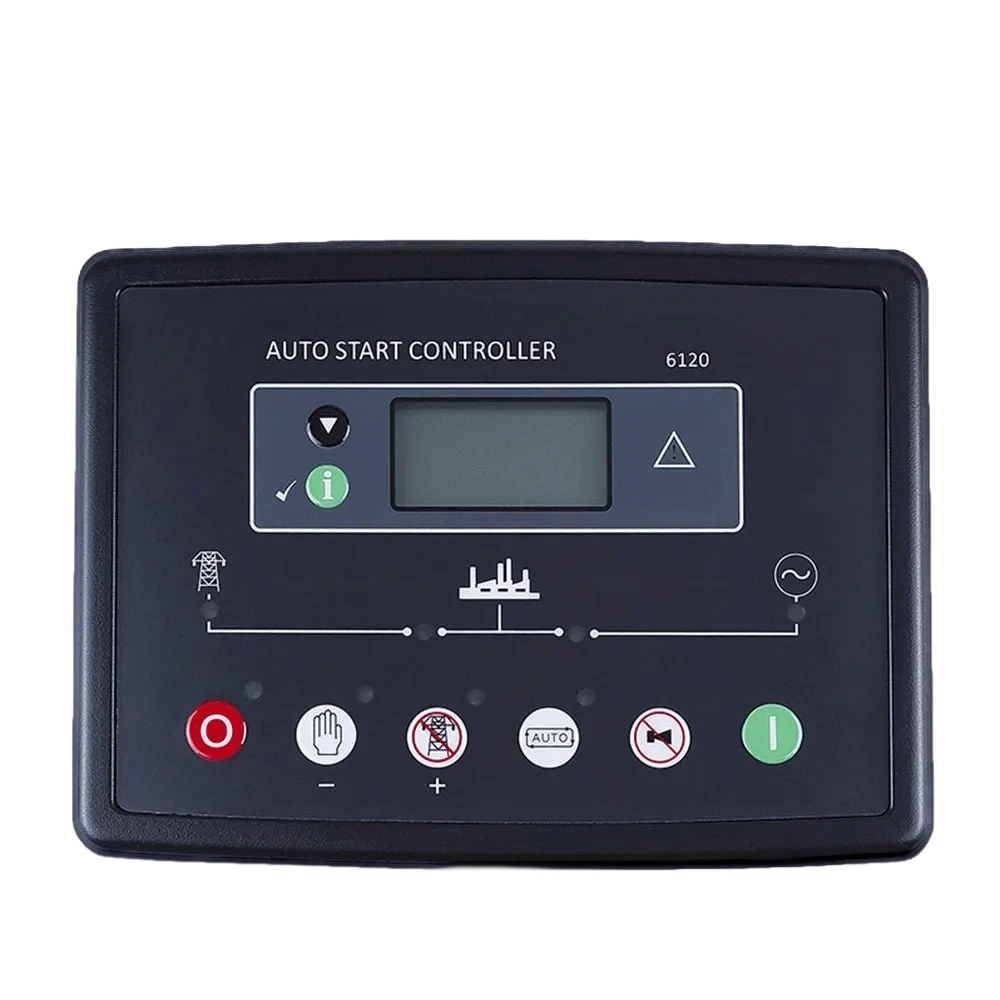

The DSE6120 is a microprocessor-based generator set controller that provides automatic engine start/stop sequencing, AC power monitoring, and alarm protection for single diesel or gas generator units. It integrates digital measurement, programmable logic, and communication interfaces into a single panel-mounted module.
Key Features
- Microprocessor-Based Control — 32-bit ARM processor with real-time operating system for fast response to engine faults and mains failures
- True RMS AC Measurement — Generator voltage (L-L/L-N), current per phase, frequency, power factor, kW, kVA, and kWh metering with CT ratio configuration
- Engine Protection Suite — Configurable alarm and shutdown thresholds for low oil pressure, high coolant temperature, overspeed, underspeed, battery over/under voltage, and charge failure
- CANbus J1939 Engine Support — Direct interface with electronic engine ECUs for parameter monitoring, diagnostic code reading, and ECU configuration access
- Configurable Digital I/O — All inputs and outputs user-programmable for custom functions including remote start, pre-heat, ventilation control, and external alarm inputs
- Event & Maintenance Logging — Onboard event recorder with real-time clock stamping; configurable maintenance scheduler with hour/date-based service reminders
Technical Specifications
| Parameter | Value |
|---|---|
| ———– | ——- |
| Model | DSE6120 |
| Type | Digital Generator Controller |
| Power Supply | DC 8V to 35V Continuous |
| Communication | CAN |
| Function | Auto Mains Failure with Event Log |
| Display | 4.3″ TFT Colour 480×272 |
| Frequency | 50/60 Hz Selectable |
Compatibility
DSE6120 enhances DSE6110 with AMF control and larger LED display, suitable for 20-300kW single generator sets. Panel cutout: 186×137mm. Compatible with: DSE6120, DSE6110, DSE6100 series.
Why Choose ZenixPower
- Full-Feature AMF — Automatic mains failure detection, engine start/stop sequencing, and load transfer control
- Multi-Protocol Communication — RS485 Modbus RTU, CAN J1939, and SMS alarm notification for remote monitoring
- Wide DC Supply — Operates from 8V to 35V DC, tolerating cranking voltage drop without reset
- Heavy-Duty Relays — 2A DC rated outputs for fuel, start, and auxiliary control with replaceable relays
- Universal Compatibility — Works with magnetic pickup, alternator sensing, and CAN ECU engine types
- Pre-Configured Files — SmartGen/DSE/ComAp default configurations available to reduce commissioning time
Compatible Generators Single diesel/gas generator sets 10-500kW requiring standard AMF: automatic start on mains failure + automatic stop on mains return.
Competitors DSE3110 (Deep Sea), AMF20 (ComAp), DKG307 (Datakom). All three can independently perform mains detection, auto start/stop, and automatic transfer.
Specification Comparison
| Parameter | DSE6120 | DSE3110 | AMF20 | DKG307 |
|---|---|---|---|---|
| Brand | Deep Sea (UK) | Deep Sea (UK) | ComAp (Czech) | Datakom (Turkey) |
| Function | Auto Mains Failure with Event Log | AMF | AMF | AMF + CANbus |
| Display | LED + 4-line LCD | 128×64 LCD | 128×64 LCD | 128×64 graphical LCD |
| Mains Monitoring | No | 3-phase V/I/f | 3-phase | 3-phase |
| CANbus | J1939 | J1939, MTU MDEC | No | J1939 |
| Communication | CAN | RS485, RS232 | RS232, USB | RS485, USB |
| Digital Inputs | 6 configurable | 6 | 6 | 8 |
| Relay Outputs | 4 configurable | 4 | 4 | 6 |
| Software | DSE Suite (free) | DSE Suite (free) | LiteEdit (free) | Rainbow Plus (free) |
| Price | Contact Us | $80-130 | $70-110 | $80-120 |
